RZ10X adding a RZDSP-M card for iCon or similar
To install your new RZDSP-M card and discontinue use of the optics on the RZDSP-P Card:
1) Unplug the RZ10X from wall power.
2) Remove the RZ lid by removing the 14 Philips screws holding it in place. Be sure you use a well-fitting screwdriver for
this step. If you strip these screws, they will need to be drilled out by TDT.

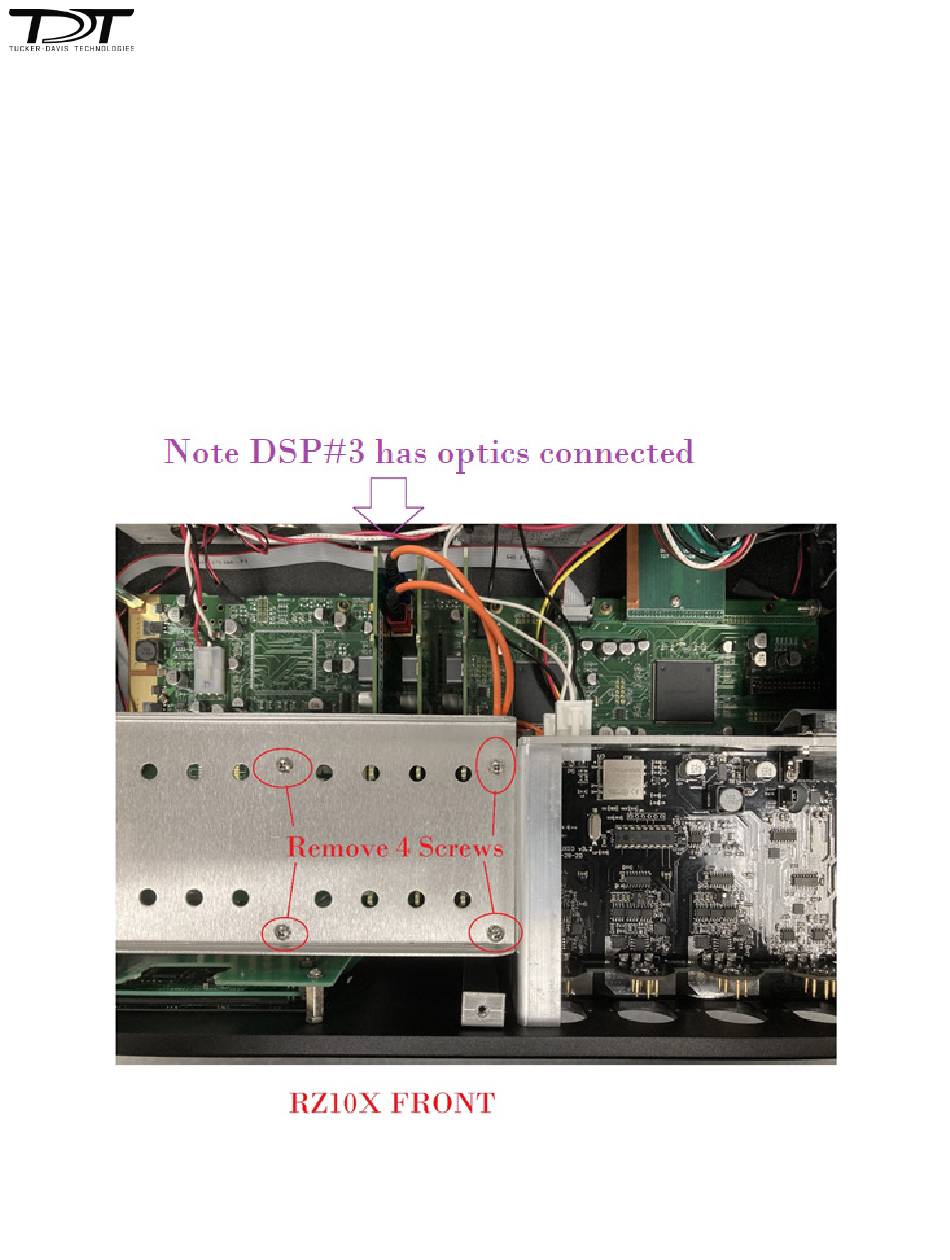

3) A stock RZ10X will have 3 DSPs installed, the third DSP will have optics connected to the front of the RZ. Note these
optics marked below in purple. To add the RZDSP-M card, remove the four screws marked below in red. Be sure to
retain the screws and star washers under them for use later. Also remove the metal plate holding the DSPs in place.
TDT RZDSP-M Card Addition in RZ10X
Page 1
Advertisement
Related Manuals for TDT RZDSP-M
Summary of Contents for TDT RZDSP-M
- Page 1 3) A stock RZ10X will have 3 DSPs installed, the third DSP will have optics connected to the front of the RZ. Note these optics marked below in purple. To add the RZDSP-M card, remove the four screws marked below in red. Be sure to retain the screws and star washers under them for use later.
- Page 2 Red and Blue connectors from the DSP and put the DSP back in it’s original position. 5) Put the optics back in the new RZDSP-M card with the blue connector toward the rear and the red connector toward the front. Your configuration should be as shown below. Your RZDSP-M card is now connected to the front port on the RZ10X.
