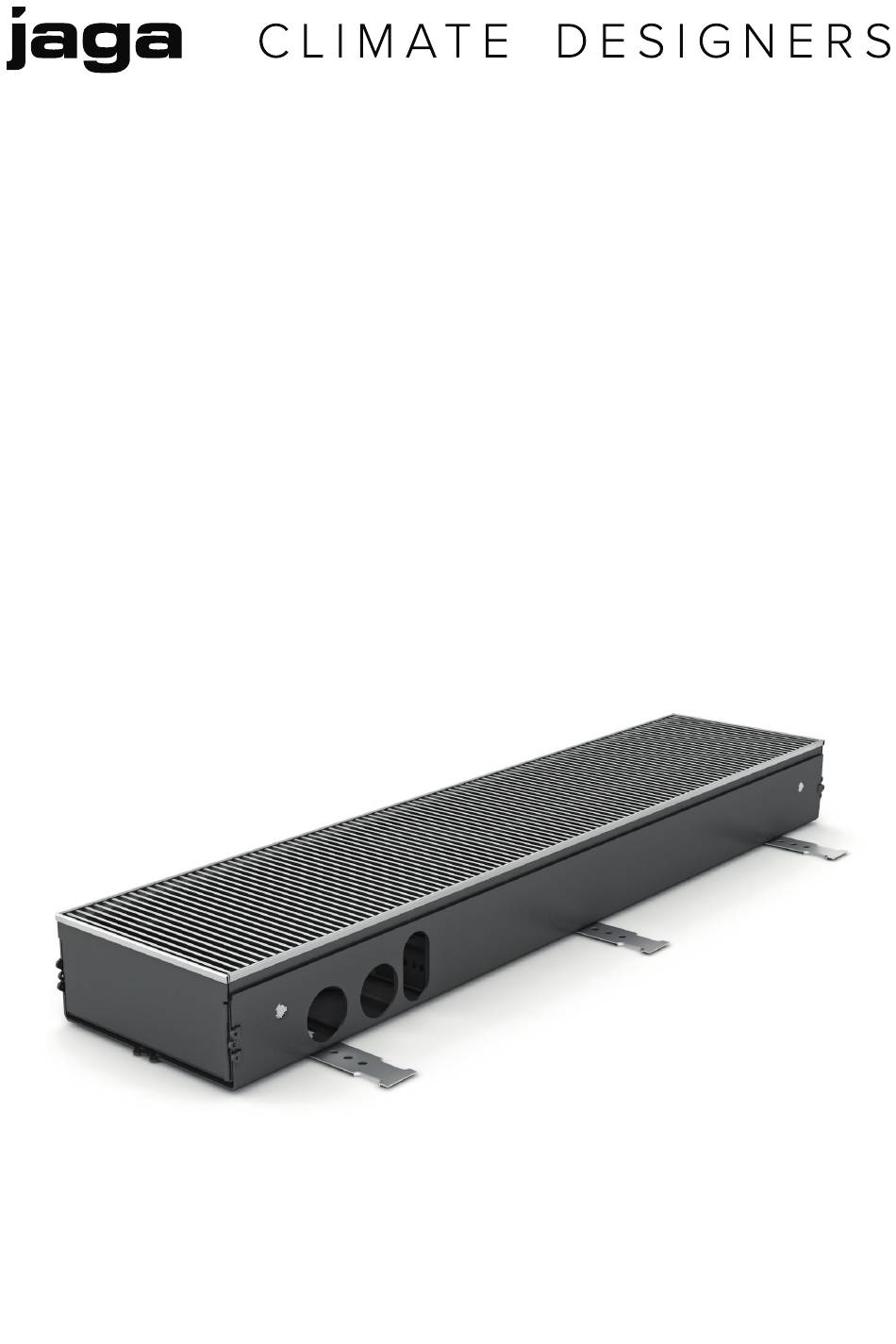

- Page 1 MICRO CANAL MANUAL...
- Page 2 JAGA N.V. - Verbindingslaan 16 - b 3590, verklaart hierbij op eigen exclusieve verantwoordelijkheid dat het product waarop deze betrekking heeft: CEO JAGA N.V. Conform is met de normen of andere documenten op voorwaarde dat ze worden gebruikt overeenkomstig onze...
-
Page 3: Table Of Contents
– Maintenance has been carried out by unauthorized people. – Access to the unit has been restricted due to on-site conditions. this device is covered by the general warranty conditions of Jaga NV.Jaga N.V. can therefore never be held liable for any consequential damage. -
Page 4: Product Description
Micro Canal can be integrated into any interior. by making use of the latest EC-motors, the Micro canals use 50% less power. Operational limits: Installation that does not comply with the specified operational limits relieves Jaga NV from discharge liabilities with regard to damage to objects and persons. – Max. water temperature: 90°C – ... -
Page 5: Technical Data
Min. ⁄ / Max. ⁄ 2.4. OPTION: ADJUSTABLE RAISED FLOOR PEDESTALS 2 ⁄ Max. ⁄ Min. 4 ⁄ / Max. 14 ⁄ Min. 1 ⁄ / Max. 11 ⁄ JAGA N.V. | MICRO CANAL | MANUEL | 25 OktObER 2024, 11:25 | V.03... -
Page 6: Max Cable Length - 24 Vdc Electrical Connection
17 AWG MICRO CANAL 16 AWG L130 14 AWG 17 AWG MICRO CANAL 16 AWG L165 14 AWG 17 AWG MICRO CANAL 16 AWG L200 14 AWG JAGA N.V. | MICRO CANAL | MANUEL | 25 OktObER 2024, 11:25 | V.03... -
Page 7: Installation
Make sure that the units are positioned correctly and that the casings fit tightly. Use the supplied connecting pieces to connect the different units. JAGA N.V. | MICRO CANAL | MANUEL | 25 OktObER 2024, 11:25 | V.03... - Page 8 If screed is used the device needs to be completely insulated in Remove the protective block and the connecting pieces. order to protect the device from voltage differences. JAGA N.V. | MICRO CANAL | MANUEL | 25 OktObER 2024, 11:25 | V.03...
- Page 9 Remove plug at hydronic connection. Use a back wrench when fastening the hydronic connections Connect the flexibles to the coil’s supply and return connections. Flexibles supplied by others. JAGA N.V. | MICRO CANAL | MANUEL | 25 OktObER 2024, 11:25 | V.03...
- Page 10 [+] and [-] need to be connected to the unit’s electrical connectionel. Always use the main switch to disconnect the power to the fan! Place the grille and put the finishing touches. JAGA N.V. | MICRO CANAL | MANUEL | 25 OktObER 2024, 11:25 | V.03...
- Page 11 NOTE JAGA N.V. | MICRO CANAL | MANUEL | 25 OktObER 2024, 11:25 | V.03...
- Page 12 Jaga Canada Climate Systems www.jaga-canada.com oktober 25, 2024 11:25 a.m. - Jaga Inc.
