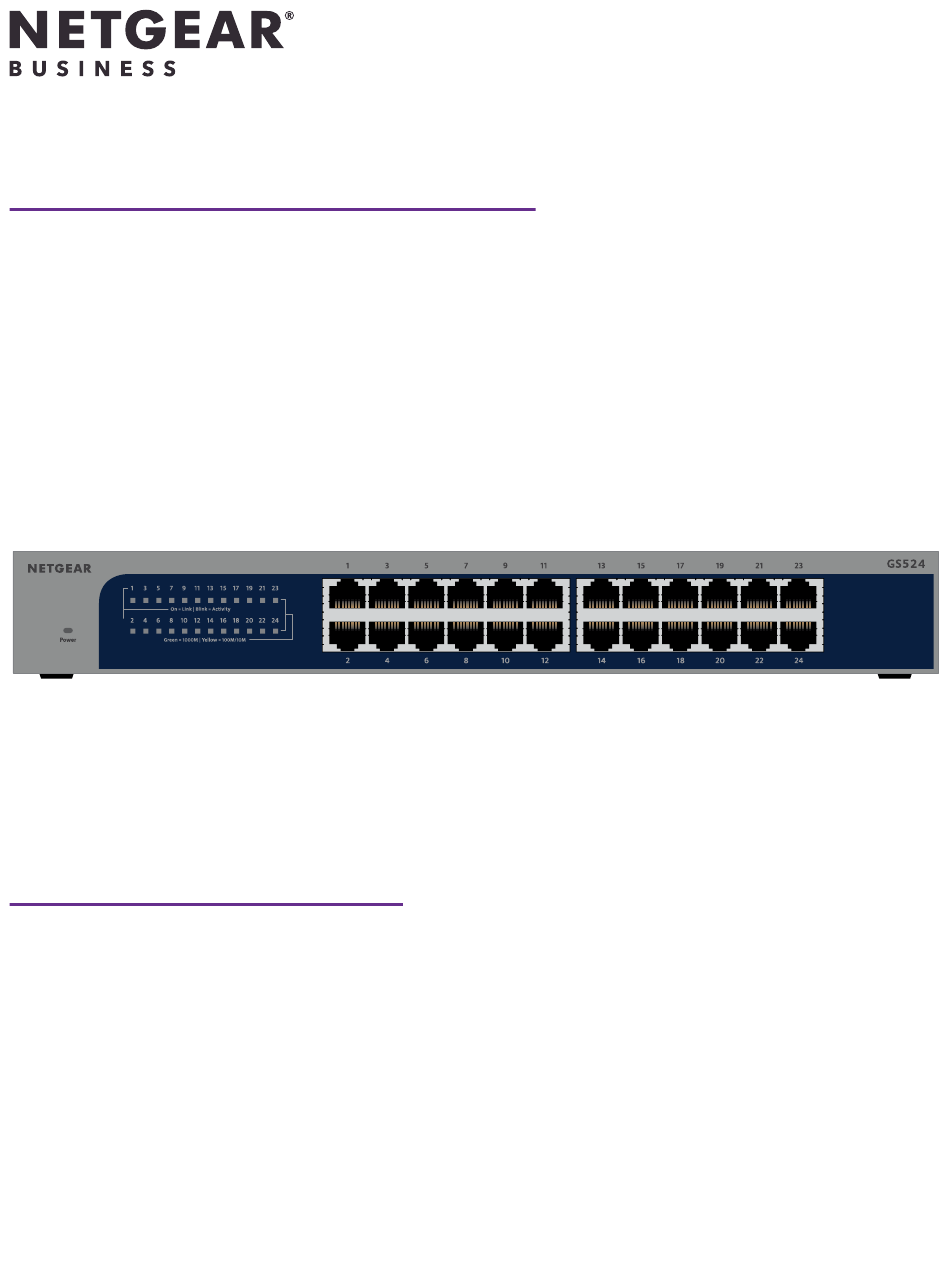

Installation Guide
24-port Gigabit Ethernet
Unmanaged Switch
Model GS524v3
Package contents
NETGEAR 24-port Gigabit Ethernet Unmanaged Switch Model GS524v3
Power cord (varies by region)
Wall-mount installation kit
Rack-mount brackets and screws
Rubber feet
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS524v3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NETGEAR GS524v3

  • Page 1 Installation Guide 24-port Gigabit Ethernet Unmanaged Switch Model GS524v3 Package contents • NETGEAR 24-port Gigabit Ethernet Unmanaged Switch Model GS524v3 • Power cord (varies by region) • Wall-mount installation kit • Rack-mount brackets and screws • Rubber feet • Installation Guide...
  • Page 2: Register The Switch

    1. From a computer or mobile device that is connected to the Internet, visit my.netgear.com. 2. Log in to your NETGEAR account. NOTE: If you don’t have a free NETGEAR account, you can create one. The Your Registered Products page displays. 3. Click the REGISTER NEW PRODUCT button.
  • Page 3: Check The Leds

    Failure to do so can damage the switch. WARNING: Before connecting this switch to outdoor cables or devices, see https://kb.netgear.com/000057103 for safety and warranty information. 3. Check the LEDs When you connect the power cord to the switch and plug the cord into an...
  • Page 4 Attach the switch to a wall To attach the switch to a wall, you need the wall-mount screws that are supplied with the switch. The screws are 0.25 in. (6.3 mm) in diameter, 1 in. (27 mm) in length. NOTE: The switch is designed to be mounted horizontally. Do not mount it vertically.
  • Page 5: Technical Specifications

    Technical specifications Specification Description Network interfaces RJ-45 connectors that support 1000BASE-T, 100BASE-TX, and 10BASE-T Ports 24 Gigabit Ethernet Network cable We recommend that you use Category 5e (Cat 5e) cables or higher rated cables for Gigabit Ethernet connections. AC power input 100~240V, 50/60Hz, 0.7A Maximum power consumption Hardware security...
  • Page 6 See the regulatory compliance document before connecting the power supply. For NETGEAR’s Privacy Policy, visit https://www.netgear.com/about/privacy-policy. By using this device, you are agreeing to NETGEAR’s Terms and Conditions at https://www.netgear.com/about/terms-and-conditions. If you do not agree, return the device to your place of purchase within your return period.
