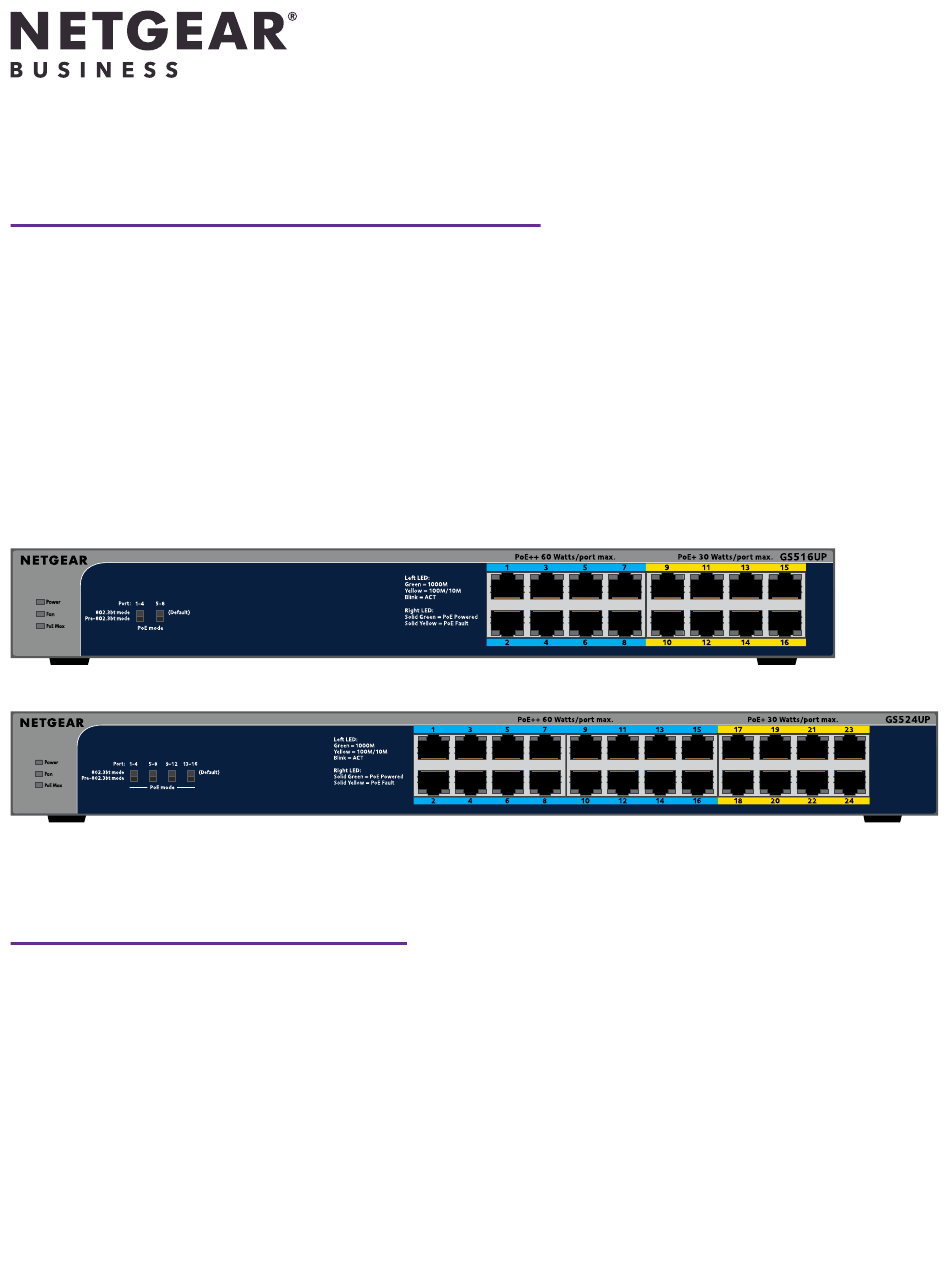

Installation Guide
16-Port and 24-Port Gigabit Ethernet
Ultra60 PoE++ Unmanaged Switch

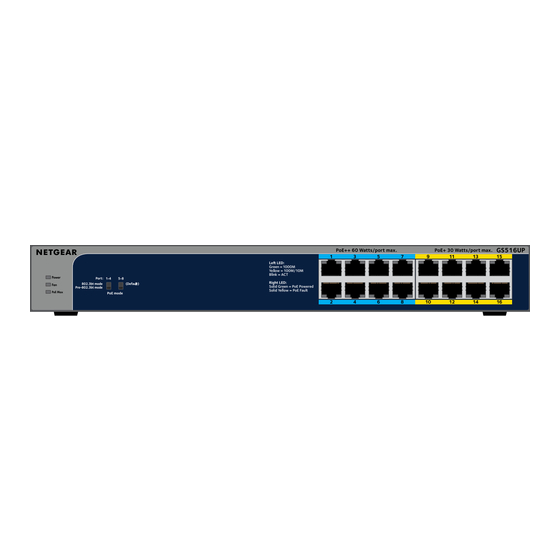

Model GS516UP
Model GS524UP
Package contents
•
Switch model GS516UP or GS524UP
•
Power cord (varies by region)
•
Rack-mount kit
•
Four rubber feet
•
Installation guide and Insight flyer
We recommend that you use a Category 5e (Cat 5e) cable or higher-rated cable
for Gigabit Ethernet connections.
Advertisement
Related Manuals for NETGEAR GS516UP
Summary of Contents for NETGEAR GS516UP
- Page 1 Installation Guide 16-Port and 24-Port Gigabit Ethernet Ultra60 PoE++ Unmanaged Switch Model GS516UP Model GS524UP Package contents • Switch model GS516UP or GS524UP • Power cord (varies by region) • Rack-mount kit • Four rubber feet • Installation guide and Insight flyer We recommend that you use a Category 5e (Cat 5e) cable or higher-rated cable for Gigabit Ethernet connections.
- Page 2 From a computer or mobile device that is connected to the Internet, visit my.netgear.com. Log in to your NETGEAR account. NOTE: If you don’t have a free NETGEAR account, you can create one. The My Products page displays. From the menu on the left, select Register a Product.
- Page 3 2. Connect the switch Model GS516UP provides PoE++ (802.3bt) power on ports 1–8 with up to 60W to each port and PoE+ (802.3at) power on ports 9–16 with up to 30W to each port. The total PoE power budget for the switch is 380W across all active PoE ports.
- Page 4 3. Check the LEDs When you connect the power cord to the switch and plug it into an electrical outlet, the LEDs indicate the status. Description Solid green. The switch is powered on and operating Power normally. Off. Power is not supplied to the switch. Off.
- Page 5 PoE mode The DIP switches on the front panel let you to select the following PoE++ modes: • 802.3bt mode. The mode for devices that are fully compliant with IEEE 802.3bt (PoE++). This is the default mode for all PoE++ ports. •...
- Page 6 PoE considerations The PoE power that the switch supplies to powered devices (PDs) is prioritized in ascending port order. If the power requirements for the attached PDs exceed the total power budget of the switch, the PD on the highest-numbered port is disabled to make sure that the PDs connected to the higher-priority, lower- numbered ports are supported first.
- Page 7 PoE troubleshooting Here are some tips for correcting PoE problems that might occur: • If the PoE Max LED is solid yellow, disconnect one or more PoE devices to prevent PoE oversubscription. • For each powered device (PD) that is connected to the switch, the associated PoE LED on the switch lights solid green.
- Page 8 Tighten the screws with a No. 2 Phillips screwdriver to secure mounting brackets to the rack. Technical specifications Specification Model GS516UP Model GS524UP RJ-45 ports 16 Gigabit Ethernet for 1 Gbps, 24 Gigabit Ethernet for 1 100 Mbps, and 10 Mbps.
- Page 9 See the regulatory compliance document before connecting the power supply. For NETGEAR’s Privacy Policy, visit netgear.com/about/privacy-policy/. By using this device, you are agreeing to NETGEAR’s Terms and Conditions at netgear.com/about/terms-and-conditions. If you do not agree, return the device to your place of purchase within your return period.
