Installation Guide

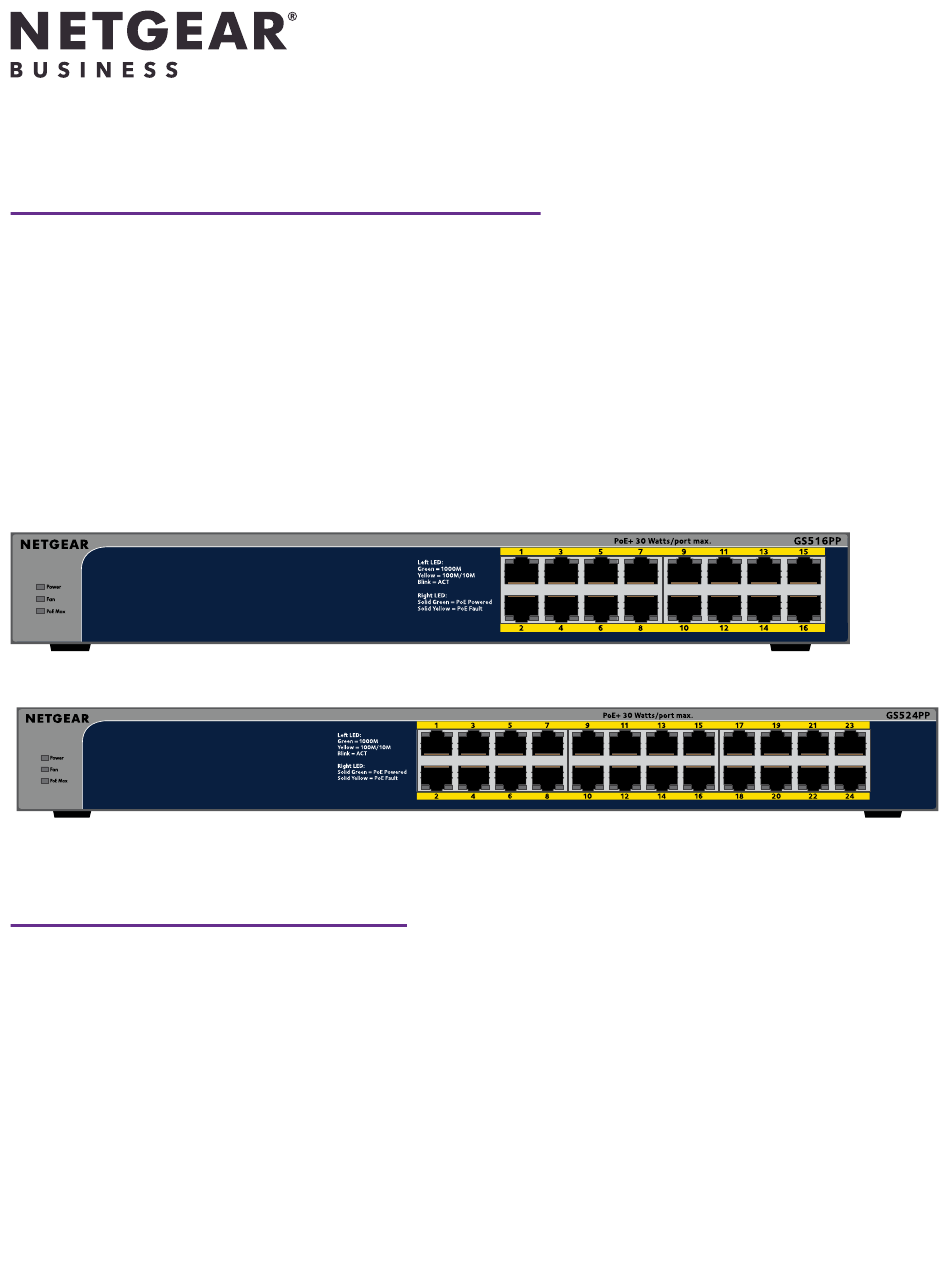

16-Port and 24-Port Gigabit Ethernet
High-Power PoE+ Unmanaged Switch
Model GS516PP
Model GS524PP
Package contents
•
Switch model GS516PP or GS524PP
•
Power cord (varies by region)
•
Rack-mount kit
•
Four rubber feet
•
Installation guide and Insight flyer
NOTE: We recommend that you use a Category 5e (Cat 5e) cable or higher-
rated cable for Gigabit Ethernet connections.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NETGEAR GS516PP
Summary of Contents for NETGEAR GS516PP
- Page 1 Installation Guide 16-Port and 24-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch Model GS516PP Model GS524PP Package contents • Switch model GS516PP or GS524PP • Power cord (varies by region) • Rack-mount kit • Four rubber feet • Installation guide and Insight flyer NOTE: We recommend that you use a Category 5e (Cat 5e) cable or higher- rated cable for Gigabit Ethernet connections.
-
Page 2: Register The Switch
From a computer or mobile device that is connected to the Internet, visit my.netgear.com. Log in to your NETGEAR account. NOTE: If you don’t have a free NETGEAR account, you can create one. The My Products page displays. From the menu on the left, select Register a Product. -
Page 3: Connect The Switch
2. Connect the switch Model GS516PP provides PoE+ (802.3at) power on all 16 Gigabit Ethernet ports, with up to 30W to each port. The total PoE power budget for the switch is 260W across all active PoE ports. Model GS524PP provides PoE+ (802.3at) power on all 24 Gigabit Ethernet ports, with up to 30W to each port. -
Page 4: Check The Leds
3. Check the LEDs When you connect the power cord to the switch and plug it into an electrical outlet, the LEDs indicate the status. Description Solid green. The switch is powered on and operating Power normally. Off. Power is not supplied to the switch. Off. -
Page 5: Poe Considerations
PoE considerations The PoE power that the switch supplies to powered devices (PDs) is prioritized in ascending port order. If the power requirements for the attached PDs exceed the total power budget of the switch, the PD on the highest-numbered port is disabled to make sure that the PDs connected to the higher-priority, lower- numbered ports are supported first. - Page 6 PoE troubleshooting Here are some tips for correcting PoE problems that might occur: • If the PoE Max LED is solid yellow, disconnect one or more PoE devices to prevent PoE oversubscription. • For each powered device (PD) that is connected to the switch, the associated PoE LED on the switch lights solid green.
-
Page 7: Technical Specifications
Tighten the screws with a No. 2 Phillips screwdriver to secure mounting brackets to the rack. Technical specifications Specification Model GS516PP Model GS524PP RJ-45 ports 16 Gigabit Ethernet for 1 Gbps, 24 Gigabit Ethernet for 100 Mbps, and 10 Mbps. - Page 8 See the regulatory compliance document before connecting the power supply. For NETGEAR’s Privacy Policy, visit netgear.com/about/privacy-policy/. By using this device, you are agreeing to NETGEAR’s Terms and Conditions at netgear.com/about/terms-and-conditions. If you do not agree, return the device to your place of purchase within your return period.
