Summary of Contents for Meva Circo

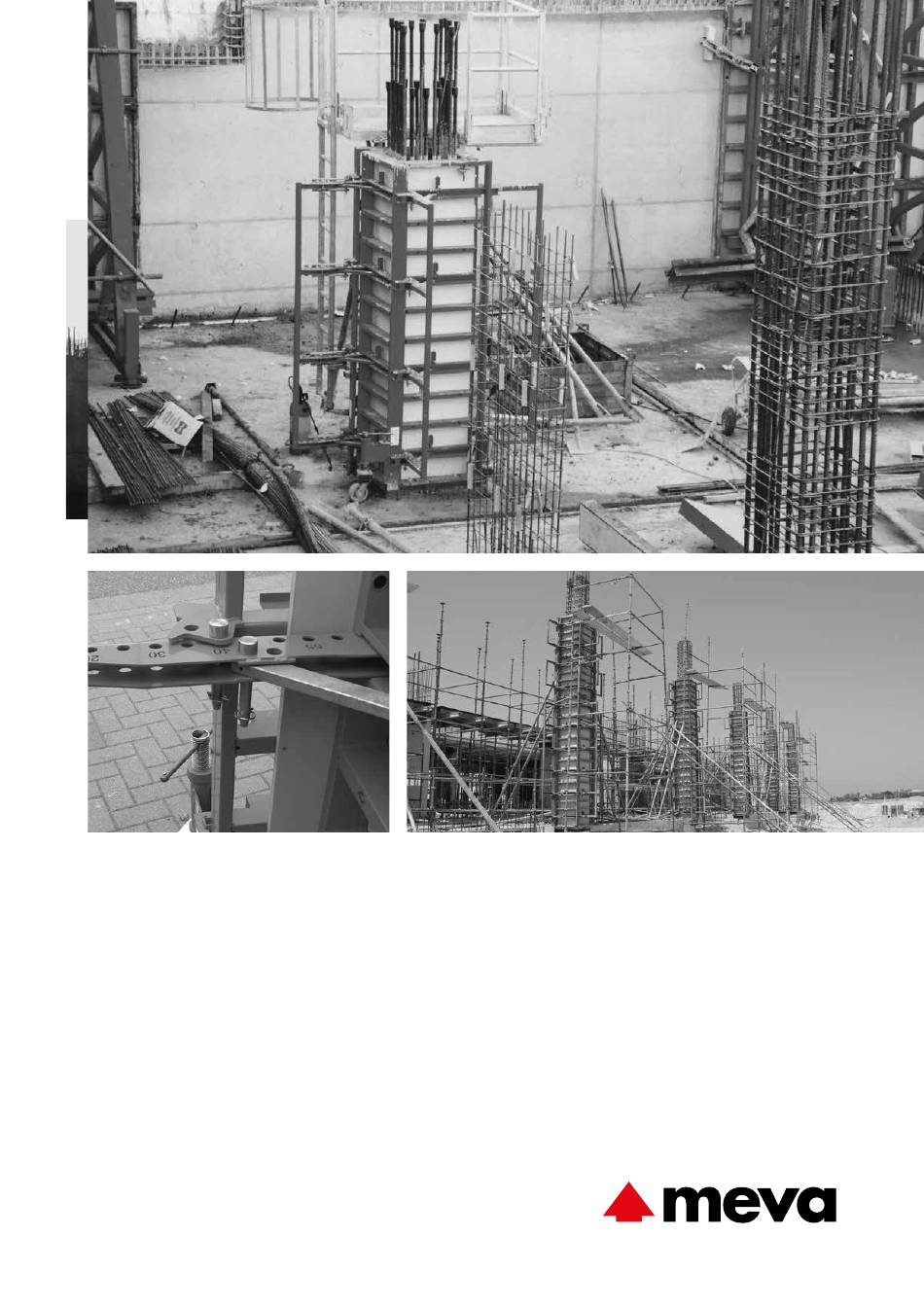

- Page 1 Circo Technical Instruction Manual...
- Page 2 1,5 means 1 and a half. The product components must be checked visually for damage before The page numbers in this manual start with CIRCO. The figures and assemling and using them. tables are numbered per page. Depending on its product abbrevia-...
-
Page 3: Table Of Contents
Contents These Technical Instruction Manual contains information, instruc- Product overview ................4 tions and hints describing how to use the MEVA equipment on the Storage and transport ............... 5 construction site in a proper, quick and economic way. Most exam- Assembly –... -
Page 4: Product Overview
Circular Column Formwork Circo Product overview Circular column formwork Circo Ø 25–80 cm Circo platform for the circular column formwork Ø 25–80 cm Circo scaffolding bracket Circo railing Brace frame Foldable protection (back) ... -
Page 5: Storage And Transport
Circular Column Formwork Circo Storage and transport The circular column panels can be stacked as shown in Fig. 5.1. This kind of storage protects the panel facing as much as possible from the weather. The panels are stacked and transported in pairs of 2 semi- circular halves per stacking racks. -
Page 6: Assembly - Basic Column Formwork Unit
The circular column formwork with standard height requires the following parts: Ref. No. Description Quantity Weight 29-415-10 Circo platform 95,0 kg 29-415-20 Circo scaffolding bracket 17,0 kg 29-415-25 Circo railing 4,5 kg 29-109-25 Brace frame 250 without connector 28,0 kg 29-401-10... - Page 7 T-section to the scaffolding bracket. 5. Fold the platform's back protection and lateral protec- tion up and plug both Circo railings to the Circo platform. 6. Attach 2-rope crane slings to the lateral brackets of the Fig.
-
Page 8: Assembly - Extension Panels
We also recommend adding the extension panels at the bottom of the existing cir- cular formwork unit. This way, the Circo platform does not need to be detached from and re-attached to the formwork unit (Fig. 8.2). 1. Remove the screws. -
Page 9: Assembly - Close The Formwork
Assembly – Close the formwork The formwork cannot be closed unless the assembled and erected semi-circular column half (see p. CIRCO-7) stands solid and stable on the ground 1. Lift the second semi-circular column half with a crane next to the erected semi-circular column half (Fig. -
Page 10: Assembly - Round Stop-Ends
For walls up to 60 cm thick, the M assembly lock is used to connect the Circo and wall formwork panels (Fig. 10.1 and 10.2). If the wall is 65 cm thick or thicker, use the transition lock Circo-Mammut to connect the panels (Fig. -
Page 11: Assembly Locks - Required Quantity And Spacing
Circular Column Formwork Circo Assembly locks – Required quantity and spacing The number of the required M assembly locks depends on the formwork height and column diameter, see figures 11.1 und 11.2. The maximum load is 120 kN/m². Column diameter Column diameter Ø... -
Page 12: Assembly Locks - Formwork Examples
Circular Column Formwork Circo Assembly locks – Formwork examples Please note The fresh concrete pressure is Column diameter higher at the bottom of the col- Ø 25–50 cm umn than at the top. This is why more assembly locks are required... -
Page 13: Access To The Circo Platform
(custom- tailored on-site solution). Please note The above regulations are valid for Germany. If you use the Circo column formwork and platform outside Germany, please make sure you observe the local regu- lations as set out by local law. -
Page 14: Disassembly
Circular Column Formwork Circo Disassembly 1. Attach 2-rope crane slings to the second semi-circular column half (the one without the plat- form and bracing). Tension the crane slings and remove all M assembly locks (Fig. 14.1). 2. Force the semi-circular columns halves apart with a wooden wedge. -
Page 15: Services
We also give prospective customers the chance to test MEVA formwork so they can see its benefits for themselves in actual use. RentalPlus Since MEVA started the flat... - Page 16 Circular Column Formwork Circo Notes ........
