Summary of Contents for Meva FormSet

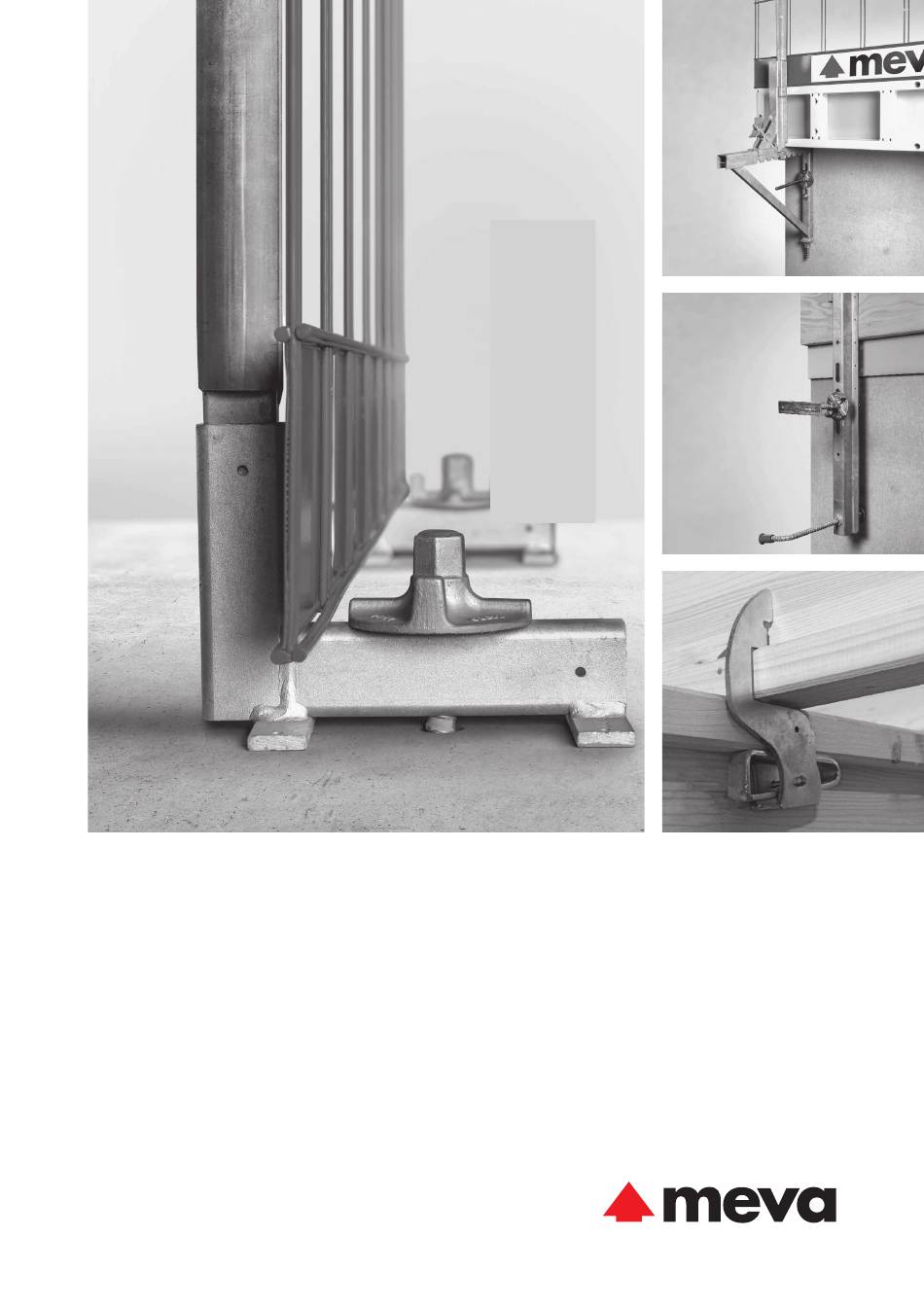

- Page 1 MEVA FormSet Technical Instruction Manual...
- Page 2 The abbreviation MFS is used for the MEVA FormSet systems. The stop-end rail is used together with the anchor sleeve and the DW 15 tie rod for slabs up to 60 cm thick. For the spacing of the stop- DIN means Deutsche Industrie-Norm (German Industrial Standard).
-
Page 3: Table Of Contents
Please observe the assembly instructions that your local contractor or Anchoring system – Brace bracket 80 ..........18 employer has created for the site on which the MEVA equipment is Safety system – Shoe MFS .............. 19 used. Such instructions are intended to minimise site-specific risks and Safety system –... -
Page 4: System For Stop Ends/Cantilevers - Stop-End Rail Mfs
MEVA FormSet System for stop ends/cantilevers – Stop-end rail MFS The stop-end rail MFS is used to form vertical slab stop-ends that Guard-railing post can be are flush with the wall. The long plugged in holes allow for an adjustment of 24.9 cm. -
Page 5: System For Stop Ends/Cantilevers - Stop-End Bracket Mfs
MEVA FormSet System for stop ends/cantilevers – Stop-end bracket MFS The stop-end bracket MFS is used to form cantilevers and slab Guard-railing post can be edges. Its main features are: plugged in Æ Sliding part and adjusting screw for stepless positioning of... -
Page 6: System For Stop Ends/Cantilevers - Anchor Sleeve
MEVA FormSet System for stop-ends/cantilevers – Anchor sleeve The DW 15 anchor sleeve is used to install DW tie rods in walls. The first 2 cm of its inside are unthreaded (Fig. 6.1). This eases the installation of tie rods as it allows them to be aligned before being tightened. -
Page 7: System For Stop Ends/Cantilevers - Anchor Sleeve For Fair-Faced Concrete
MEVA FormSet System for stop ends/cantilevers – Anchor sleeve for fair- faced concrete Installation/Removal of anchor sleeve for fair-faced concrete Make sure to observe the maximum spacing of the anchor sleeves shown in Tables MFS-4.3 und MFS-5.3. 1. Remove the integrated... -
Page 8: Door Spindle Mfs
MEVA FormSet Door spindle MFS The door spindle MFS has a left and a right thread. It can be adjusted steplessly: Æ 70–110 cm (type 1) Æ 50–90 cm (type 2) The admissible pressure is 11.5 The door spindle is installed horizontally and attached on both ends with a nail through each M10 nail hole (2 nails on either end). -
Page 9: Anchoring System - Spiral Anchor Dw 15/100
MEVA FormSet Anchoring system – Spiral anchor DW 15/100 The DW 15/100 spiral anchor (Fig. 9.1) is used to anchor equipment parts such as shoes MFS, push-pull props and the like in the concrete slab using DW 15 tie rods or flange screws DW 15. -
Page 10: Anchoring System
MEVA FormSet Anchoring system The parts of the anchoring system – anchor support, single and double anchors – can be used to anchor the support frame for single-sided formwork (Fig. 10.1). These parts are designed for use with different concrete slab thicknesses and for anchoring with DW 15 through... -
Page 11: Anchoring System - Parts
MEVA FormSet Anchoring system – Parts Anchor support DW Planing cap (Fig. 11.4) (Fig. 11.1) This cap is made of hard We recommend using the anchor foam and has a 45° end support DW for concrete slabs piece. It is plugged over... -
Page 12: Anchoring System - Assembly Of The Anchor Support
MEVA FormSet Anchoring system – Assembly of the anchor support The anchor support is welded to Installing the bottom side of the top rebars recoverable tie rods or wired to them (Fig. 12.1). 1. Run the anchor sleeve through Planing cap the anchor support. - Page 13 MEVA FormSet Anchoring system – Assembly of the anchor support When using the anchor support for anchoring, you can use the formula on this page to calculate the maximum length of the DW tie rods depending on the thickness of the bottom slab th (Fig. 13.1).
-
Page 14: Anchoring System - Assembly Of Single And Double Anchors
MEVA FormSet Anchoring system – Assembly of single and double anchors The single or double anchor is welded to the upper side of the Planing cap bottom rebars or wired to them (Fig. 14.1). Installation dimension The installation dimension is the... - Page 15 MEVA FormSet Anchoring system – Assembly of single or double anchor When using single or double anchors, you can use the formula on this page to calculate the maximum length of the DW tie rods depending on the thickness of the bottom slab th (Fig. 15.1).
-
Page 16: Anchoring System - Assembly Of The Anchor Extension
MEVA FormSet Anchoring system – Assembly of the anchor extension 1. Remove the planing cap after pouring (Fig. 16.1). 2. Screw the coupling nut onto Planing cap the tie rod. Screw it as far as it will go (Fig. 16.2) 3. Screw the DW tie rod for the extension into the coupling nut. -
Page 17: Anchoring System - Upstand Bracket
10 cm. The height of the upstand formwork must not exceed 15 cm. The maximum spacing of upstand brackets is 240 cm for MEVA panels. Fig. 17.1 Assembly of the upstand Spiral anchor 15/100 bracket 1. Press a spiral anchor DW 15/100 into the fresh concrete (Fig. 17.2 and p. -
Page 18: Anchoring System - Brace Bracket 80
MEVA FormSet Anchoring system – Brace bracket 80 The brace bracket 80 (Fig. 18.1) can be used to pour floor slabs Nail bar and slab up to a 80 cm high. The brace bracket has a plastic nail bar to attach the facing, planks or boards. -
Page 19: Safety System - Shoe Mfs
MEVA FormSet Safety system – Shoe MFS The shoe MFS (Fig. 19.1) is used together with guard-railing post 100, 140 or 48/134 and the safety mesh to build a fall-down protection. The shoe MFS is attached at a spiral anchor DW 15/100 cast in the steel concrete slab (see p. -
Page 20: Safety System - Safety Mesh
MEVA FormSet Safety system – Safety mesh The light-weight multi- purpose safety mesh is made of high-density steel. It has an exceptional force resistance of 500 kg. The closed metal sheet at the bottom and its bent top and bottom ends also prevent small parts from falling. -
Page 21: Safety System - Safety Mesh Extension / Corner Hinge
MEVA FormSet Safety system - Safety mesh extension / Corner hinge The safety mesh extension is used to height-extend the safety mesh. The extensions comes in lengths of 2.6 m (Fig. 21.1) and 1.3 m (Fig. 21.2). It fulfills the requirements as... -
Page 22: Service
We our engineers. also give prospective customers the chance to test MEVA formwork so they can see its benefits for themselves in actual use. RentalPlus Since MEVA started the flat...
