Wall formwork
90° corner – Single-sided tying
For single-sided tying at the
corner a 25 mm wide XT panel
is installed next to the XT inside
corner and next to the XT panel
opposite (50 or 75 cm wide)
(Figures 40.1 to 40.4).
For stabilisation, an M alignment
rail 75 is fitted to the multi-
function profile of the panel
across the 25 cm wide panel
(Figures 40.1 and 40.2).
The number of alignment rails
depends on the number of tie
holes in the panel.
For pouring heights up to
350 cm and wall thicknesses up
to 30 cm the M alignment rail is
not required (Figures. 40.3 and
40.4 and Table 4444.6).
Attention
Unused tie holes must always
be closed with plug D35/38 or
alternatively with XT sealing cone
(10) with a pressed-on plug D20
(see page XT-18).
Description
M alignment rail 75 .............. 29-400-95
Flange screw 18 .................... 29-401-10
XT sealing cone ..................... 29-902-34
XT sealing cone 10 ................ 29-902-35
Plug D35/38 .......................... 29-902-71
Plug D20, red ........................ 29-902-63
XT-40

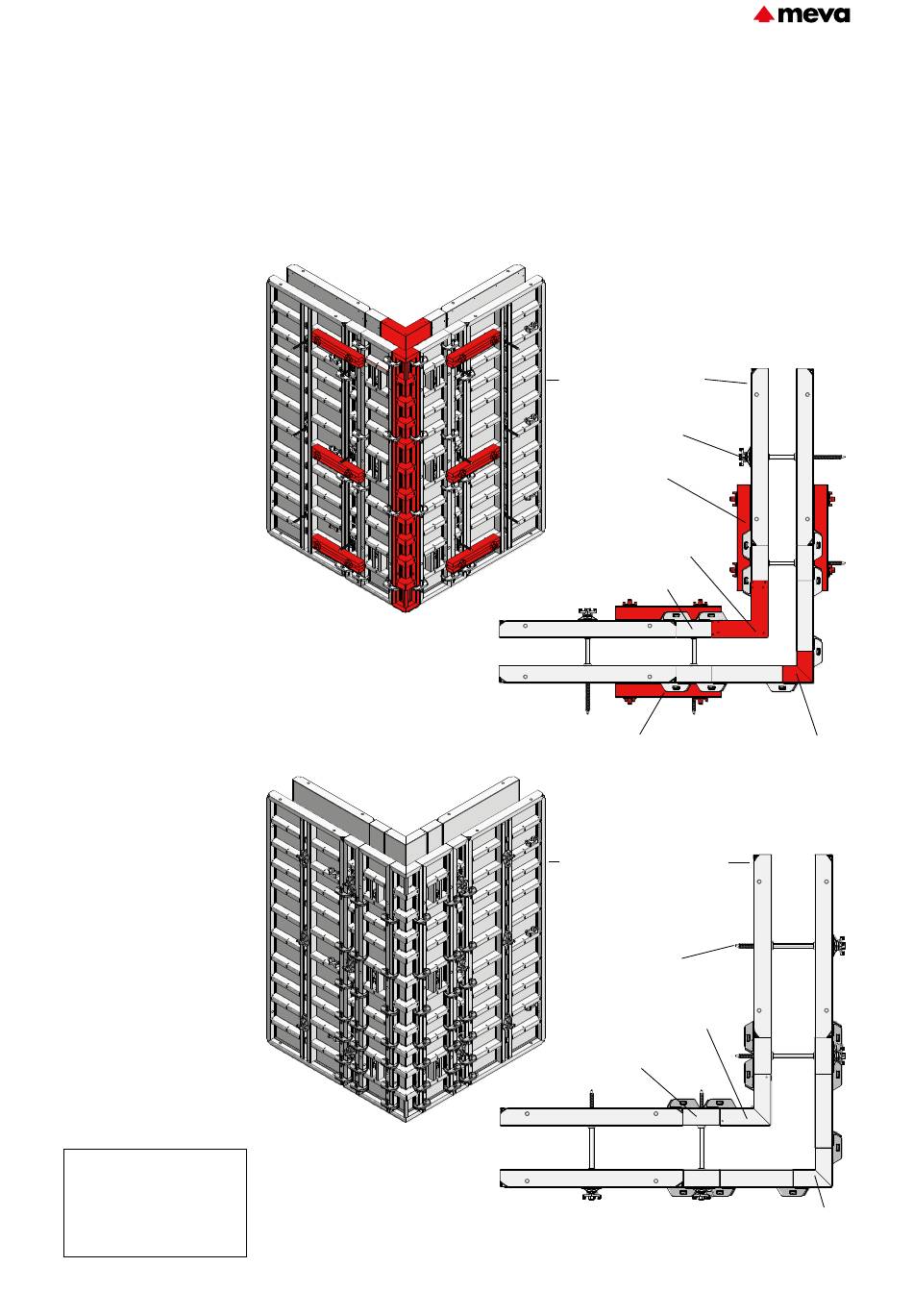

Fig. 40.1
Fig. 40.3
Ref. No.
Pouring heights and wall
thickness as required
Single-sided tying
M alignment rail 75
Mammut XT inside corner
Mammut XT panel w = 25 cm
Fig. 40.2
M alignment rail 75
Pouring heights up to 350 cm
and wall thicknesses up to
30 cm
Single-sided tying
Mammut XT inside corner
Mammut XT
panel w = 25 cm
Fig. 40.4
Technical Instruction Manual / Status September 2018
Mammut XT
Mammut XT outside corner
Mammut XT outside corner
