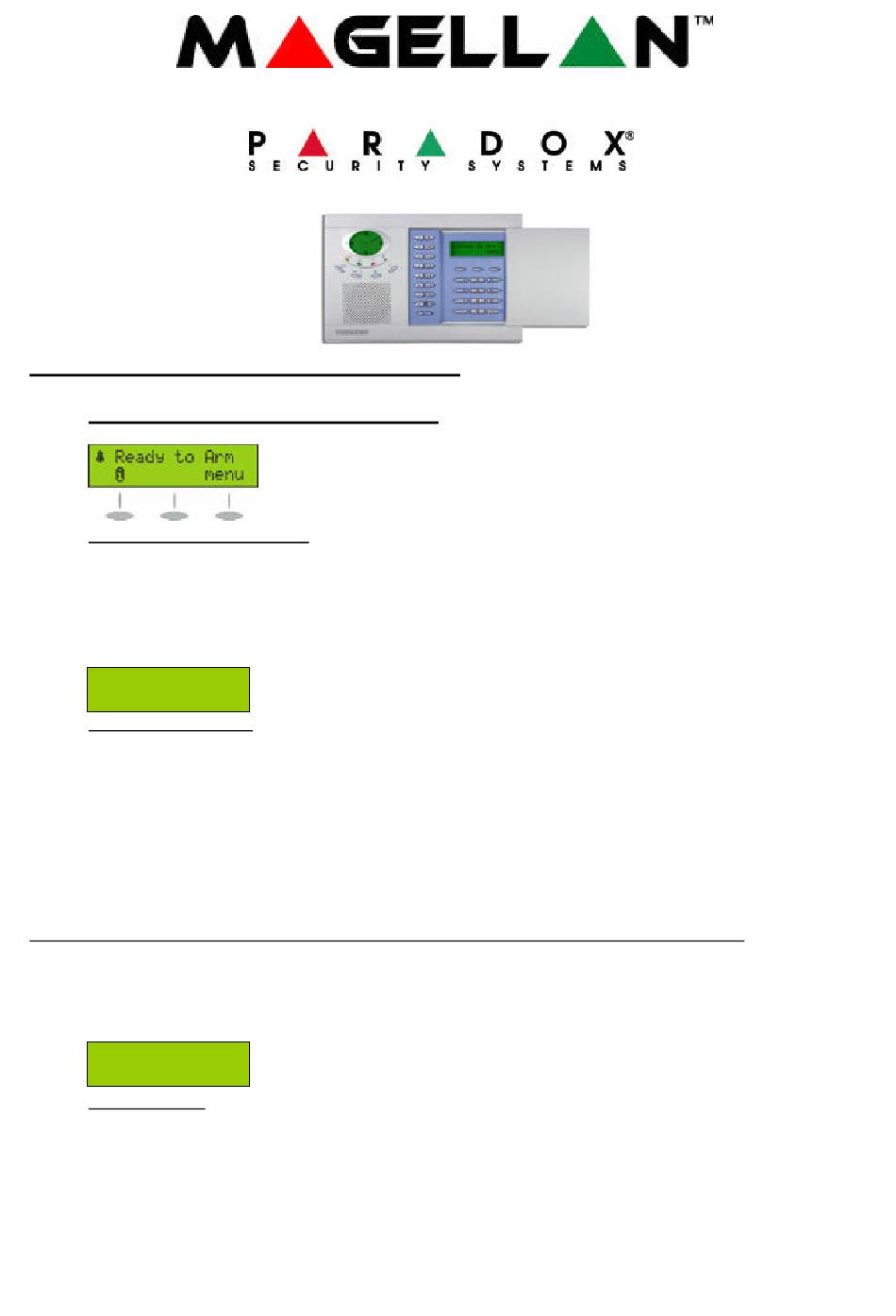

Magellan Quick Programming Guide:
*INSTALLER PROGRAMMING*
How to enter programming:
STEP 1:
PRESS AND HOLD THE [0] KEY
STEP 2:
ENTER THE [INSTALLER CODE] (DEFAULT: 0000).
STEP 3:
ENTER 3-DIGIT [SECTION] YOU WISH TO PROGRAM.
STEP 4:
ENTER [DATA] AS REQUIRED
STEP 5:
PRESS THE [*] TO CLEAR DATA. PRESS THE [#] TO SAVE CHANGES.
[001] Zone Defi.
(001) (12xxxxx8)
Programming zones:
STEP 1:
GET INTO PROG. MODE: (see above)
STEP 2:
ENTER SECTION NUMBER (e.g: 001 = Zone 1)
STEP 3:
ENTER THREE DIGITS FROM THE ZONE DEFINITION TABLE
STEP 4:
SELECT ONE OR MORE OPTIONS FROM THE ZONE OPTIONS TABLE
I.e. if key 2 is on = Bypassable zone, this means it is enabled.
If you want to disable it, press key 2, and the led will turn off. This disables that option.
STEP 5:
PRESS [#] TO SAVE
*PANEL AUTOMATICALLY JUMPS TO NEXT ADDRESS IN ZONE PROGRAMMING
STEP 6:
FOLLOW PROCEDURES FROM STEP 3 TO PROGRAM THE NEXT ZONE OR
PRESS [*] TWICE TO EXIT ZONE PROGRAMMING.
STEP 7:
PRESS [EXIT] TO RETURN TO READY STATUS.
[060] Timers
(005)
System timers:
SECTION:
[060]
SECTION:
[062]
SECTION:
[072]
SECTION:
[071]
SECTION:
[084]
(ready status)
(i.e. instant, follow (handover), entry)
(This table is a toggle ON/OFF feature.)
ENTRY DELAY 1
EXIT DELAY
NUMBER OF RINGS
AUTO TEST REPORT DAYS
AUTO TEST REPORT TIME
BY
*045 SECS
*060 SECS
*008 RINGS
*DISABLED (see page 2 for programming)
*DISABLED (see page 2 for programming)
(* = default setting)
