ScanDrop
2
Using the
Butterfly Cuvette

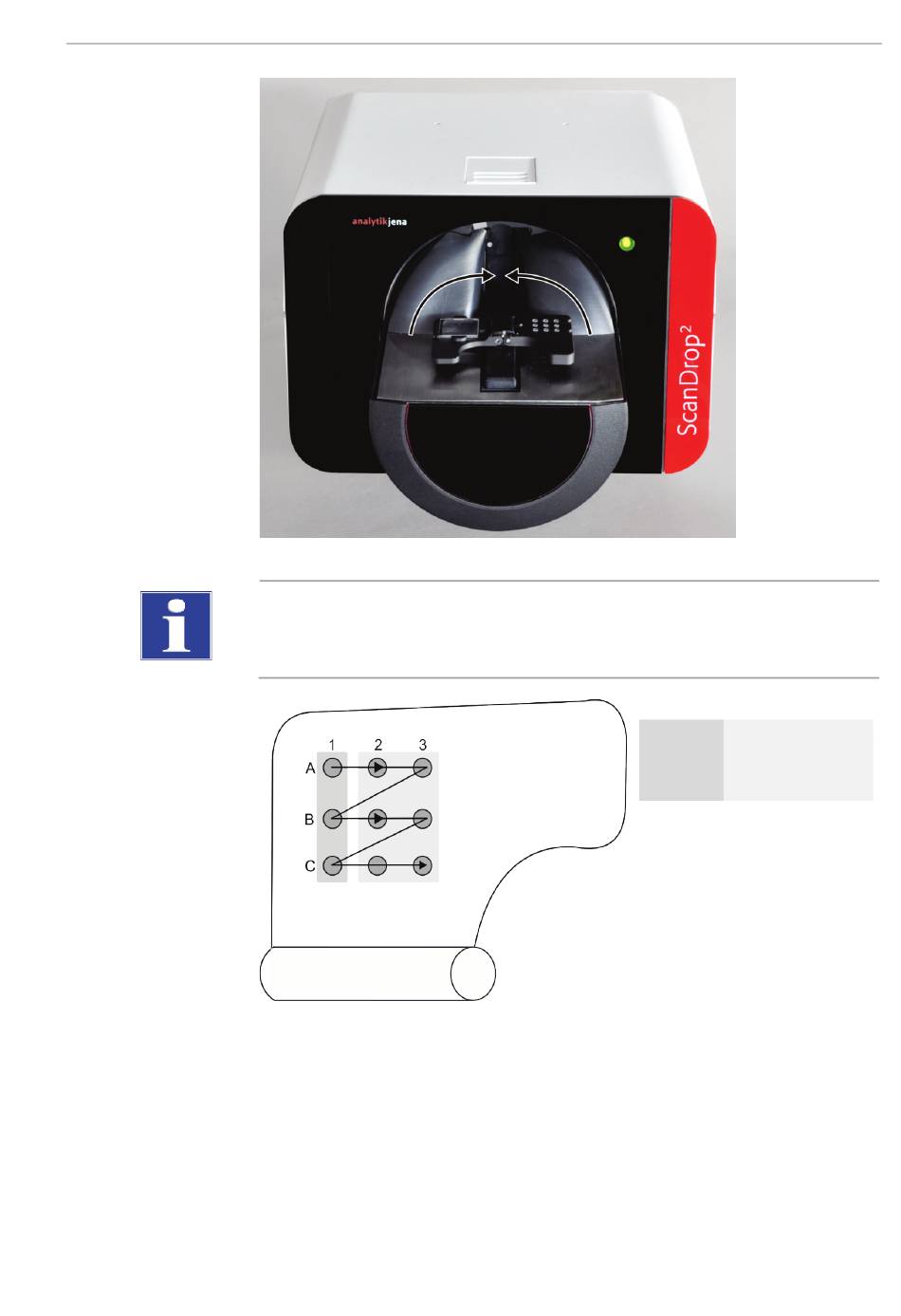

Fig. 15 Inserting the Butterfly Cuvette
ATTENTION
Only use the Butterfly Cuvette supplied with the device. The device and the Butterfly Cu-
vette are paired with each other for optimal measuring performance.
Fig. 16 Measuring spaces on the Butterfly Cuvette
For measurements with the Butterfly Cuvette, one reference (buffer) is required at each
of the measuring spaces in column 1 (A1-C1). Up to 6 samples can be filled into the
measuring spaces in columns 2 and 3.
1. Using pipettes, fill 3 references into the measuring spaces A1, B1 and C1 on the But-
terfly Cuvette. Fill up to 6 samples into the measuring spaces A2-C3.
Fill the reference for samples in row A into measuring space A1.
Filling quantity 2.0-4.0 µL.
2. Open ScanDrop and position the adapter on the magnet carriage.
2
Installation and commissioning
Measuring spaces
Reference Sample
A 1 A 2
B 1 B 2
C 1 C 2
Measuring direction 
A 3
B 3
C 3
25
