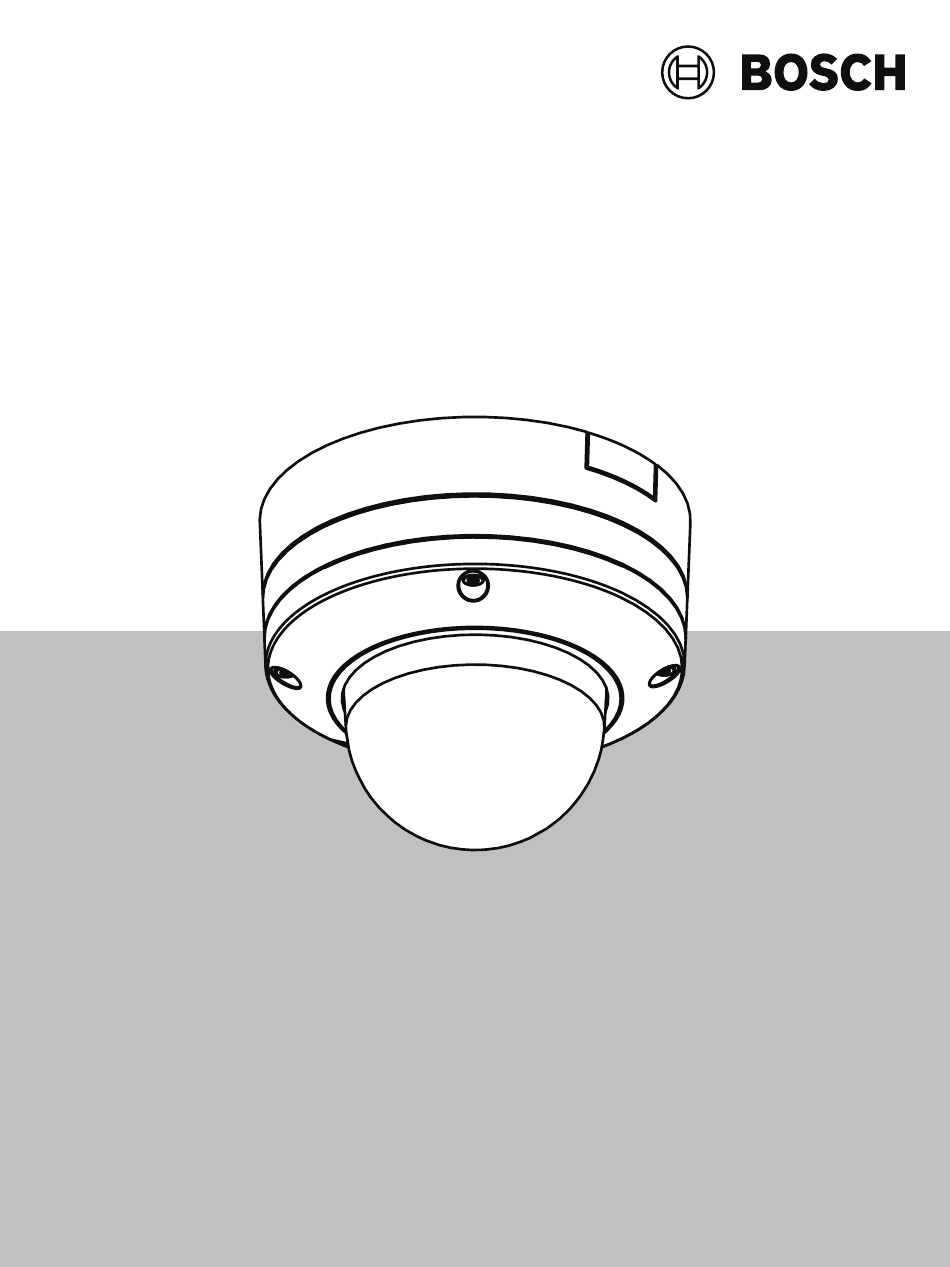

FLEXIDOME 8100i | FLEXIDOME 8100i — X
series
NDE‑8702‑RX | NDE‑8702‑RXT | NDE‑8703‑RX | NDE‑8703‑RXT |
NDE‑8703‑R | NDE‑8703‑RT | NDE‑8704‑R | NDE‑8704‑RT |
NDE‑8704‑RX
en
Installation manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLEXIDOME 8100i IR X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bosch FLEXIDOME 8100i IR X Series

  • Page 1 FLEXIDOME 8100i | FLEXIDOME 8100i — X series NDE‑8702‑RX | NDE‑8702‑RXT | NDE‑8703‑RX | NDE‑8703‑RXT | NDE‑8703‑R | NDE‑8703‑RT | NDE‑8704‑R | NDE‑8704‑RT | NDE‑8704‑RX Installation manual...
  • Page 3: Table Of Contents

    Password protection in camera Troubleshooting Resolving problems Testing the network connection Customer service Maintenance 10.1 Bubble handling 10.2 Bubble cleaning 10.3 Bubble replacement 10.4 Camera reset Decommissioning 11.1 Transfer 11.2 Disposal Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 4: Safety And Security Information

    Operate the device only from the type of power source indicated on the label. – Unless qualified, do not attempt to service a damaged device yourself. Refer all servicing to qualified service personnel. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 5: Notices

    Bosch Security Systems, LLC 130 Perinton Parkway 14450 Fairport, NY, USA For more information please contact the nearest Bosch Security Systems location or visit: www.boschsecurity.us Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 6 Security advisories, that is a list of identified vulnerabilities and proposed solutions: https://www.boschsecurity.com/xc/en/support/product-security/security- advisories.html Bosch assumes no liability whatsoever for any damage caused by operating its products with outdated software components. Old electrical and electronic equipment This product and/or battery must be disposed of separately from household waste.
  • Page 7: Short Information

    Bosch Security Systems accepts no liability for damage resulting directly or indirectly from faults, incompleteness or discrepancies between this manual and the product described. Copyright This manual is the intellectual property of Bosch Security Systems and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
  • Page 8: System Overview

    Installation, commissioning and operation of the camera shall be carried out by trained professionals only. The use of surveillance cameras is restricted by national laws and regulations. Use the camera accordingly. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 9: Preparing For Installation

    This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper immediately. Verify that all parts are included. If any items are missing, notify your Bosch Security Systems sales or customer service representative.
  • Page 10: Preparation

    – Screwdriver for TR20 bit, or use a torque wrench TR20 hex key. – microSD card (optional) Note: Bosch recommends the use of industrial microSD cards with health monitoring. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 11: Wiring

    PoE by default, and seamlessly switches to auxiliary input if PoE power fails. When PoE power returns, the camera seamlessly switches back to PoE as its default power source. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 12: 24V Ac/12-26V Dc Power Input

    Use the alarm output for switching external devices such as lamps or sirens. The alarm output switching capability has a maximum voltage of 30V AC or +40V DC; maximum 0.5 A continuous, 10 VA. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 13: Grounding

    Grounding provides improved surge protection (up to 2 kV, 2 kA to ground (8/20 µs pulse)). The grounding wire is not included in the box. Bosch recommends the use of a grounding wire with a ring terminal. The ring terminal must not have a thickness greater than 2 mm (0.01 in.).
  • Page 14: In-Box Configuration

    For more detail about the Project Assistant app, refer to Commissioning. Notice! The provided patch cable is only intended for in-box configuration. Dispose of the patch cable after the in-box configuration is successfully completed. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 15: Hardware Installation

    The mounting plate is used to fix the camera to a flat surface. It offers different holes and slots for a variety of fixing options. 1 10.2 cm / 4 in. Square junction box Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 16: Installing The Mounting Plate Without Conduit

    Remove the mounting plate from the box. Position the mounting plate with the center hole on top of the cable exit on the surface, and mark the positions of the screw holes on the surface. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 17 For a camera mounted on a wall: make sure that the mounting plate is oriented in a 90º angle, with the holes parallel to the floor, to allow for the use of a weather protector if necessary. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 18: Installing The Mounting Plate With Conduit

    For a camera mounted on a wall: make sure that the mounting plate is oriented in a 90º angle, with the holes parallel to the floor, to allow for the use of a weather protector if necessary. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 19 If the conduit or cable diameter is smaller than M20, use the rubber adapter with the conduit plate adapter with the larger hole. The rubber must be perforated to put the conduit or cable through. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 20 Remove the mounting plate from the box. Mark the positions of the holes on the surface. The mounting plate has only one side available for the conduit. Make sure to position it accordingly. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 21 11. Install 4 plugs in the holes. 12. Attach the mounting plate to the surface with 4 screws. Tighten the screws between 4 and 7 Nm (3 and 5.2 lbft). Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 22 FLEXIDOME 8100i | FLEXIDOME 8100i — X series 13. Install the conduit cover on the conduit plate with the bolt. Tighten the screw between 1.4 and 2 Nm (1 lbft and 1.5 lbft). 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 23: Installing The Camera Base

    If the installation of the mounting plate was done with the conduit, remove the door on the camera base as shown in the image. Keep the screw and lid. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 24 (2) in the camera base to put them through. The diameter of the whole must be between 5 and 8 mm (0.2 and 0.3 in.). The network cable inlet (1) is for the network cable only. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 25 Remove the screw from the bottom of the camera base. Install the ring terminal on the screw. Hold the camera base and attach the screw with the grounding cable. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 26: Installation Steps

    If necessary, put all auxiliary connections through the secondary cable inlet. Attach a grommet to the network cable: – For an RJ45 network cable, insert the IP66 grommet tightly around the cable. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 27 FLEXIDOME 8100i | FLEXIDOME 8100i — X series Hardware installation | en – Insert the cable through the IP67 grommet and crimp the RJ45 connector on the network cable. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 28 FLEXIDOME 8100i | FLEXIDOME 8100i — X series Grab the camera base with both hands and push the grommet into the network cable inlet with both thumbs on the opposite sides of the network cable. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 29 FLEXIDOME 8100i | FLEXIDOME 8100i — X series Hardware installation | en Make sure that the grommet is pushed in to its full length. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 30 | Hardware installation FLEXIDOME 8100i | FLEXIDOME 8100i — X series Adjust the length of the network cable as necessary. Connect the network cable to the network connector. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 31 If required, do a loop with the cable on the hooks of the mounting plate. – For an installation without conduit, do a loop with the cable on one of the hooks of the mounting plate. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 32 | Hardware installation FLEXIDOME 8100i | FLEXIDOME 8100i — X series – For an installation with conduit, do a loop with the cable on both hooks of the mounting plate. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 33 Push the camera base against the mounting plate and turn the camera base in the clockwise direction until you hear/feel a click. Make sure that the camera base is secured. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 34 After removing the desiccant tablet from the bag, installation must be completed in less than 10 minutes. Attach the desiccant tablet with the adhesive side facing the camera base. Make sure not to cover the vents with the desiccant. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 35: Installing The Camera Module

    Remove the camera module from the box. – If necessary, install the micro SD card in micro SD slot 1. – Press the micro SD card firmly until it latches into place in the slot. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 36 Attach the camera module to the camera base and tighten the four screws. The recommended torque is 3.25 Nm (2.39 lbft). Make sure that the arrow on the camera module points in the same direction as the red arrow on the camera base. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 37 FLEXIDOME 8100i | FLEXIDOME 8100i — X series Hardware installation | en Remove the protective cover from the bubble. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 38: Led Status

    Blinking green Stream is being watched and/or recorded Disable the status LED in the camera settings, if necessary. Select Camera. Select Installer menu. Select Disabled in Camera LED. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 39: Mounting Accessories

    FLEXIDOME IP 8000i, indoor. NDA-8000-PIPW Pendant interface plate including weather protector for FLEXIDOME IP 8000i and FLEXIDOME 8100i cameras NDA-8002-PLEN Plenum-rated in-ceiling mount kit for FLEXIDOME IP 8000i and FLEXIDOME 8100i cameras. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 40 Surface mount box (SMB) for wall mount or pipe mount. NDA-U-PMAS Universal pole mount adapter, white; small. NDA-U-PMAL Universal pole mount adapter, white; large. NDA-U-RMT Universal roof mount for dome cameras, white. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 41: Removing The Camera

    Untighten the 4 captive screws of the screw holes in the camera module. Push the camera upwards and rotate counterclockwise to un-click it from the mounting plate. Disconnect the Ethernet cable and remove the camera. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 42: Commissioning

    If required, re-commissioning can be done at any time. Notice! The remote commissioning functionality (PTRZ) of the camera is designed as installation aid for first set-up or adjustments at a later moment in time. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 43: Connection Via The Web Browser

    Enter the user name (“service”) and a password in the appropriate fields. Refer to the section User Management for more information. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 44 Fill in the fields User name and Password. Click OK. If the password is correct, the desired page appears. Note: New releases of software may require you to set a new and stronger password. 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 45: Troubleshooting

    Camera parts are out of place Please contact your supplier or or broken due to system integrator, or go transportation. directly to Bosch Security Systems customer service. PTRZ does not work Camera has lost calibration Reset the PTR in the user correctly.
  • Page 46 SD card lid. Closing seals are damaged. Please contact your supplier or system integrator, or go directly to Bosch Security Systems customer service. Rubber grommet not placed Re-install rubber grommet. correctly on IP54 protection kit..
  • Page 47: Testing The Network Connection

    Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or go directly to Bosch Security Systems customer service. The version numbers of the internal firmware can be viewed on a service page. Please note this information before contacting customer service.
  • Page 48: Maintenance

    Bubble may become yellow overtime due to exposure to UV radiation like direct or indirect sunlight. In case the bubble gets damaged or yellow, it can be replaced by a clear bubble (NDA-8000- CBL), a tinted bubble (NDA-8000-TBL), or a hydrophilic bubble (NDA-8000-HCBL). 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 49: Camera Reset

    If LED light does not flash, connect the camera to a network cable with PoE+ and repeat steps 2 and 3. Re-attach the camera module onto the camera base. Bosch Security Systems, BV 2024-11 | V01 | F.01U.411.088 Installation manual...
  • Page 50: Decommissioning

    – Repair & Exchange – Product Security Bosch Building Technologies Academy Visit the Bosch Building Technologies Academy website and have access to training courses, video tutorials and documents: www.boschsecurity.com/xc/en/support/training/ 2024-11 | V01 | F.01U.411.088 Bosch Security Systems, BV Installation manual...
  • Page 52 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2024 Building solutions for a better life 202411271553...
