Summary of Contents for Bosch FLEXIDOME NIN-733

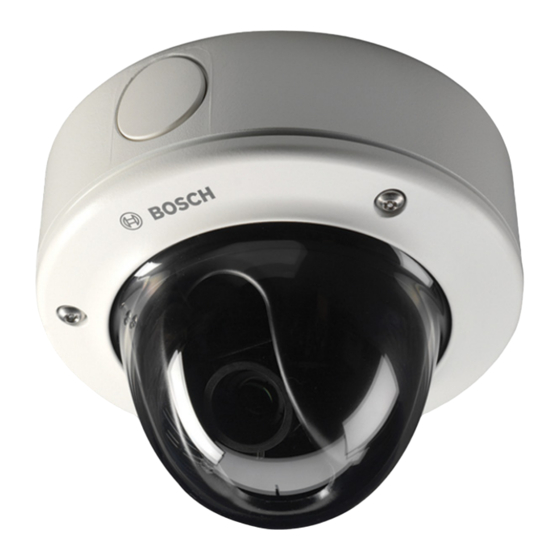

- Page 1 FLEXIDOME HD VR NIN-733 / NIN-832 / NIN-932 Installation Manual...
-
Page 3: Table Of Contents
3.1.6 Alarm I/O 3.1.7 Tamper detection and motion detection 3.1.8 Video encoding 3.1.9 Multicast 3.1.10 Power-over-Ethernet 3.1.11 Encryption 3.1.12 Recording 3.1.13 Configuration Operation with external systems Planning Unpacking System requirements Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... - Page 4 Day/Night switching Browser connection Protected network Troubleshooting Function test Resolving problems Customer service Maintenance Testing the network connection Cleaning the bubble Repairs 9.3.1 Transfer and disposal Technical Data 10.1 Specifications AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems...
- Page 5 FLEXIDOME HD VR Table of Contents | en 10.1.1 Dimensions Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08...
-
Page 6: Safety
60950. The power supply must be a SELV-LPS unit or a SELV - Class 2 unit (Safety Extra Low Voltage - Limited Power Source). CAUTION! The camera must be connected to earth. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 7: Important Safety Instructions
Equipment change or modification could void the user's guarantee or authorization agreement. Connect the yellow/green earth wire of the camera to the system earth of the installation to ensure correct safety and EMC/RFI protection. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 8: Connection In Applications
If auxiliary power (12 VDC or 24 VAC) and PoE are applied simultaneously, the camera selects auxiliary input and shuts off the PoE. Type label The type label is located on the side of the camera module. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 9: Fcc & Ices Compliance
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems". This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 10: Microsd Cards
| Safety FLEXIDOME HD VR MicroSD cards Bosch Security systems recommends that local storage on microSD card should only be used for alarm recording and Automatic Network Replenishment (ANR) applications. To minimize the risk of loss of digital information, we recommend multiple, redundant recording systems, and a procedure to back up all digital information. -
Page 11: Bosch Notices
Bosch notices Video loss Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information. -
Page 12: Copyrights
Digital Equipment Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. This software is based in part on the work of the Independent JPEG Group. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 13: Introduction
Integrated Ethernet interface (10/100 Base-T) – Power-over-Ethernet (PoE) – Password protection – Integrated Web server for live viewing and configuration via a browser – Firmware update through flash memory – Hybrid video outputs Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 14: System Information
The camera complies to the ONVIF standard which means that it is easier to install and integrate into larger systems. The ONVIF standard is a global standard for the interface of network video products. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 15: Audio
Web browser connections can be protected using HTTPS. Protect the control channels via the SSL encryption protocol. With an additional license, the user data itself can be encrypted. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 16: Recording
(Intranet) or from the Internet. Similarly, firmware updates and rapid loading of device configurations are also possible. Configuration settings can be stored as files on a computer and copied from one camera to another. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 17: Operation With External Systems
The Bosch Video Management System is a unique enterprise IP video surveillance solution that provides seamless management of digital video, audio, and data across any IP network. It is designed to work with Bosch CCTV products as part of a total video surveillance management system. Bosch Video Client The camera video server and the Bosch Video Client software combine to provide a high-performance system solution. -
Page 18: Planning
Computer with Windows XP/Vista/7 operating system, network access, and Microsoft Internet Explorer web browser version 9. -or- – Computer with network access and reception software, for example Bosch Video Client or Bosch Video Management System. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 19: Installation
National Electrical Code or applicable local codes. Parts The camera/housing unit consists of the following parts: Surface Mount Box (some models only) Camera module and mounting base Inner liner Dome cover Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 20: Mounting The Unit
Attach the surface mount box securely using the three supplied screws. If you use the side connection of the SMB, remove the cap covering the side entrance, otherwise, leave the cap in place. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 21: Flush Mount
Cut out the recess. Drill three holes with a diameter of 8 mm (0.3 in). Insert the supplied plugs into the holes. Partially insert two screws into the mounting holes. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 22: Connections
Make the connections inside a water tight compartment. Isolate unused power wires individually. After connections are made ensure that the watertight compartment is tightly closed and cables and conduits are properly sealed to prevent ingress of water. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... - Page 23 RJ45 connector of the camera (Auto MDIX compliant - automatically detects the cable connection type). Power is supplied to the camera via the Ethernet cable, compliant with the Power-over-Ethernet standard. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08...
- Page 24 (NO) or normally closed (NC). Audio in / Audio out The unit has full-duplex mono audio. The two-way communication can be used to connect a speaker or door AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems...
-
Page 25: Mount The Camera
Mount the camera Route the cable tree from the camera around the rear of the camera module and secure all cables. Attach the camera module securely using the three supplied screws. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 26: Controls
Use this button to start the field-of - view installation wizard. 3. MicroSD card slot Insert a microSD card into the slot. 4. Service video 2.5 mm jack provides a CVBS signal output (for installation purposes only) AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 27: Camera Positioning And Field-Of-View
After power-up, wait a little (about 20 seconds). Press the Menu button. This stops the IP video stream and enables the service video analog output. S1460 CAUTION! Do not expose the sensors to direct sunlight. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 28: Pan
5.6.2 Tilt For vertical adjustment (tilt): Loosen the two thumbwheels (1). Swing the camera module between the wings. Do not rotate more than 90°. Tighten the two thumbwheels (1). ≤90° AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 29: Twist
FLEXIDOME HD VR Installation | en 5.6.3 Twist To obtain a horizontal horizon (for tilted ceilings or sidewall mounting), twist the camera module to align the picture shown on the monitor. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 30: Using The Install Wizard
Focus Indicator: 0 CONTINUE 180° ROTATE Timeout: 300 <press short> <press long> – The lens type is identified and shown on the screen. – The iris is opened to its maximum value. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 31: Closing The Unit
If the BNC video output is set to On, the second IP stream is disabled. Closing the unit When the camera position is set and all adjustments have been made, close the unit. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... - Page 32 Place the inner liner in position aligning its fin with the bracket on the base. Using the supplied screwdriver bit, secure the dome bubble to the camera base by tightening the three screws. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems...
-
Page 33: Camera Configuration
When the auto mode is selected and the switching level is set to -15, certain borderline scene lighting conditions can cause the camera to switch back and forth between day and night modes. Set a different switching level to avoid this. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 34: Browser Connection
The configuration options using the menu system of the camera itself are limited to setting up the lens and network. Note: The camera can also be configured using the supplied Bosch Video Client or the Bosch Video Management System. Protected network If a RADIUS server is used for network access control (802.1x... -
Page 35: Troubleshooting
Can you connect to the camera remotely? – Does the camera transmit all the data required? – Does the camera respond as desired to alarm events? – Is it possible to control peripheral devices, if necessary? Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 36: Resolving Problems
Faulty data transmission Check the data within the LAN. transmission with ping. The maximum number of Wait until there is a free connections has been connection and call the reached. transmitter again. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... - Page 37 Customer Service and firmware upload. file. replace if necessary. Incorrect firmware file. Enter the IP address of the unit followed by / main.htm in your Web browser and repeat the upload. Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08...
-
Page 38: Customer Service
Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or go directly to Bosch Security Systems Customer Service. The version numbers of the internal firmware can be viewed on a special page. Please note this information before contacting Customer Service. -
Page 39: Maintenance
Do not scrape the bubble with razor blades or other sharp instruments. – Do not use Benzene, Gasoline, Acetone, or Carbon Tetrachloride on the bubble. – Do not clean bubbles in the hot sun or on very hot days Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... -
Page 40: Repairs
Defective or superfluous devices and parts should be disposed of professionally or taken to your local collection point for hazardous materials. AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems... -
Page 41: Technical Data
Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/150000) selectable Default shutter Contrast On/Off enhancement Sharpness Sharpness enhancement level selectable Privacy Masking Four independent areas, fully programmable Video Analysis Motion+, IVA Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08... - Page 42 Audio input 1 Vrms, impedance 12 kOhm Audio output 1 Vrms, impedance 1.5 kOhm Audio standards G.711, 8kHz sampling rate L16, 16kHz sampling rate Audio signal-to-noise > 50 dB ratio AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems...
- Page 43 ATW, AWB hold and manual (2500 to 10000K) Indoor and Outdoor ATW Shutter Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/150000) selectable Default shutter Contrast On/Off enhancement Sharpness Sharpness enhancement level selectable Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08...
- Page 44 Maximum 0.5 A continuous, 10 VA Audio input 1 Vrms, impedance 12 kOhm Audio output 1 Vrms, impedance 1.5 kOhm Audio standards G.711, 8kHz sampling rate L16, 16kHz sampling rate AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems...
- Page 45 White Balance ATW, AWB hold and manual (2500 to 10000K) Indoor and Outdoor ATW Shutter Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/150000) selectable Default shutter Contrast On/Off enhancement Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08...
- Page 46 (DC coupled with 22 kOhm pull-up to +3.3 VDC) Relay output Maximum voltage 30 VAC or +40 VDC Maximum 0.5 A continuous, 10 VA Audio input 1 Vrms, impedance 12 kOhm Audio output 1 Vrms, impedance 1.5 kOhm AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems...
- Page 47 IP 66, NEMA Type 4X Impact protection IK10 Operating -30 °C to +50 °C (-22 °F to +122 °F) temperature 10.1.1 Dimensions Ø158 (6.22) Ø95 (3.7) mm (in) Ø158 (6.22) mm (in) Bosch Security Systems Installation Manual AM18-Q0637 | v1.1 | 2013.08...
- Page 48 | Technical Data FLEXIDOME HD VR AM18-Q0637 | v1.1 | 2013.08 Installation Manual Bosch Security Systems...
- Page 50 Bosch Security Systems www.boschsecurity.com © Bosch Security Systems, 2013...
