TERMINAL CONNECTION

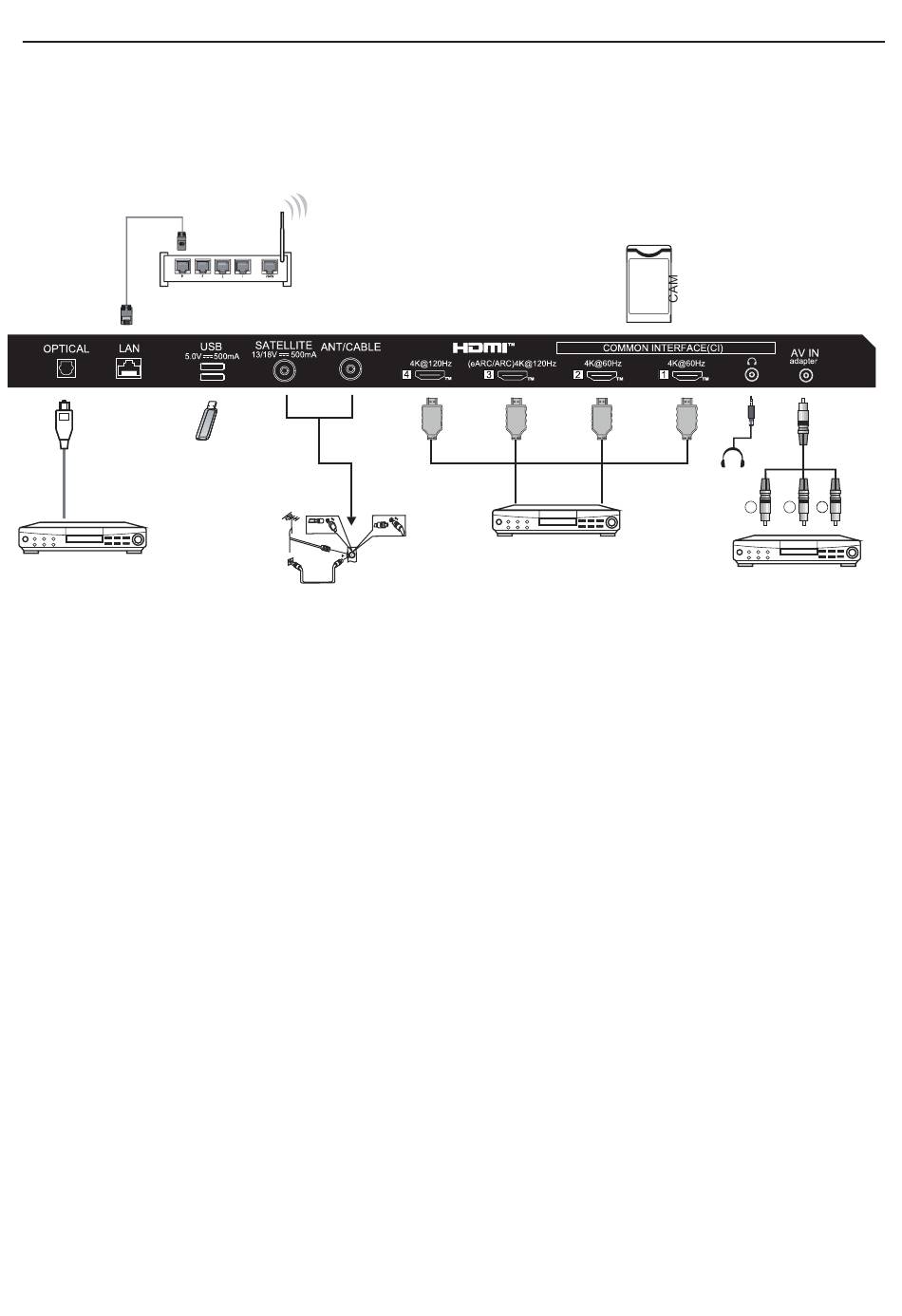

You can use the input terminals on TV set rear as follows.
Amplifier
1. RF: Antenna/close circuit TV
2. EARPHONE: Earphone output.
3. USB: Connect USB device.
4. HDMI: Connect to High-definition multimedia signal resource.
5. AV INPUT: Video input/Audio input.
RF
6
CI card
Audio/Video machine
with HDMI interfaces
W (Audio L)
R (Audio R)
Y (Video)
R
W Y
CVBS, DVD Player or other
machine with CVBS/S-Video
