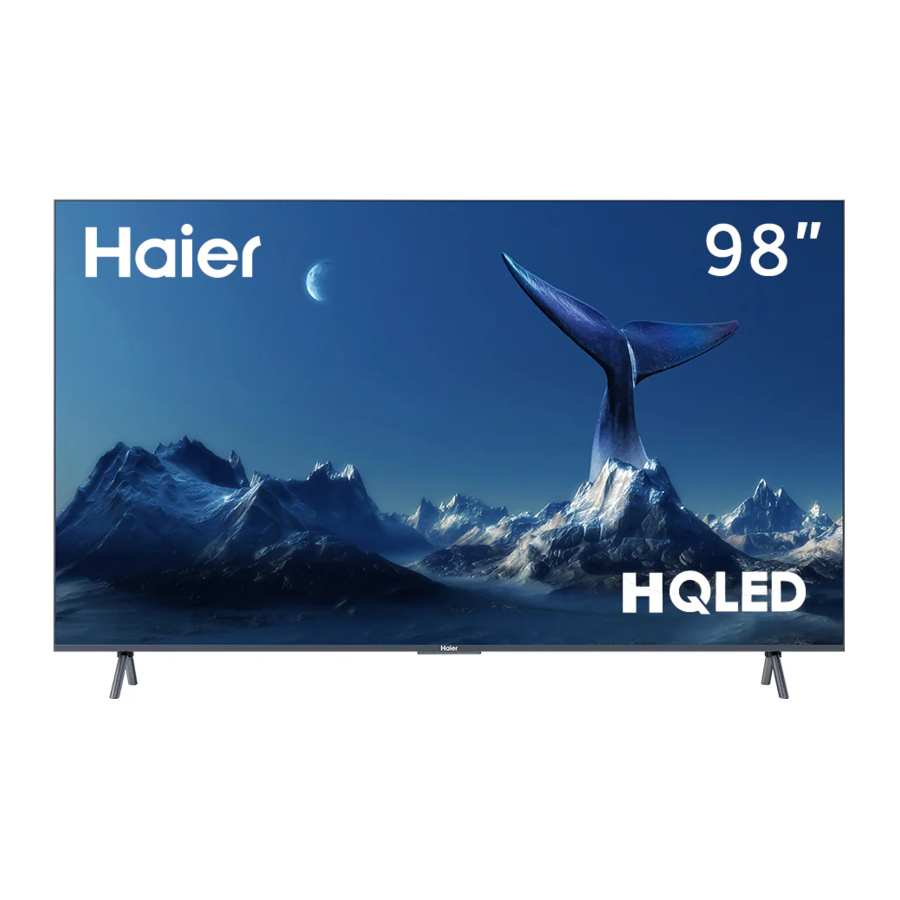

Haier Google Series, H98S900UX Manual

PREPARATION

Do not apply pressure to the screen display area which may compromise the integrity of the display. The manuafacturer's warranty does not cover user abuse or improper installations.

ATTACHING THE STAND

The stand of the TV must be assembled prior to usage.

1. Place the TV unit face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV.
2. Fix the stand to the base with four screws. For reminder, the base is heavy, please hold it with hand carefully.


PREPARING YOUR TV FOR WALL MOUNTING

We suggest that you keep your TV at least 2.36 inches (60 mm) from the wall to prevent cable interference. Before mounting your TV on the wall, you need to remove the stand. For your safety, please use only with a UL listed wall mount bracket with minimum weight of the TV without stand. To attach a wall mount bracket to your TV:

1. Remove the screws holding your TV to the stand.
2. Remove the stand from your TV. For reminder, the base is heavy, please hold it with hands carefully.
3. Secure the wall mount bracket to the back of your TV using screws. Follow the instructions of the user manual that came with the wall mount bracket to install.


NOTE
The wall mount bracket are not included.

4. Fix the wall mount screws (M8x16mm/6pcs) into the rear side of the TV, using the torque of 10kgf·cm.

TURNNING ON THE TV

1. Install the stand and place the TV on a solid surface.


NOTE

• Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover.
• To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.
• Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.

2. Connect the antenna cable or cable TV cable to the ANT IN aerial socket on the back of the TV set.
3. Power:
   Plug the cord into a working power outlet.

4. Turn the TV on:
   Press on the remote control or POWER button on the side control pannel of the TV.

PERIPHERAL CONNECTION AND CONTROLS

BUTTON CONTROL

In the standby mode, press the buttom to turn on the TV.
In the boot state, long press the button to shut down.

ACCESSORIES

Remote Control - 1 pc
User's Manual - 1 pc
Screws - 4 pcs
Base stand - 2 pcs
QSG - 1 pc
Warranty Card - 1 pc
RCA to 3.5mm Jack Composite A/V Cable - 1 pc

PERIPHERAL CONNECTION

All the terminals are(from left to right):
OPTICAL, LAN, USB, LNB IN(SATELLIT, ANT IN(ANTENNA/CABLE), HDMI4, HDMI3(eARC/ARC), HDMI2, HDMI1, HEADPHONE, AV IN adapter, COMMON INTERFACE(CI)

TERMINAL CONNECTION

You can use the input terminals on TV set rear as follows.

1. RF: Antenna/close circuit TV
2. EARPHONE: Earphone output.
3. USB: Connect USB device.
4. HDMI: Connect to High-definition multimedia signal resource.
5. AV INPUT: Video input/Audio input.

REMOTE CONTROL

OPERATING INSTRUCTIONS

INITIAL SETUP

E-Manual

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install in accordance with the instructions.
8. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lighting storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16. No naked flame sources, such as lighted candles, should be placed on the apparatus.
17. Attention should be drawn to the environmental aspects of battery disposal.
18. The use of apparatus in moderate climate.
19. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
20. Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

This symbol indicates AC voltage.

This symbol indicates DC voltage.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions provided in the user manual given with this unit.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

The batteries shall not be exposed to excessive heat such as radiators, fire or the like.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

Stability Hazard
A display may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the display.
• ALWAYS use furniture that can safely support the display.
• ALWAYS ensure the display is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the display or its controls.
• ALWAYS route cords and cables connected to your display so they cannot be tripped over, pulled or grabbed.
• NEVER place a television set in an unstable location.
• NEVER place the display on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the display to a suitable support.
• NEVER place the display on cloth or other materials that may be located between the display and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the display or furniture on which the display is placed.

Risk of explosion if battery is replaced by an incorrect type.

for Apparatus containing COIN / BUTTON CELL BATTERlES (Below instruction only used for the apparatus containing a user-replaceable coin/button cell battery)

Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with) this product contains a coin/button cell battery. lf the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

PRECAUTIONS AND REMINDERS

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Do not trap the power supply cord under the television receiver.

If you are going to clean the product, unplug the TV, use soft fabric, no water, never chemicals.

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Note: the use of apparatus in moderate climates.

Note: This product uses a panel consisting of sub pixels which require sophisticated technology to produce. Howerver, there may by a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
