Haier 15F6B Owner's Manual

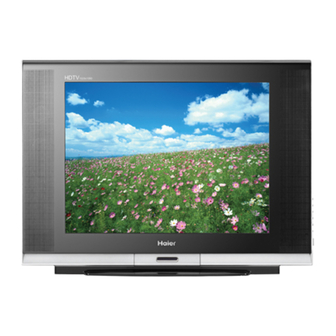

Colour tv receiver
Hide thumbs Also See for 15F6B:


Slide Curtain Power On/Off Display
218 Channels Preset
Multiple Picture & Sound Modes
On/Off Timer
Child Lock
Soft Change Channel Function
Count Time
Channels Appointment
DVD Video Component Input Terminals
Please read this manual carefully before operating
the unit, and keep it for future reference.


Table of Contents

Summary of Contents for Haier 15F6B

  • Page 1 15F6B COLOUR TV RECEIVER OWNER'S MANUAL MAIN FUNCTIONS Slide Curtain Power On/Off Display 218 Channels Preset Multiple Picture & Sound Modes On/Off Timer Child Lock Soft Change Channel Function Count Time Channels Appointment DVD Video Component Input Terminals Please read this manual carefully before operating...
  • Page 3: Table Of Contents

    Position of keys and plug-ins Front panel Back panel Using the remote control Basic Operation Power on and power off Viewing TV programs Viewing TV programs Program scan and screen display Tuning Automatic search. . . Manual search Skip Adjusting the picture and the sound Multiple picture modes .
  • Page 4: Warning And Cautions

    TV set and harm you. 6. When the TV set isn't going to be used for long time or it is in thunder and lightening, please pull out the plug from AC outlet and the antenna...
  • Page 5: Installation

    Installation Antenna connection Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an outdoor antenna .In different places, the suitable antenna type and position are different. twin-lead cable Antenna adapter 75 coaxial cable Plug (additional purchase) Note...
  • Page 6: Position Of Keys And Plug-Ins

    AUDIO VIDEO Back panel Video Y input terminal Video C input terminal S-VIDEO input terminal Video input terminal Volume down/up Channel down/up TV/AV switch Antenna input socket Video C Audio input terminal Power switch Signal receiver Power indicator input terminal...
  • Page 7: Using The Remote Control

    VOL+ BACK CALENDAR MODE RESTART FIRE FIRE Buttons and Descriptions TV and AV Exchange Button To exchange between TV and other available video inputs Mute Button Press to conceal the sound of programs. SCAN Screen Display Button System Adjust Button...
  • Page 8: Power On And Power Off

    Power On and Power Off Below are methods on how to power on/off the TV set with the switch on the TV and on the remote control. Power on/off DC Standby Button Direct-digit Choosing Button Connect/disconnect to the power 1.Connect the power supply wire, then press...
  • Page 9: Viewing Tv Programs

    Digit Select button and change it into three-digits mode, then press the number of the channel. If the channel position number you select is larger than 218, the TV will use the first two number as the channel position. Direct-digit Choosing 2.Use CH+/- button button Press CH+ to increase the channel position number.
  • Page 10: Program Scan And Screen Display

    TV set will return to the starting channel. 2.If you want to terminate this function during the scanning, press the SCAN button again, and the program will stay at the present channel.
  • Page 11: Tuning

    Tuning There are three ways of searching: automatic search, manual search and MFT (manual fine tune). You may operate it either on the TV or on the remote control. Here is mainly about the remote control. Automatic search VOL- MENU...
  • Page 12: Manual Search

    Tuning (continued) Manual search VOL- MENU VOL+ Direct-digit Choosing Button 4. Press VOL+/- button to start searching. VOL- button is used to search the lower frquency channel. VOL+ button is used to search the higher frequency channel. VOL- VOL+ MENU Repeat the steps until you find the channel you need.
  • Page 13: Mft

    Tuning (continued) MFT(manual fine tune) VOL- MENU VOL+ Direct-digit Choosing Button VOL- MENU VOL+ When you can't get a satisfactory picture and audio effect, you can fine tune to obtain. 1. Press CH+/- button or the Direct-digit Choosing button to select a channel directly (take channel 1 for example).
  • Page 14: Skip

    Tuning (continued) Skip Skip After the programs are presetted, you can skip some programs so that to select your favorite channels only. 1. Press CH+/- button or Direct-digit Choosing button to select a channel directly (take channel 1 for example). 2.
  • Page 15: Adjusting The Picture And The Sound

    If the picture mode is set to PICTURE MUTE or COLOR MUTE,it will autorenew to MEMORY mode when you restart your TV set. Set the parameter of MEMORY 1. Press MENU button, until PICTURE appears on the screen. VOL-...
  • Page 16: Multiple Sound Modes

    · ½ ± ã µ Ä Í ¼ Ï ñ º Í É ù Ò Adjusting the Picture and the Sound (continued) Multiple Sound Modes How to select the sound mode You can quickly select you most favored sound mode from the following three S.STD kinds of modes.
  • Page 17: S.c.c,Count And Mute

    How to use the COUNT function This TV set provides you with the function of COUNT, if you want to know how long your TV set has been used, you can press MENU button, and find FUNCTION 2 , then you can know the time the TV has been on(count from 0 after 100,000 hours).
  • Page 18: Setting The Timer

    Setting the Timer This TV set provides you with three timer functions such as timer on, timer off and sleep off. Timer off 1.Press MENU button, until TIMER appears on the screen. VOL- VOL+ MENU 3.Press CH- button, move the indicator( row.
  • Page 19: Sleep Timer And Timer On

    MENU VOL- MENU VOL+ (continued) Using this function, the TV set can be changed into the standby status after a period of preset time from when this function is activated. 2.Press the button repeatedly, the screen will show in turn as the right form.
  • Page 20: Channels Appoinment

    The channels appointment function can help you conveniently preset as many as six programs at a time. At the preset time, the TV set will automatically change to the preconcerted channel. If two or more programs are set in a same time, the last channel number will be selected.
  • Page 21: Setting The Other Function

    How to activate the function of screen protection If no signal has been received by the TV set,when the B.B function is set ON, the screen will change into the form on the right shows( game background ) .
  • Page 22: Curtain Function And Calendar Display

    II : fade in and fade out III: mixed I and II How to use the CALEDAR function This TV set has been designed to store the calendar from the year 1901 to 2050. 1.Press the CALENDAR button and then the...
  • Page 23: Channel Exchange

    Setting the other Function The function of channel exchange will enable you to exchange any two programs and you can conveniently adjust the order of the programs due to your own need. Channel exchange VOL- VOL+ MENU Direct-digit Choosing Button VOL- VOL+ MENU...
  • Page 24: Setting The Lock

    Setting the Lock This TV set provides you with the LOCK function, you can choose it due to your need to protect your TV set. Changing your password LOCK VOL- VOL+ MENU Direct-digit Choosing Button Changing your password This TV set can set a four digit password, the original one is 0000, if you want to reset it, please follow the instructions below.
  • Page 25: Setting The Lock

    The TV set will be in the state of mute. 2.When the CHILD LOCK is set ON, if the buttons...
  • Page 26: Game

    Game This TV set provides you with the SUBMARINE game, after entering the game, except the buttons that are appointed in the game( for example, the game button, VOL+/-and CH+/-, etc.)and the DC Standy button, the other buttons cannot be used.
  • Page 27: Connecting Additional Equipments

    Connecting Additional Equipments Connecting additional equipments You can connect the DVD,VCR and stereo system to the AV output to enjoy a higher quality of picture and sound effect. DVD, VCD or other units Note: If S-VIDEO and AV terminal are connected the same time, S-VIDEO is prioritied. Signal flow White (Audio left channel) Red (Cr and audio right channel)
  • Page 28: Troubleshooting

    The contrast, color and tint may be incorrectly adjusted. If you change the direction of the TV while the TV is on, the picture Poor color / tint, may suffer from color shading. If so, turn off the TV and allow about good sound 30 minutes to cool, then turn on the TV again.
  • Page 29: Specifications

    Specifications The specifications offered you here are only for reference and, with the improvement of the products ,there may be some different between the description and the practicality. Specifications M o d e l Color system PAL SECAM AV NTSC3.58 NTSC4.43 Sound system BG DK Picture tube...
