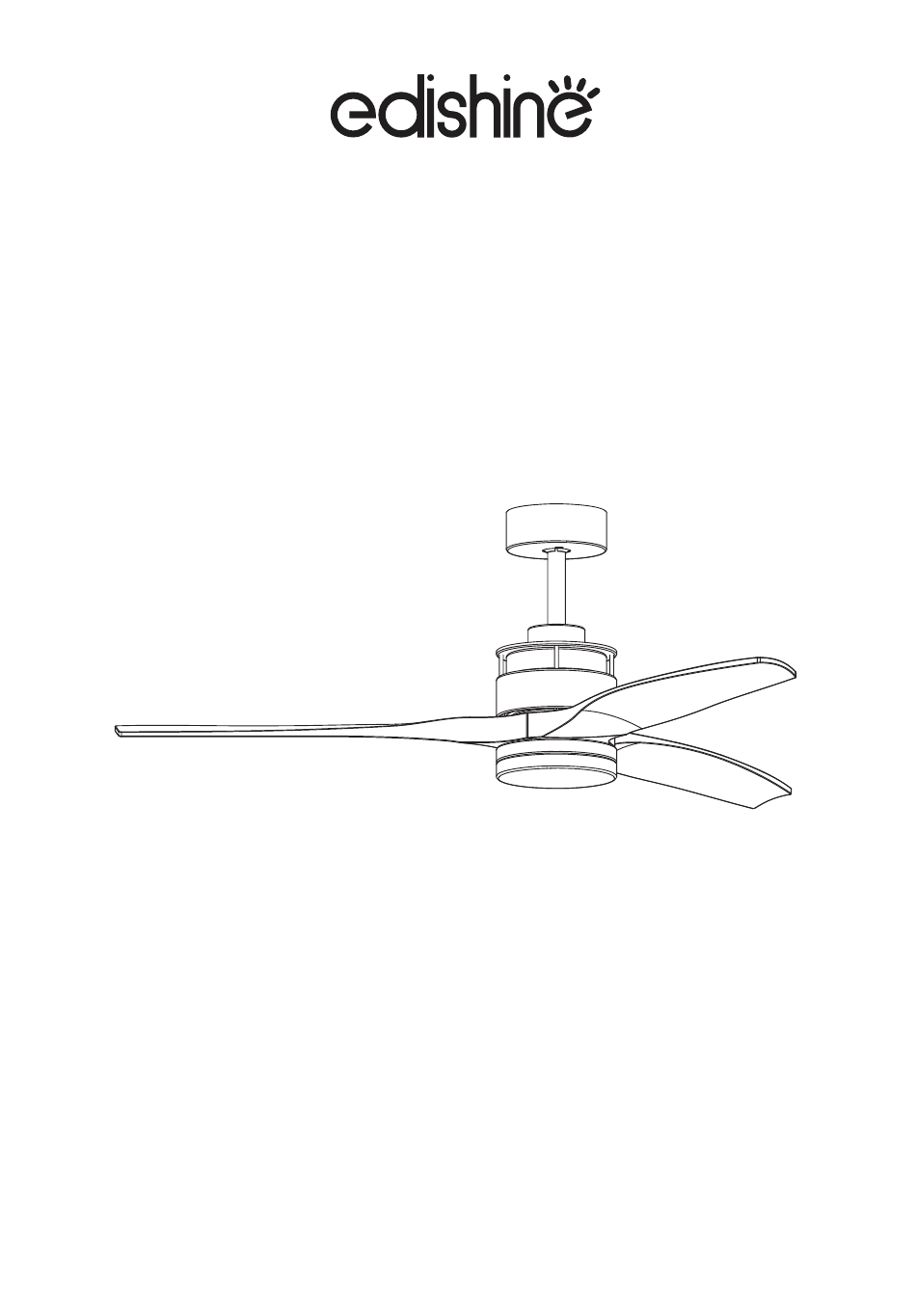

- Page 1 Ceiling Fan With Light SKU: HCFM01A [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V31120...
-
Page 2: Parts Inventory
READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION. SAVE THESE INSTRUCTIONS. Use only edishine replacement parts. 1. To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, anduse only the hardware supplied. - Page 3 Canopy Downrod and hanging ball Downrod Hanger bracket Decorative covers Motor Blade Lamp panel Glass shade LED light source Remote control Spiral package Blade screws...
-
Page 4: Installation Preparation
Installation Preparation To prevent personal injury and damage,ensure that the hanging location allows the blades a clearance of 2.3m from the floor and 76cm from any wall or obstruction.Be sure the outlet box is securely attached to the building structure and can support the full weight of the fan. Preparing the Fan Site Downrod Installation This fan can be mounted with a downdrod on a normal or vaulted ceiling.The hanging length... -
Page 5: Installing The Hanger Bracket
Installing The Hanger Bracket Please drill φ8mm hole on the concrete ceiling, and insert the bolt.Align bracket with the hole, then tighten with nut. -
Page 6: Assembling And Hanging The Fan
Assembling and Hanging the Fan If you wish to extend the hanging length of your fan, you must remove the hanging ball from the 6 inch downrod provided to use with an extended downrod (included) . (If you wish to use the 6 inch downrod,please proceed to instructions below.) To remove hanging ball, loose set screw on hanging ball and remove pin and clip. -
Page 7: Remote Control Connection
Place downrod into the motor housing yoke and ew-insert pin and clip that were previously removed. Tighten yoke set screws and nut securely.Lower canopy to motor housing. Remote control connection... -
Page 8: Canopy Assembly
Canopy Assembly Raise canopy to hanging bracket, aligning loosened screws in hanging bracket with slotted holes in canopy. Twist canopy to lock. Reinsert screws and secured all screws with screwdriver. With hanging bracket secured to the outlet box and able to support to fan, you are now ready to hang your fan. -
Page 9: Led Panel Assembly
Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades. Align blade holes with motor screw holes, Securing tighten all the screws once all the blades are attached. Before securing screws permanently, repeat with remaining blade arms. Note: Tighten blade screws twice. - Page 10 Decorative Pan Inventory Rotate the lampshade clockwise to connect to the lamp plate together.
-
Page 11: Remote Control Operation
A: Please press button 2 to turn on/off the light. Q: How to adjust the airflow of the fan? A: Please press button 3/4/5/6/7/8 respectively. Edishine provides you with 1-6 levels of wind speed gears, providing you with multi-level comfortable airflow options. -
Page 12: Functional Operation
Q: How to realize the automatic cycle adjustment of wind speed? A: Please press button 15 , edishine provides you with fan 1-6 speeds of airflow automatic circulation adjustment, closer to the natural wind state, ensures more comfortable living environment. -
Page 13: One Year Limited Warranty
Q: How to pair/unpair 1 remote control with multiple ceiling fan with light? A: Simultaneously power multiple ceiling fan with light, repeat the above steps to complete. Q: How to achieve the opening/closing of the buzzer sound? Turn On: Press and hold remote control button 2 for 3 seconds.
