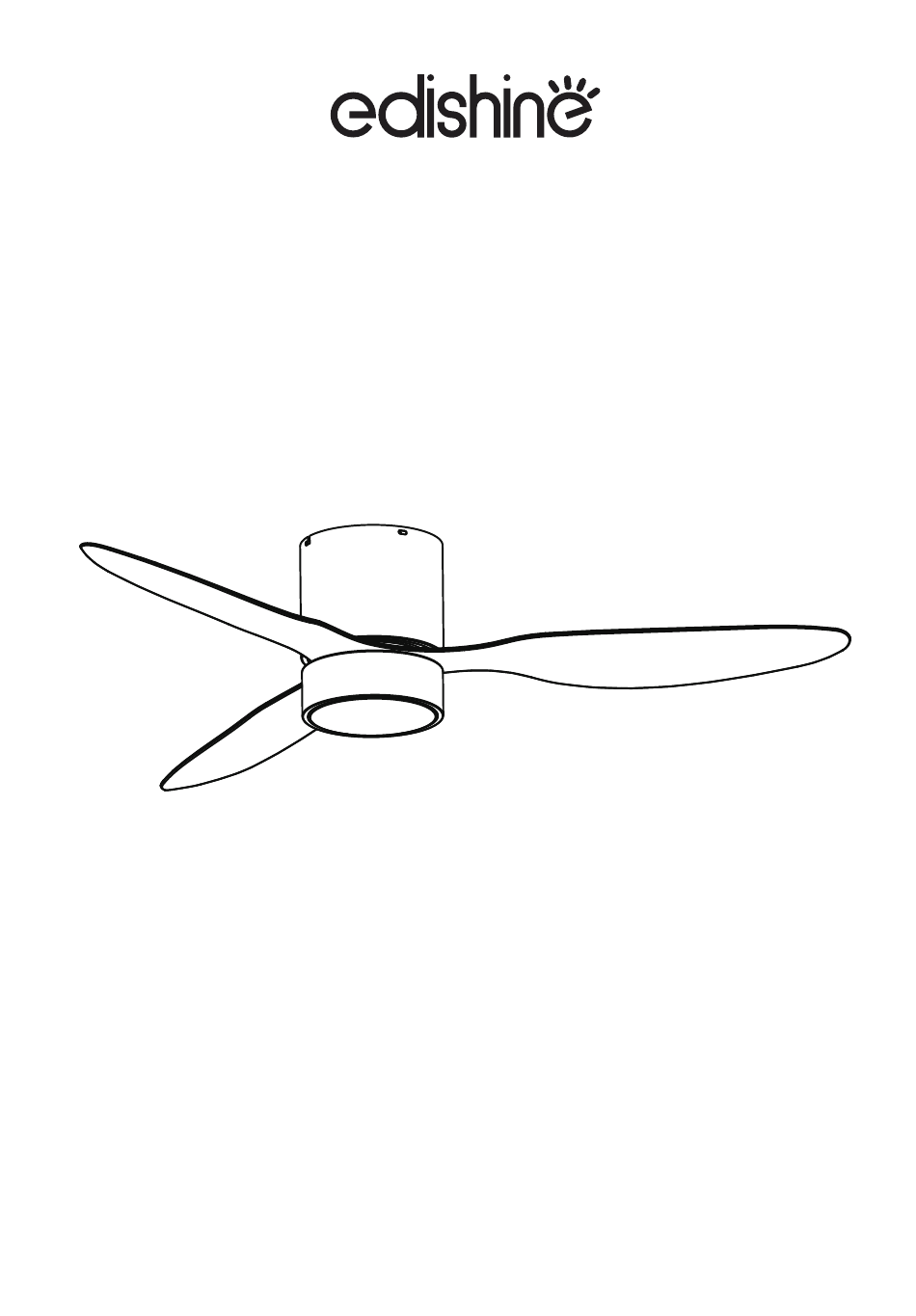

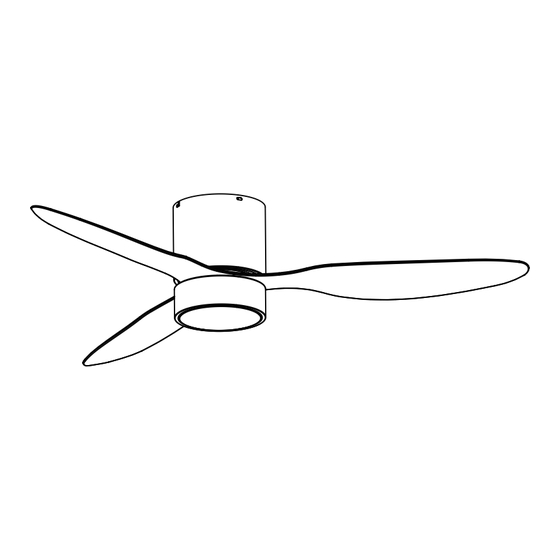

- Page 1 Ceiling Fan With Light SKU: HCFM02A [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V40117...
-
Page 2: Parts Inventory
READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION. SAVE THESE INSTRUCTIONS. Use only edishine replacement parts. 1. To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied. -
Page 3: Hardware Included
Hardware Included Mounting plate screws Spring washers Flat washers Plastic wire nut Balancing kit Blade screw Cable screw Flat washer... -
Page 4: Package Contents
Package contents Mounting plate Light kit Light cover Fan-motor assembly Blade Remote control REMOVE PLASTIC INSERTS Remove 6 screws and 6 plastic inserts from the motor.And keep 6 screws for later use. - Page 5 BLADE ASSEMBLING One blade at a �me,Align the blade with the 2 holes in the motor, �ghten screws securely. Repeat for the remaining 2 blades. LIGHT KIT ASSEMBLING ② ③ ① Remove 3 screws from the motor. Insert the motor plug into the LED board slot,and then install the light kit to the motor with 3 screws.Align groove in the light cover with ridge in the light kit.
- Page 6 REMOVE SCREWS FROM MOUNTING BRACKET 100%(completely) remove 2 screws from the moun�ng plate for later use. remove 2 screws from the moun�ng plate. MOUNTING PLATE ASSEMBLING Outlet box Moun�ng Plate Flat Washers Spring Washers Moun�ng Plate Screws...
-
Page 7: Make Electrical Connections
Warning:Failure to disconnect power supply prior to installa�on may result in serious injury. For safety and best opera�ng results,recommend you have a qualified electrician install this fan. Secure moun�ng plate to outlet box by �ghtening moun�ng screws & washers. The ceiling fan must be installed in a loca�on with a minimum of 300mm spacing from the �p of the blade to the nearest objects or walls. - Page 8 Hang the hole of the motor cover into the hook of mounting plate. WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. Make the wire connection between the Fan and power supply. Make sure all connections are secured.
- Page 9 SIZE OF PRODUCT 7.56in 7.48in 52in...
-
Page 10: Remote Control Operation
A: Please press button 2 to turn on/off the light. Q: How to adjust the airflow of the fan? A: Please press button 3/4/5/6/7/8 respectively. Edishine provides you with 1-6 levels of wind speed gears, providing you with multi-level comfortable airflow options. -
Page 11: Functional Operation
Q: How to realize the automatic cycle adjustment of wind speed? A: Please press button 15 , edishine provides you with fan 1-5 speeds of airflow automatic circulation adjustment, closer to the natural wind state, ensures more comfortable living environment. -
Page 12: One Year Limited Warranty
Q: How to pair/unpair 1 remote control with multiple ceiling fan with light? A: Simultaneously power multiple ceiling fan with light, repeat the above steps to complete. Q: How to achieve the opening/closing of the buzzer sound? Turn On: Press and hold remote control button 2 for 3 seconds.
