Summary of Contents for edishine HCFM01B

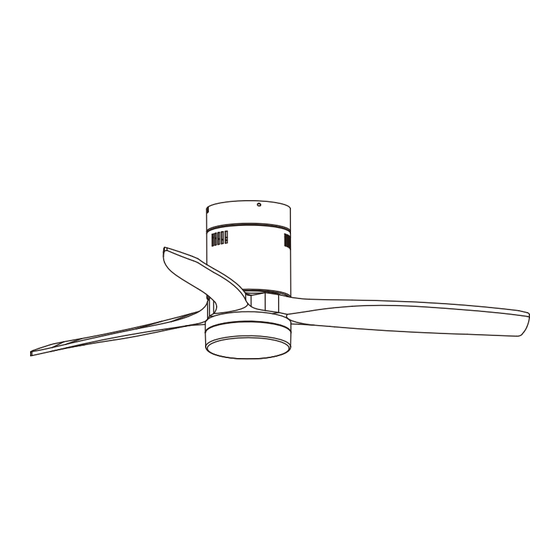

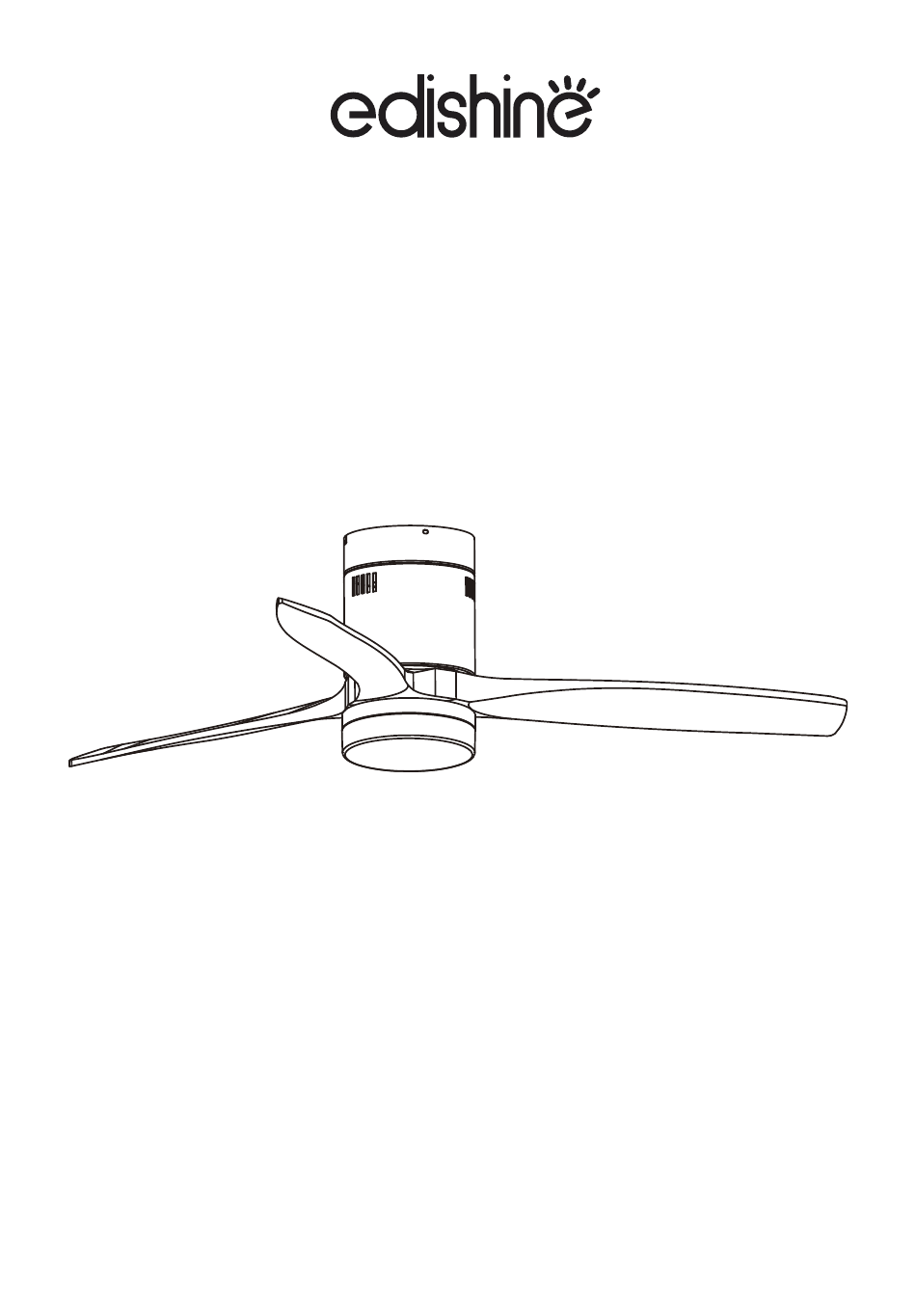

- Page 1 Ceiling Fan With Light SKU: HCFM01B [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V31120...
-
Page 2: Parts Inventory
READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION. SAVE THESE INSTRUCTIONS. Use only edishine replacement parts. 1. To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, anduse only the hardware supplied. - Page 3 Hanger bracket Lamp panel Glass shade LED light source Blade Motor Spiral package Blade screws Remote control...
-
Page 4: Installing The Hanger Bracket
Installing The Hanger Bracket Φ Please drill 8mm hole on the concrete ceiling, and insert the bolt. Align bracket with the hole, then tighten with nut. -
Page 5: Remote Control Connection
Remote Control Connection... -
Page 6: Blade Assembly
Blade Assembly Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades.Align blade holes with motor screw holes, securing tighten all the screws once all the blades are attached. Before securing screws permanently, repeat with the remaining blade arms. NOTE: Tighten blade screws twice. - Page 7 Lamp Shade Assembly Restore the cover and the lamp shade back to the LED pan. Decorative Panel Inventory Rotate the lampshade clockwise to connect to the lamp plate together.
-
Page 8: Remote Control Operation
A: Please press button 2 to turn on/off the light. Q: How to adjust the airflow of the fan? A: Please press button 3/4/5/6/7/8 respectively. Edishine provides you with 1-6 levels of wind speed gears, providing you with multi-level comfortable airflow options. -
Page 9: Functional Operation
Q: How to realize the automatic cycle adjustment of wind speed? A: Please press button 15 , edishine provides you with fan 1-6 speeds of airflow automatic circulation adjustment, closer to the natural wind state, ensures more comfortable living environment. -
Page 10: One Year Limited Warranty
Q: How to pair/unpair 1 remote control with multiple ceiling fan with light? A: Simultaneously power multiple ceiling fan with light, repeat the above steps to complete. Q: How to achieve the opening/closing of the buzzer sound? Turn On: Press and hold remote control button 2 for 3 seconds.
