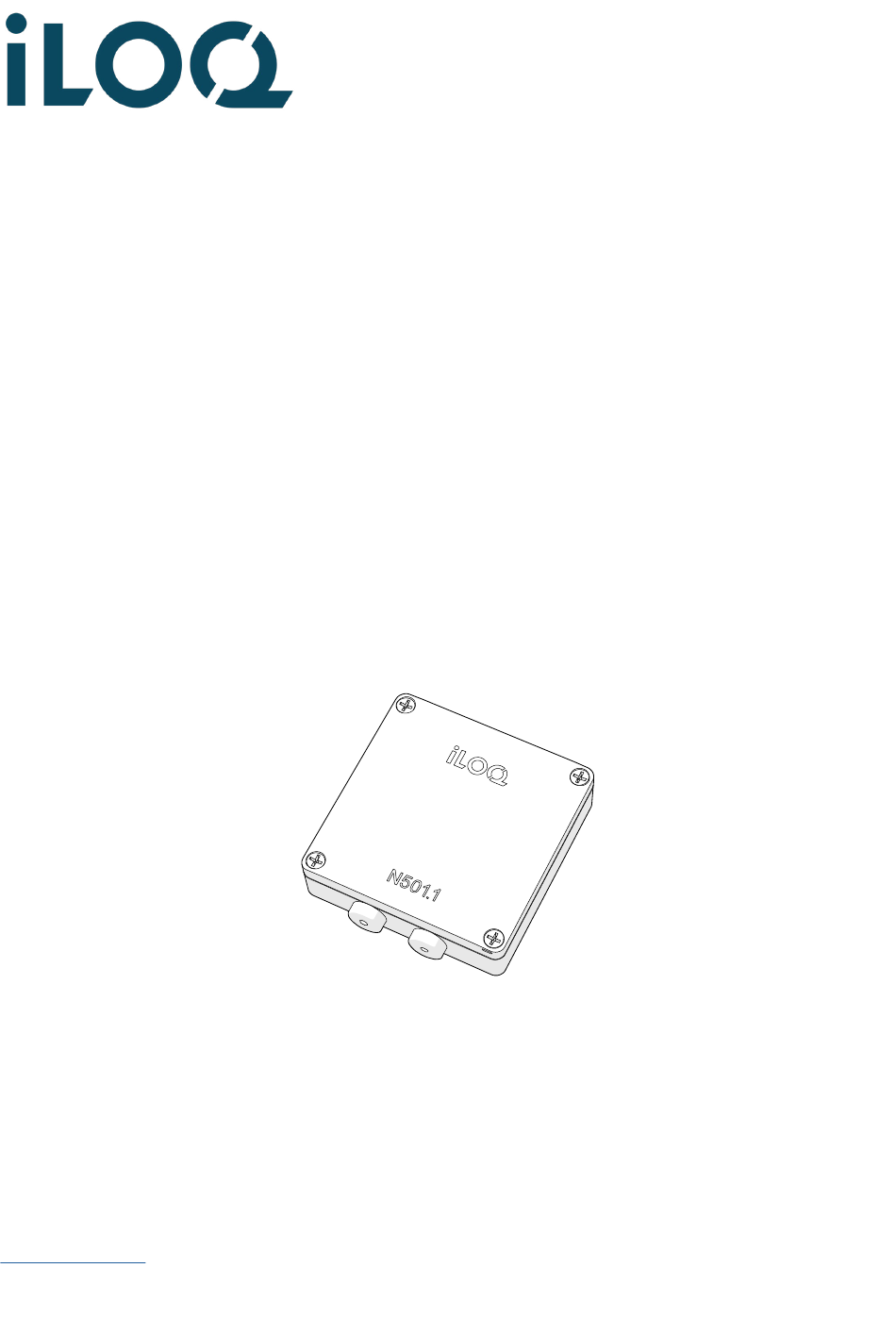

- Page 1 5 Series iLOQ N501.1 Standalone Door Module Installation and deployment 02/2025 Rev. 1.0 Document ID 319330 iLOQ Oy support.iloq.com...
-
Page 2: Table Of Contents
Installing the iLOQ N501.1 Standalone Door Module ....... 8 Wiring the system ....................9 N501.1 Connection points and additional information ......9 Example of wiring for the iLOQ N501.1 Standalone Door Module ..10 Deployment ......................11 Setup ....................... 11 Adding a network module to the iLOQ Manager ........ -
Page 3: Safety Information
General notice sign. Indicates particularly important information about the installation and deployment. Read these instructions carefully before installation. This information is to ensure your safety and the long lifetime of the products installed. Use protective gloves. Document ID - 319330 iLOQ 5 Series (iLOQ N501.1 Standalone Door Module) -
Page 4: General Warnings
Make sure that the power supply to the installation site is disconnected during installation. Do not switch on the power supply until the installation is complete. iLOQ devices must be installed and used effortlessly without the use of excessive force. -
Page 5: Important
2.3 Licenses The iLOQ N501.1 Standalone Door Module has its own license and it does not require a separate online license. More detailed information on licenses is available in the iLOQ Partner Portal and in the iLOQ 5 Series product price list. -
Page 6: Iloq N501.1 Standalone Door Module Modem Type
LARA modem R202 (designed mainly for operation in America on LTE and 3G networks) supporting the following LTE bands and frequencies: • Band 12 (700 MHz) • Band 5 (850 MHz) • Band 4 (1700 MHz) • Band 2 (1900 MHz) Document ID - 319330 iLOQ 5 Series (iLOQ N501.1 Standalone Door Module) -
Page 7: Installation Of The Devices
Other information such as door status information can be collected via the iLOQ N501.1 inputs to the iLOQ Cloud. From a system point of view, the iLOQ N501.1 is a lock that needs to be programmed to operate as a lock. Initial programming is done via a connected iLOQ NFC Reader’s NFC using the iLOQ Manager software and the iLOQ P55S.1 Programming key. -
Page 8: Installing The Iloq N501.1 Standalone Door Module
2. Use the fixing points at the bottom of the screw channel to attach the enclosure to the wall. 3. Close the enclosure cover with the plastic fixing screws, after finalizing the setup and programming. Document ID - 319330 iLOQ 5 Series (iLOQ N501.1 Standalone Door Module) -
Page 9: Wiring The System
NOTE! Use twisted pair and shielded cables when possible. Recommended cable types and lengths can be found in the iLOQ 5 Series Online System Planning Guide. 4.1 N501.1 Connection points and additional information •... -
Page 10: Example Of Wiring For The Iloq N501.1 Standalone Door Module
4.2 Example of wiring for the iLOQ N501.1 Standalone Door Module Operating/setup switch Antenna connector SIM-card slot K1-relay (lock Light indicators device control) K2-relay (lock device control) NO COM NC Serial number Power out Power in On/standby switch Inputs IN1, IN2, EXT & COM... -
Page 11: Deployment
5. Deployment Install and connect the iLOQ N501.1 Standalone Door Module and its bus devices according to chapters 3 and 4. All devices must be successfully connected before performing the setup. 5.1 Setup This chapter describes how to prepare the iLOQ N501.1 Standalone Door Module and connected bus devices for programming. - Page 12 2. Make sure that the light indicators on the iLOQ N501.1 Standalone Door Module are as depicted in the following picture. This indicates that the bus configuration has been saved successfully. NOTE! If the light indicators are not as they are shown in the picture, do not start the programming.
-
Page 13: Adding A Network Module To The Iloq Manager
Module by programming it. To continue to programming, the previous steps have to be successfully done and the iLOQ N501.1 power has to be turned ON. Make sure that the devices are still connected, the setup has been completed and the iLOQ P55S.1 Programming Key has the programming packet as described in the chapter “Adding a network module in the iLOQ Manager”. - Page 14 • It takes approximately 5–10 seconds to upload the programming package from the Programming Key to the iLOQ N501.1 via the iLOQ NFC Reader. When the programming is ready, the Reader will beep and a green light will appear. If a red light is shown together with an error beep - try again.
- Page 15 3. Switch the iLOQ N501.1 On/Standby switch to STANDBY and then back ON. 4. Wait until all of the iLOQ N501.1 light indicators are green. If they are all green, the deployment has been completed and the devices are ready for use.
-
Page 16: Iloq Manager
6. iLOQ Manager This chapter describes the most important features and settings that must be performed for iLOQ Online devices, both during the deployment and when maintaining the system. This manual does not cover calendar control related settings, such as: •... -
Page 17: Typical Things To Look At In The Iloq Manager
→ This can be used to check if the device has been online or not → Indicates the last date/time when the N500/1 Net Bridge has made a connection with the iLOQ Cloud, typically this is done every 15 minutes Software version: 1. -
Page 18: Updates
The installation time of the update is defined by the admin of the system in the locking system setting of the iLOQ Manager. The default update time is 02:00 am based on the locking system time zone. Admins can also choose to manually update the Online devices from the network module view as soon as the update is available. -
Page 19: Typical Cases In The Field
2. Perform the setup process (see chapter “Setting up the iLOQ N501.1 Standalone Door Module for programming”). Adding an iLOQ N501.1 as a lock after programming an iLOQ N501.1 as a network module has failed: • If, for example, adding a network module has failed, you might be in a situation when you have an iLOQ N501.1 network module in the system, but the iLOQ N501.1 lock is missing... -
Page 20: Led Functions On The Iloq Nfc Reader
Connection to the door module is OK, which means • Amber light that the cabling is OK and the setup is OK / iLOQ Cloud connection is lost (connection to the internet) Indicates that there is no connection to the door •... -
Page 21: Replacement And Disposal
Decommissioned iLOQ products containing electronics and circuit boards, such as iLOQ Cylinders, iLOQ Keys, net bridges, door modules, key and NFC readers, and relay cards, must be recycled at an electrical and electronic equipment collection point. -
Page 22: Compliance
L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Document ID - 319330 iLOQ 5 Series (iLOQ N501.1 Standalone Door Module) - Page 23 5 Series iLOQ N501.1 Standalone Door Module Installation and deployment iLOQ support.iloq.com Elektroniikkatie 10 90590 Oulu Finland...
