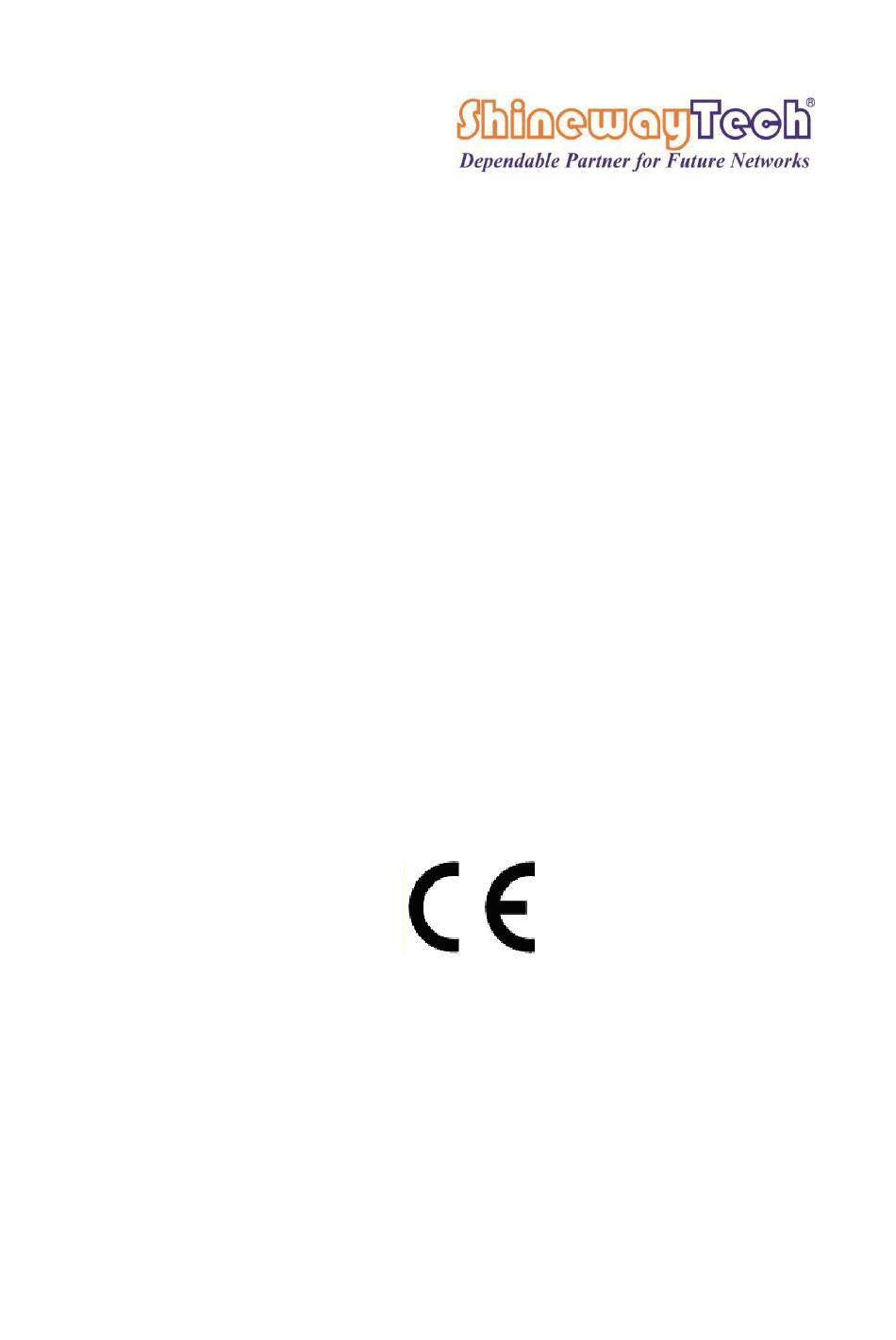

- Page 1 OFI-50 Series Optical Fiber Identifier User Manual Shineway Technologies, Inc.
-
Page 2: Table Of Contents
Table of Contents Description of Products ..........2 Specifications ............... 3 Standard Configuration ..........4 Function description ............. 4 Instruction ..............5 Cautions ................ 5 Faults and handling methods ........6 Contacting Customer Service ........7... -
Page 3: Description Of Products
1. Description of Products OFI–50 uses optical fiber sensing principle to confirm the target fiber. It can quickly identify deep buried, overhead and pipe fiber cable without any destroy, and provide a simple method for maintenance personnel. Users only need gently knock on cable, when knocking to the target cable, OFI-50 can clearly hear the knock from earphone, which can accurately identify the target cable. -
Page 4: Specifications
Features： Easy to use, reliable，non destructive optical cable Fast identification of deep buried, overhead and pipe fiber cable Built-in intelligent mode, knock in the measured cable screen showed positive and negative Pyramid strength; output the notification sound ... -
Page 5: Standard Configuration
3. Standard Configuration Description Quantity Optical Fiber Identifier Earphone SC/APC-FC/APC patch cord AC adapter Operation Instruction Cotton swabs Portable Soft Bag 4. Function description ① “CHARGE”indicator light: the light on indicates charging. ② “POWER”indicator light: the light indicates that the identifier is on. ③... -
Page 6: Instruction
5. Instruction Connect the cable under test to the meter. Talk to the assistant who is assisting at the remote end. The assistant should regularly tap the cable.When there are many cables affecting the test, it is best to number the cables and click in order. -
Page 7: Faults And Handling Methods
APC end of the cable 8. Contacting Customer Service Please check our web site (www.shinewaytech.com) for updates to this manual and additional application information. If you need technical or sales support, please contact local Shineway Technologies Customer Service.
