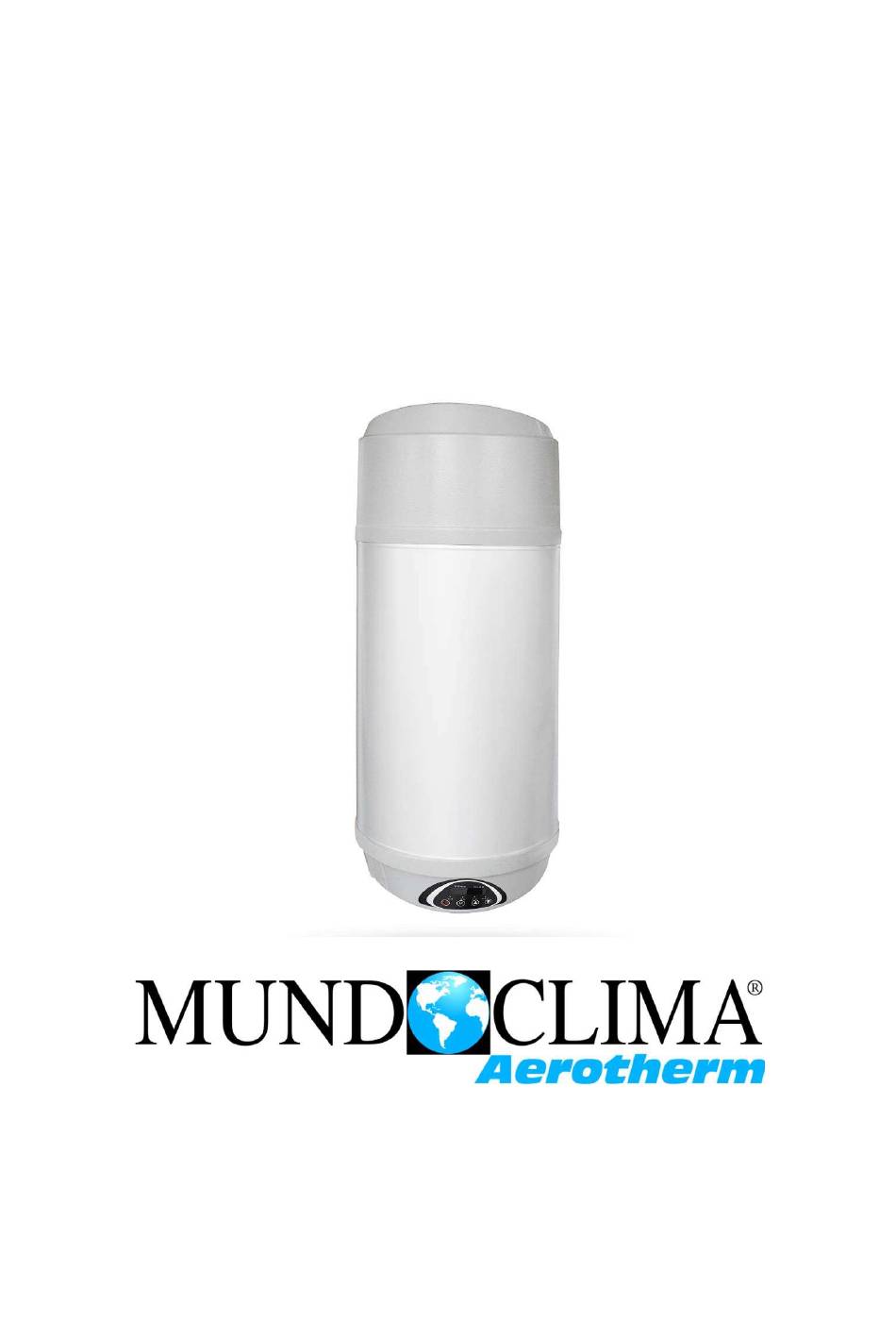

- Page 1 SHW WALL HEAT PUMP MUNDOCLIMA AEROTHERM User and Installation Manual CL45091 BC 80L Wall-mounted CL45092 BC 100L Wall-mounted Domestic use...
-
Page 2: Safety Instructions
Safety instructions WARNING It is necessary a correct connection to ground in the house. There must also be protection against electric shock. Do not remove the signs and labels attached to the unit. WARNING The heat pump must be installed by qualified personnel to avoid a bad installation that may cause water leakage, electric shock or fire. - Page 3 Correct location of the unit The Mundoclima Aerotherm 80 and 100 L Mural Heat Pumps are for domestic use. The unit can be installed inside or outside the house. If the unit is outdoors, it should remain well protected from the sun and rain. It is recommended to install it in areas such as garage, basement, gallery or laundry.
- Page 4 Safety instructions To avoid material damage and to use the unit correctly and safely, please read this manual carefully and follow the instructions. After a complete understanding of all the content (symbols and icons), read the text and observe the rules. Meaning of the symbols Symbols Misuse of this unit can cause death.
- Page 5 The unit should not be installed near flammable gases, it could cause leaks. If combustible gas accumulates around the unit, it may cause a fire. Location selection Installations to be aware of Make sure the base is strong and solid. Unit well placed on a level surface.
- Page 6 Warning The installation must be carried out by a specialized technician. Otherwise a bad installation can cause leaks, fires, among others. Select a location where direct sunlight or other sources of direct radiation do not fall upon the unit. If you cannot avoid it, install a cover to prevent sunlight from falling upon the machine. Install the unit firmly or it may cause noise or shocks due to improper installation.
- Page 7 1. Characteristics 1.1 Dimensions Measurements (mm, Model Net weight (kg) Power supply diameter X height) CL45091 - BC 80 L N520 × 1215 220-240 V~, 50 Hz, 1 Ph CL45092 - BC 100 L N520 × 1340 220-240 V~, 50 Hz, 1 Ph 1.2 External appearance 1.3 Energy efficiency...
- Page 8 2. Wall heat pump Mundoclima Aerotherm for domestic hot water 2.1 Features Security: 1. The unit is isolated between the water circuit and the refrigerant circuit, without risk of leakage between the two fluids. 2. No potential contamination is possible; the coil condenser is wrapped around the inner tank.
-
Page 9: Refrigeration Circuit
2.2 Refrigeration Circuit Diagram of the system: High temp. Compressor Compressor Hot water Air from outside Duct Tank Air fin Optional discharged Cold air exchanger air space needed Water supply Low temp. Throttling Liquid device Working principles: 1. The refrigerant is compressed in steam at high temperature and high pressure when it passes through the compressor. - Page 10 Compact and high-performance design Unit with energy saving, the average of the total consumption is only 75% of the water heater with Aerotherm and 25% of the water heater with resistance. Environmental protection and safety Unit electrically driven by a compressor that heats the domestic water through the condensation of the refrigerant gas.
- Page 11 Model BC 80 L BC 100 L Heating capacity Water tank capacity 80 L 100 L 0.27 Consumption Current 230 V~/50 Hz Electrical supply Number of compressors Rotating Compressor Temp. approx. water outlet Max. Pressure Noise dB(A) Dimensions water in/out ½...
- Page 12 Thermal performance curve vs. ambient temperature COP wall heat pump 80 and 100 liters: Under test condition; Ambient Temperature of Dry bulb 15 ºC & Wet bulb 13 ºC; Water inlet 15 ºC Water outlet 45 ºC...
-
Page 13: Wiring Diagram
2.6 Wiring Diagram... - Page 14 2.7 Installation Transport To avoid scratching or deformation of the surface of the unit, place protective panels around the contact surface. Do not touch the blades with your fingers or other objects. Do not tilt the unit more than 60º when moving it; keep it vertical when installing it. If it exceeds 60º...
- Page 15 Maintenance space Air flow outlet Air flow inlet 400mm 600mm P&T Valve overheating protector Hot water outlet Condensing water water in Filter drainage pipe One way valve Drainage water The smallest distance allowed: To avoid affecting the air inlet and outlet of the machine, confirm the installation distance as shown in the figure.
- Page 16 Hydraulic System If the unit is installed in a place where the outside temperature is below the freezing point, all hydraulic components must be isolated Water inlet and outlet pipes: The specification of the water inlet or outlet is R1/2", with external thread.
- Page 17 If the inlet water pressure is less than 0.15 MPa, a pump must be installed in the water inlet. If the inlet water pressure is greater than 0.5 MPa, a pressure reducing valve must be installed in the water inlet pipe. Condensates may drip from the unit if the drain pipe is clogged, a condensate tray should be placed as explained below.
- Page 18 Compatibility with a photovoltaic solar energy installation for self-consumption network If we have a potential free signal that we can connect to PV Input, the equipment will start up in Eco mode to take advantage of surplus electric power from a photovoltaic network installation. The unit is provided standard with a cable that acts as a bridge between G106 and GND, assigned as PV Input.
- Page 19 2.9 Machine functions Thermal function x The hot inlet water absorbs heat from the surrounding air and transfers heat to the heat exchanger side. When the ambient temperature drops, the heating capacity may decrease accordingly. Protection 3 minutes x When the unit is turned off and the user turns it on again, it will take approx. about 3 min. to turn on.
-
Page 20: Operation Of The Control Panel
3. Diagram of the functions of the control panel Outlet water temperature Setting temperature Standard mode indicator Energy saving mode indicator light(green) light(yellow) Running indicator Rapid heating mode indicator light(red) light(red) Modes choosing button Decrease button Power on/off button Increase button 3.1 Operation of the control panel 1 Switched on When the unit is turned on, the unit will be paused or running, this will depend on the last mode of the unit. - Page 21 The functions of three different modes are as follows: Standard mode (Hybrid): When the yellow light is on, the unit operates in standard mode. The unit works with the compressor and only uses the resistance when it is necessary due to a low outdoor temperature.
-
Page 22: Parameters Settings
Parameters settings Power on and press " " to rise the set point, press " " to decrease the set point. Water out temp. Set point DOWN Press " " to rise the set point Press " " to decrease the set point... -
Page 23: Troubleshooting
Automatic adjustment of the set point The factory setting mode is automatic. The unit will change the value because a lower temp. can save energy. A correct set point value can save more energy in the summer and this setting will automatically increase for more comfort in the winter. The value can be adjusted manually, use the arrow up or down to adjust it. - Page 24 Servicing Check unit components and system pressure frequently (1 time per year). If there are faults, repair and replace immediately. Check if the power cord is tight, the resistance does not work well and it smells funny. If so, repair and replace immediately. Do not turn off the unit if you are not going to use it for a long time.
- Page 25 Why the compressor does not work when the unit is turned on? Solution: When the unit is turned on after it has been stopped, the unit will not work until 3 minutes have passed. It is the automatic protection of the unit. When the ambient temperature is lower than 2 °C, the compressor stops and the electrical resistance will continue to work.
- Page 26 WARNING This type of unit is an electrical equipment. Make sure that the ground connection is correct before use. If there is a bad ground connection or it is non-existent, please do not use the unit. If you cannot be sure that the ground wire is in good condition, ask a specialized technician for help.
- Page 27 4. Warranty SALVADOR ESCODA S.A. guarantees the equipment Mundoclima Aerotherm BC 80 and 100L Mural for TWO YEARS from the invoice date, against any manufacturing defect. This warranty does not cover faults or deficiencies caused by improper use or improper installation of the equipment according to the instructions in this manual.
- Page 28 SALVADOR ESCODA S.A. ® BARCELONA - Sales and Head Offices: Provença, 392, 2 floor - 08025 BARCELONA Tel. +34 93 446 27 80 - Fax +34 93 456 90 32 www.salvadorescoda.com...
