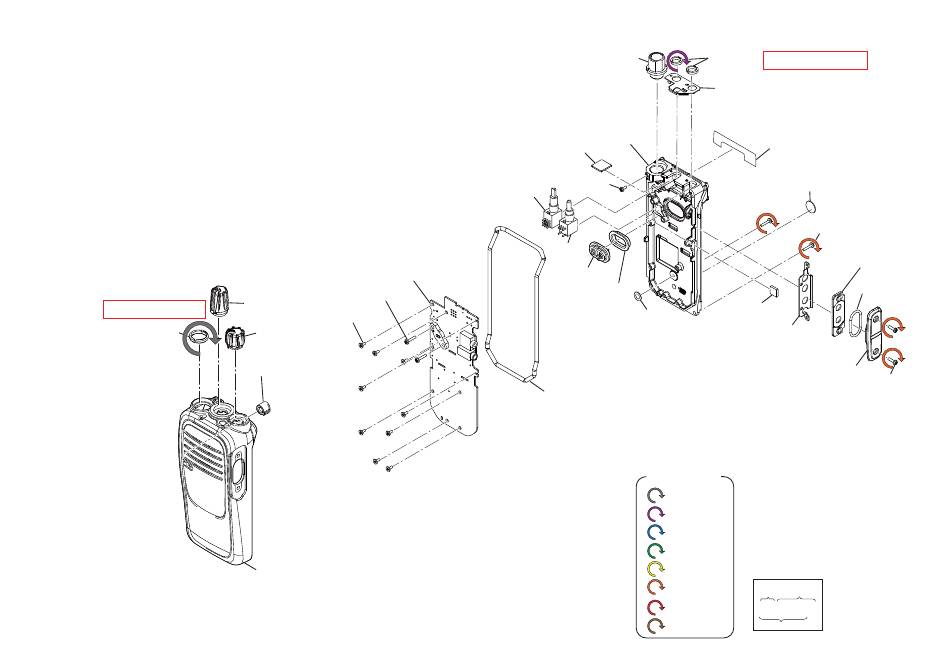

Icom IC-F1000D Service Manual page 26

Remove with; MP24(CHASSIS)
(8610014710)
"ICOM Driver (K)" (8960000110)
MP19(CHASSIS)
MP25(CHASSIS)
(8830003440)
(8610014720)
MP12(CHASSIS)
(8930089281)
MP2(CHASSIS)
(8210030881)
MAIN UNIT
MP45(CHASSIS)×2
(8810008761)
MP41(CHASSIS)×9
(8810008971)
J1(CHASSIS)
(6910021491)
MP1(CHASSIS)
(8010023041)
ANT UNIT
MP44(CHASSIS)
S1(MAIN)
(8810009511)
(2250000900)
R141(MAIN)
(7210003700)
EP7(MAIN)
(6910024510)
MP26(CHASSIS)
(8930089270)
MP15(CHASSIS)
(8930088670)
MP22(CHASSIS)
(8930091600)
Tightening torque
: <0.8 (N･m)>
: <0.7 (N･m)>
: <0.6 (N･m)>
: <0.5 (N･m)>
: <0.4 (N･m)>
: <0.3 (N･m)>
: <0.2 (N･m)>
: <0.1 (N･m)>
MP34(CHASSIS) Remove with;
(8830001701)
"ICOM Driver (AG)" (8960000560)
MP11(CHASSIS)
(8930089300)
MP30(CHASSIS)
(8930090130)
MP16(CHASSIS)
(8930084870)
MP40(CHASSIS)×2
(8810010850)
MP7(CHASSIS)
(8930089240)
MP39(CHASSIS)
(8930085330)
MP51(CHASSIS)
(8930090110)
MP6(CHASSIS)
(8930089290)
MP49(CHASSIS)
(8210029630)
MP43(CHASSIS)x2
(8810007391)
