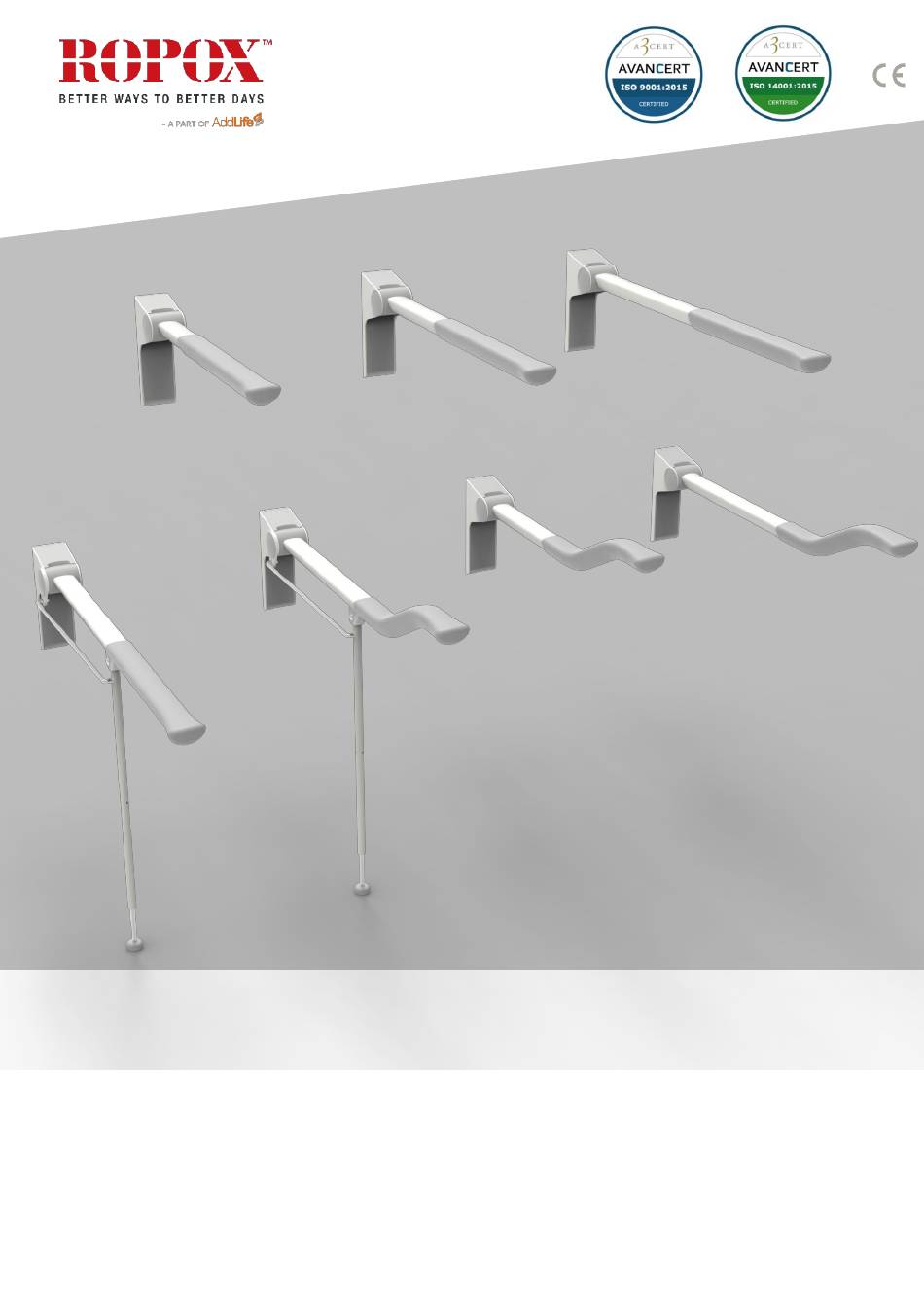

- Page 1 Toilet Support arms User manual This folder should always be kept with the product TF 200.0123_eng / Rev 01 / Date 01-01-2025...
-
Page 2: Table Of Contents
Content Key to symbols ............................3 Safety ................................. 3 Product labelling ........................5 General requirements ..........................6 3.1 Product information ........................6 3.2 Product description ........................6 3.3 Intended use..........................7 3.4 Intended operator .......................... 7 3.5 Clinical functions ........................... 7 3.6 Product dimensions ........................ -
Page 3: Key To Symbols
1. Key to symbols Warning Indication of a potentially dangerous situation. If not avoided, it can result in serious injury or death. Caution Indication of a potentially hazardous situation that may result in minor or moderate bodily injury. The symbol is also used to warn of improper use. Important This symbol draws attention to the correct use and handling of the product. - Page 4 The information in this manual is based on correct installation in accordance with the installation instructions for this product. Ropox cannot be held responsible if the product is used in a way that differs from that stated in this manual and/or installation instructions.
-
Page 5: Product Labelling
2.1 Product labelling This product is CE labelled in accordance with: European Medical Devices Regulation (EU)2017/745 Council Directive 2011/65/EU, RoHS Manufacturer's name and address Production date Item number Serial number Refer to the manual for important safety-related information, warnings and precautions Do not dispose of as unsorted municipal waste. -
Page 6: General Requirements
3. General requirements 3.1 Product information Producent Ropox A/S Ringstedgade 221, DK-4700 Næstved +45 55 75 05 00 Email: Info@ropox.com Variants Item no. Model Length Color 40-40402 Straight 90cm Grey 05707581014758 40-40421 Wave 90cm Grey 05707581014772 40-40430 Straight w. support leg... -
Page 7: Intended Use
This product does not offer a clinically proven benefit to patients when used as intended by the manufacturer. 3.6 Product dimensions 40-40400 / 40-40405– Straight 66cm 40-40401 / 40-40406 – Straight 76cm 40-40402 / 40-40407 – Straight 90cm TF 200.0123_eng... - Page 8 40-40420 / 40-40425 – Wave 76cm 40-40421 / 40-40426 – Wave 90cm TF 200.0123_eng...
- Page 9 40-40430 / 40-40435 – Straight 90cm with support legs 40-40431 / 40-40436 – Wave 90cm with support legs TF 200.0123_eng...
-
Page 10: Instructions For Use
Max. user weight according to DS/ISO 17966 40-40400 / 40-40405: 250 kg 40-40401 / 40-40406: 250 kg 40-40402 / 40-40407: 250 kg 40-40420 / 40-40425: 250 kg 40-40421 / 40-40426: 250 kg 40-40430 / 40-40435: 330 kg 40-40431 / 40-40436: 330 kg Max. - Page 11 Please note All measurements are based on a fixed height of the toilet support of 800 mm above floor level. If this measurement is to be changed, the recommended measurements must be changed accordingly. Straight Wave The unit comes with a set (6 pcs) of screws and wall plugs that are intended for mounting on a concrete wall.
-
Page 12: Installation Instructions
4.2 Installation instructions 1. Use the included mounting template to mark the holes based on the desired height of the toilet seat. The dotted line on the template marks where the top of the handle will be. 2. Drill the holes and insert suitable wall plugs. 3. -
Page 13: Operating The Product
4.3 Operating the product The toilet support can rotate 90° to vertical position. The support is designed to be left in any position between 0° and 90° angle. Warning! Always position the product so that it can move freely through its intended arc without hitting anything. -
Page 14: Adjusting Friction Discs
Orientation of the toilet roll The toilet roll holder can be customised to hold the toilet roll in two different directions as desired The toilet roll holder must be removed before orientation can be changed 1. Push the holder up through the plastic bracket 2. -
Page 15: Safe Use
Ethanol-based disinfectants can also be used as long as product specifications and safety precautions are followed. The following products have been tested by Ropox and can be used as long as they are diluted according to the product instructions. 5.1 Pre-approved disinfectants... -
Page 16: Component List
Wall plugs and screws Please note! Ropox provides parts lists for extraordinary maintenance and repair beyond what is described in this manual. Repairs beyond what is described in this manual may only be carried out by Ropox authorised service personnel. -
Page 17: Accident/Incident Reporting
2. Permanent injury or disability 3. Necessary medical or surgical treatment to prevent life-threatening illness, permanent injury or disability 4. Foetal death, birth defects or congenital abnormalities. Ropox A/S Ringstedgade 221 DK-4700 Næstved Phone: +45 55 75 75 05 00 E-mail: info@ropox.dk...
