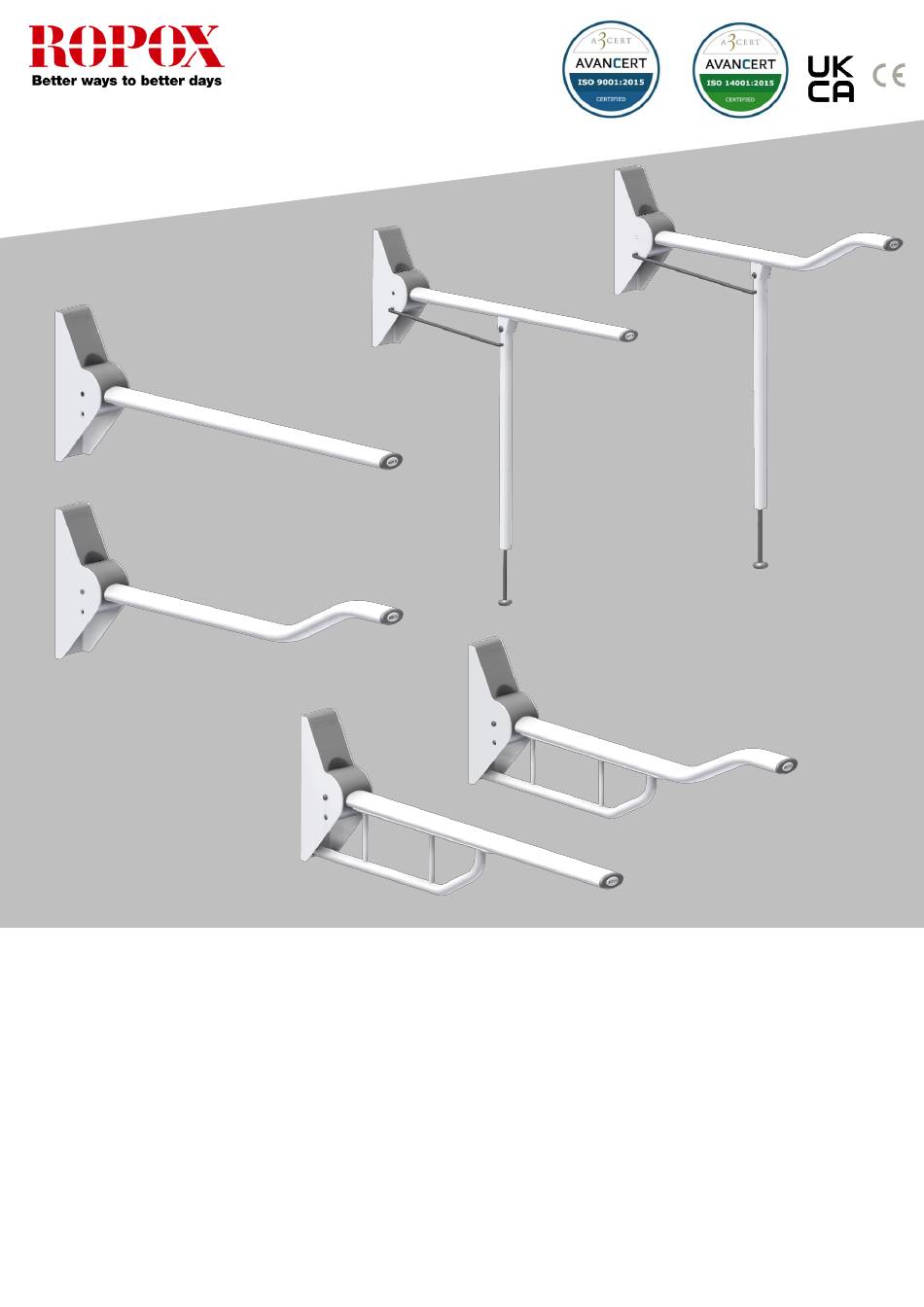

- Page 1 Ropox Toilet Support Arms User manual This manual should always be in close proximity of the product. TF 200.01.0041 / Dato 09-06-2022...
-
Page 2: Table Of Contents
Table of content Symbols used in this manual ........................3 General safety ............................3 Product Unit label ........................5 General requirements ..........................6 3.1 Product information ........................6 3.2 Product description ........................7 3.3 Intended purpose .......................... 7 3.4 Intended operator .......................... 7 3.5 Clinical functions ........................... -
Page 3: Symbols Used In This Manual
1. Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notification Symbol This symbol is used to notify correct use and handling of the product. - Page 4 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.
-
Page 5: Product Unit Label
2.1 Product Unit label Ropox Toilet Support Arm – Wave Fold-up, wall mounted, lenght 90cm This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments UK SI 2008 No. 1597 - The Supply of Machinery (Safety) Regulations 2008,... -
Page 6: General Requirements
Intended environments This product is to be used only in: Professional Healthcare Environment Homecare Environment Maximum user weight 40-40110 and 40-40115 = 190kg according to DS/EN ISO 40-40150 and 40-40151 = 255kg 17966:2016 40-40140 and 40-40145 = 385kg 40-40152 = 385kg... -
Page 7: Product Description
3.2 Product description Ropox Toilet Support Arms help create a stable support for when a user needs to get up, or for when sitting down. This helps and encourages the user to be more self-sufficient when going to the toilet. - Page 8 40-40120 TF 200.01.0041_eng...
- Page 9 40-40125 40-40140 40-40145 TF 200.01.0041_eng...
- Page 10 40-40150 40-40151 40-40152 TF 200.01.0041_eng...
- Page 11 40-40153 TF 200.01.0041_eng...
-
Page 12: Instructions For Use
4. Instructions for use 4.1 Installation interfaces All models of Straight and Wave (40-40110, 40-40115, ..20, ..25, ..40, ..45, ..50, ..51, ..52 and ..53) CONSTRUCTION The wall must be made of a material suited for screw mounting and approved for damp rooms. -
Page 13: Installation Of Product
Attached is the mounting template with an indication of the 6 mounting holes on the bracket. User heights (upper edge of toilet support) and installation heights (upper holes in template / bracket) 4.2 Installation of product Mark the holes in the mounting template based on the desired height. -
Page 14: Operating The Product
4.3 Operating the product Warning! The product should always be able to travel the full range of actuation without colliding with objects. Failing to do so will compromise the product stability. 4.4 Safety in use Caution ! • The toilet support arm becomes slippery when its wet. •... -
Page 15: Maintenance
Tradename Solution Acticlor plus 1000ppm S90 sanirens 1-3% peracid FUTUR, Alkalisk rens 1% Solution [pH 9,5] 6. Maintenance The toilet support arm is maintenance free. For safety reasons, however, we regularly recommend inspecting all bolt connections and moving parts to ensure that no parts are loose and that wall mounts are intact. -
Page 16: Environmental Protection
Notification! Ropox will make parts list and circuit diagrams available for extraordinary maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. 8. Environmental protection The product is not intended to be disposed as municipal waste.
