Related Manuals for Ropox Mobilio 40-31406-1
Summary of Contents for Ropox Mobilio 40-31406-1

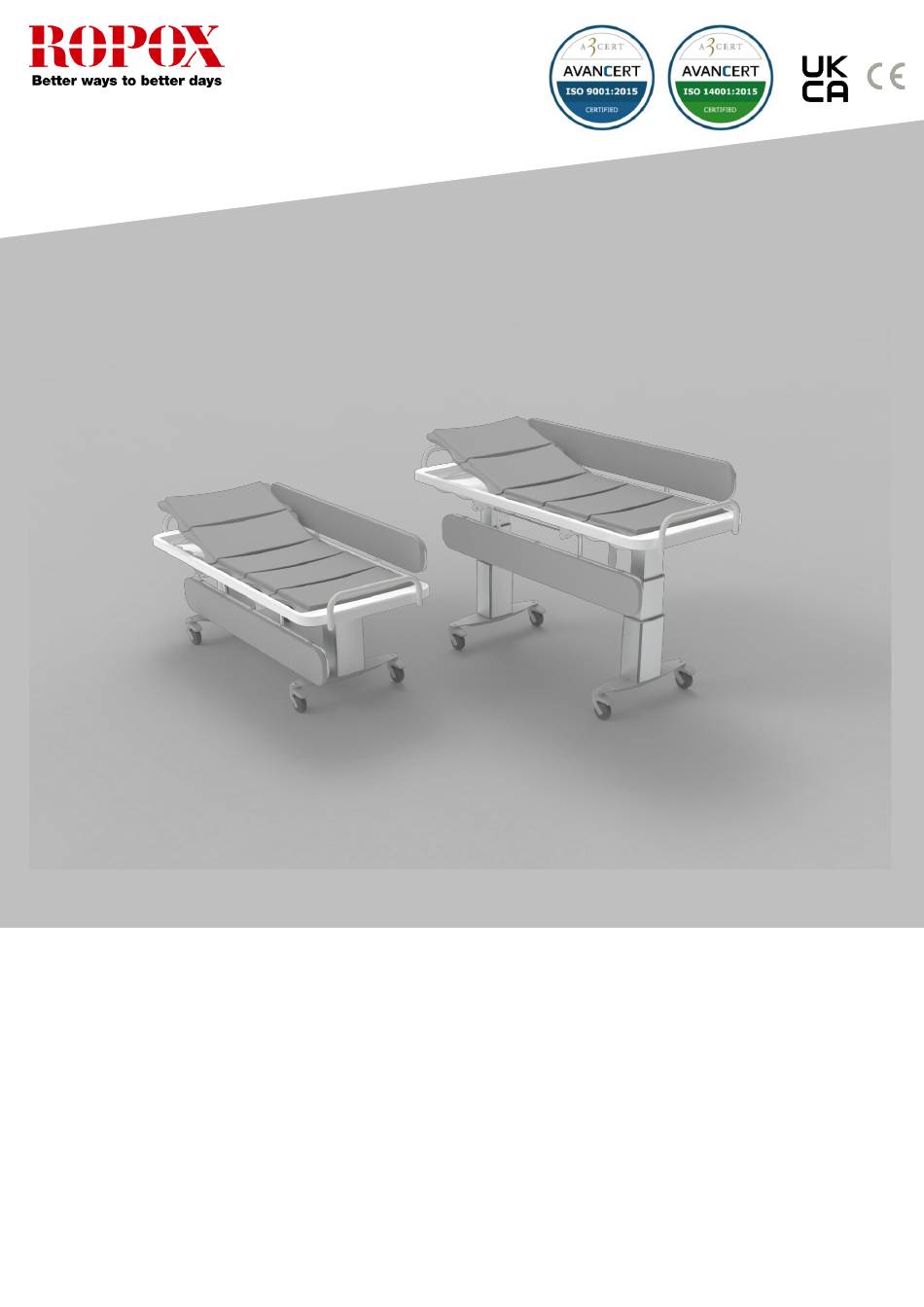

- Page 1 Ropox Mobilio Showerbed User manual This manual should always be in close proximity of the product. TF 200.06.0003_ENG / Date 25-07-2022...
-
Page 2: Table Of Contents
TF 200.06.0003_ENG Table of content Symbols used in this manual ........................4 General Safety ............................4 2.1 Product label ..........................6 3. General requirements..........................7 3.1 Product information ........................7 3.2 Intended use..........................9 3.3 Intended operator .......................... 9 3.4 Known contraindications ....................... 9 3.5 Dimensions .......................... - Page 3 TF 200.06.0003_ENG 10.4 Cables ..........................21 10.5 RF portable equipment ......................21 10.6 Compliance for emission and immunity standard ..............21 10.6.1 Emission class and group....................21 10.6.2 Immunity test levels ......................22 11. Complaints .............................. 23...
-
Page 4: Symbols Used In This Manual
TF 200.06.0003_ENG Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. - Page 5 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.
-
Page 6: Product Label
TF 200.06.0003_ENG 2.1 Product label This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments UK SI 2008 No. 1597 - The Supply of Machinery (Safety) Regulations 2008, and its amendments This product is CE-marked in accordance with: European Medical Device Regulation (EU)2017/745... -
Page 7: General Requirements
Operating and storing temperatures may not exceed -5 °C to 40 °C Consult manual before use 3. General requirements 3.1 Product information Manufacturer Ropox A/S Ringstedgade 221, DK-4700 Naestved +45 55 75 05 00 Email: Info@ropox.com Product models Part number... - Page 8 TF 200.06.0003_ENG Professional healthcare Facility Homecare healthcare Environment As defined by IEC 60601-1-2 The product is not intended for use during HF surgery.
-
Page 9: Intended Use
TF 200.06.0003_ENG Accessories BA19 Lead acid battery Specification • Lead acid technology: Lead acid 40-30762 • Expected lifetime 4 years • Output voltage: 24 V DC • Max. discharge current: 6 A • Charging current: 300 mA, controlled by BA19 internal charger •... -
Page 10: Dimensions
TF 200.06.0003_ENG 3.5 Dimensions... -
Page 11: Instructions For Use
TF 200.06.0003_ENG 4. Instructions for use 4.1 Product assembly 4.1.1 Assembly of legs Mount the legs with 8x enclosed M8 bolts. It is recommended to cross tighten the 4 bolts, on each leg assembly. Note! Remember to use locking shims! All bolts are tightened with a torque of 12Nm / 8.9ft/lbs 4.1.2 Connection of wires in the controlbox Wires are connected according to picture and designation shown below. -
Page 12: Operating The Product
TF 200.06.0003_ENG 4.2 Operating the product Warning! Before use always make sure that mains cable and hand control cable will be able to travel freely without the risk of squeezing or disconnecting the product as result of the movement. Caution! When connected to the mains the product must be placed in a manner according to power outlets so that the operator will be able to disconnect the product during use in case of an emergency. -
Page 13: Operation Of The Bed Guards
TF 200.06.0003_ENG 4.2.3 Operation of the bed guards Mobilio Showerbed is always supplied with bed guards. To operate the bed guards, pull the rubber tubing placed under the tabletop to release the locking mechanism. The bed guard can then be pivoted to the desired mode. Warning! Make sure that the bed guard is locked securely in place when in use with a patient. -
Page 14: Installation Of Battery
TF 200.06.0003_ENG 4.3 Installation of battery Mobilio is not supplied with a backup battery. This can be ordered as an accessory. To order a battery use the following part number: 40-30762 Note! The installation of the battery must be in compliance with the following installation guide 4.3.1 Mounting the battery 4.3.2 Connecting the battery •... -
Page 15: Charging The Battery
TF 200.06.0003_ENG 4.3.3 Charging the battery The battery will automatically charge through an integrated charger when the product is connected to the mains. A full charging takes approx. 6 hours and is indicated through the LED on the battery. Note! Before using the battery, the first time, make sure to charge it for 24 hours. -
Page 16: Cleaning
TF 200.06.0003_ENG 5. Cleaning Cleaning can be done with lukewarm water and a suitable all-purpose cleaning agent. Use a cloth or soft sponge to wash the product. Dry the product off with a wrung cloth. Cleaning of slats Lime deposits on slats are removed with a household bathroom cleaning agent. Notification! Do not use cleaning agents containing abrasive e.g. -
Page 17: Maintenance
Failing to comply with periodic maintenance may result of degrading of product function and safety. Notification! Ropox will make parts list and circuit diagrams available for maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. -
Page 18: Environmental Protection
TF 200.06.0003_ENG 7. Environmental protection The product is not intended to be disposed as municipal waste. Proper disassembly, sorting and disposal of components must be done by waste disposal professionals. Part Disposal recommendation Hard plastic Slats Soft plastic Bed guards Steel waste Frame and wheel assembly Steel waste... -
Page 19: Accessories
TF 200.06.0003_ENG Central locking wheels (accessory) Name Part number Axles for central locking wheels 40-30190-1 Wheels with. central brake Ø100 97003067 Lock pedal, red and green button 97003068 9. Accessories A number of configuration options are available. Such options are generally ordered and delivered installed on the product at first delivery. -
Page 20: Battery
TF 200.06.0003_ENG 9.1 Battery Mobilio can be powered by a backup battery which can be ordered separately. Always follow the instructions for proper use and installation, see 4.3. Item number: 40-30762 9.2 Central locking wheels Part number Size 40-30765-2 L= 146 cm 40-30764-2 L= 178 cm 40-30766-2... -
Page 21: Electromagnetic Compatibility
TF 200.06.0003_ENG 10. Electromagnetic compatibility 10.1 Suitable Environments The device is suitable for use at home, at daycare centers, at day centers for persons with physical or mental disabilities or at hospitals except near active HF surgical equipment and the RF shielded room of a medical electrical system for magnetic resonance imaging, where the intensity of electromagnetic disturbances is high. -
Page 22: Immunity Test Levels
TF 200.06.0003_ENG 10.6.2 Immunity test levels Phenomenon Test method Immunity test level Electrostatic discharge +/- 8 kV contact EN 61000-4-2 immunity +/- 2, 4, 8, 15 kV air +/- 8 kV contact, Electrostatic discharge +/- 2, 4, 8, 15 kV air immunity –... -
Page 23: Complaints
TF 200.06.0003_ENG 11. Complaints See our general terms of sale and delivery on www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Næstved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.com...
