Schacht WOLF STROLLER Assembly

For wolf pup lt, baby wolf, and mighty wolf looms
Hide thumbs Also See for WOLF STROLLER:

Advertisement

Quick Links

Download this manual
WOLF STROLLER
A
ssembly
W
P
for
olf
Note: You cannot install this stroller on a Wolf Pup 8.10 or any Wolf loom with
height extender blocks. The Wolf Pup 8.10 has its own stroller (FL3052) and
Height Extender looms have their own stroller (FL3053). See our website for
more information.
SAFETY CAUTION
For ages 12 and older. Hardware prior to assembly could pose a choking hazard.
Allergen notice: A Danish oil finish is used on the wood.
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
303.442.3212
© 2024 Schacht Spindle Company, Inc.
lT, b
uP
Aby
W
,
olf
And

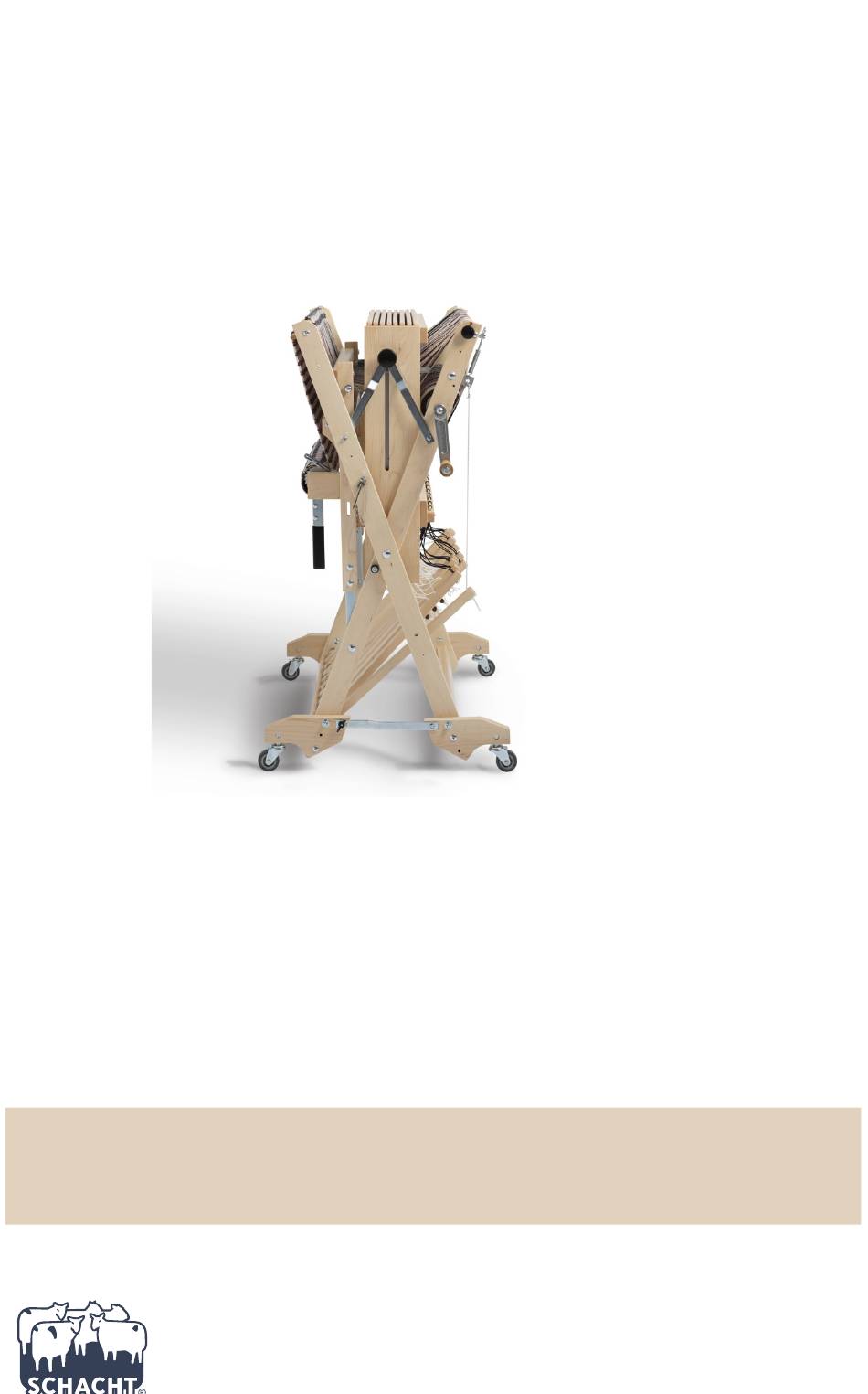

SHOWN ON BABY WOLF
8-SHAFT LOOM
m
W
ighTy
olf
FL3051
l
ooms
12.24

Advertisement

loading
Need help?

Need help?

Do you have a question about the WOLF STROLLER and is the answer not in the manual?

Questions and answers

Related Manuals for Schacht WOLF STROLLER

Summary of Contents for Schacht WOLF STROLLER

  • Page 1 For ages 12 and older. Hardware prior to assembly could pose a choking hazard. Allergen notice: A Danish oil finish is used on the wood. Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 303.442.3212 © 2024 Schacht Spindle Company, Inc.

  • Page 2: Required Tools

    For clarity, diagrams in this assembly manual may not show all parts of the loom. Tie up treadles and the brake release pedal before you begin. This kit contains parts to attach the Wolf Stroller to different looms, which use different hardware. You will not use all of the included parts.

  • Page 3: Using The Stroller

    For weaving: Remove the wing nuts USING THE STROLLER from the front stroller blocks and detach For transport: Fold the loom, making the stroller bars. Replace the wing nuts sure that the treadles come to rest above the rear leg brace. Tighten the fold knobs on their bolts and tighten.
  • Page 4 & ighTy looms Unfold the loom on a flat surface. Attach the top hole of the stroller Tighten the fold knobs and engage the block with a 1/4-20 x 2-1/4" carriage slide locks so the loom is fully extended bolt, a 1/4" flat washer, and a 1/4-20 lock and locked.
  • Page 5 FIGURE 4: ALIGN HOLES barrel nut 1/4-20 x 3" Phillips truss head machine screw FIGURE 5: ATTACH FRONT STROLLER BLOCK TO TREADLE SUPPORT 1/4-20 x 2-1/4" carriage bolt 1/4-20 x 1-3/4" hex bolt 1/4" flat washer & 1/4-20 lock nut 1/4"...
  • Page 6 At the back of the loom, set the rear Attach the top of the stroller block leg brace on a block of wood or some with a 1/4-20 x 2-1/4" carriage bolt, a 1/4" books to elevate the loom back about two flat washer, and a 1/4-20 lock nut (Figure inches.
  • Page 7 1/4-20 x 3" Phillips truss head machine screw barrel nut FIGURE 10: ATTACH REAR STROLLER BLOCK TO REAR LEG BRACE 1/4-20 x 2-1/4" carriage bolt 1/4" flat washer & 1/4-20 lock nut FIGURE 11: ATTACH REAR STROLLER BLOCK THROUGH TOP HOLE 1/4-20 x 1-1/2"...
  • Page 8 & originAl looms Unfold the loom on a flat surface. Attach the top hole of the stroller Tighten the fold knobs and engage the block with a 1/4-20 x 2-1/4" carriage slide locks so the loom is fully extended bolt, a 1/4" flat washer, and a 1/4-20 lock and locked.
  • Page 9 FIGURE 14: ALIGN HOLES barrel nut 1/4-20 x 3" Phillips truss head machine screw FIGURE 15: ATTACH FRONT STROLLER BLOCK TO TREADLE SUPPORT 1/4-20 x 2-1/4" carriage bolt 1/4-20 x 1-3/4" hex bolt 1/4" flat washer & 1/4-20 lock nut 1/4"...
  • Page 10 At the back of the loom, set the rear Attach the top of the stroller block leg brace on a block of wood or some with a 1/4-20 x 2-1/4" carriage bolt, a 1/4" books to elevate the loom back about two flat washer, and a 1/4-20 lock nut (Figure inches.
  • Page 11 1/4-20 x 4" Phillips truss head machine screw barrel nut FIGURE 20: ATTACH REAR STROLLER BLOCK TO REAR LEG BRACE 1/4-20 x 2-1/4" carriage bolt 1/4" flat washer & 1/4-20 lock nut FIGURE 21: ATTACH REAR STROLLER BLOCK THROUGH TOP HOLE 1/4-20 x 1-1/2"...
  • Page 12 DRILLING GUIDE TEMPLATE For Baby Wolf looms with serial numbers lower than 4-1608, 4-4-1609, and 8-546, you will need to drill holes in the inside and outside legs using this template. Photocopy this page so that you can use a fresh template for each leg.

This manual is also suitable for:

Fl3051
