WOLF STROLLER
A

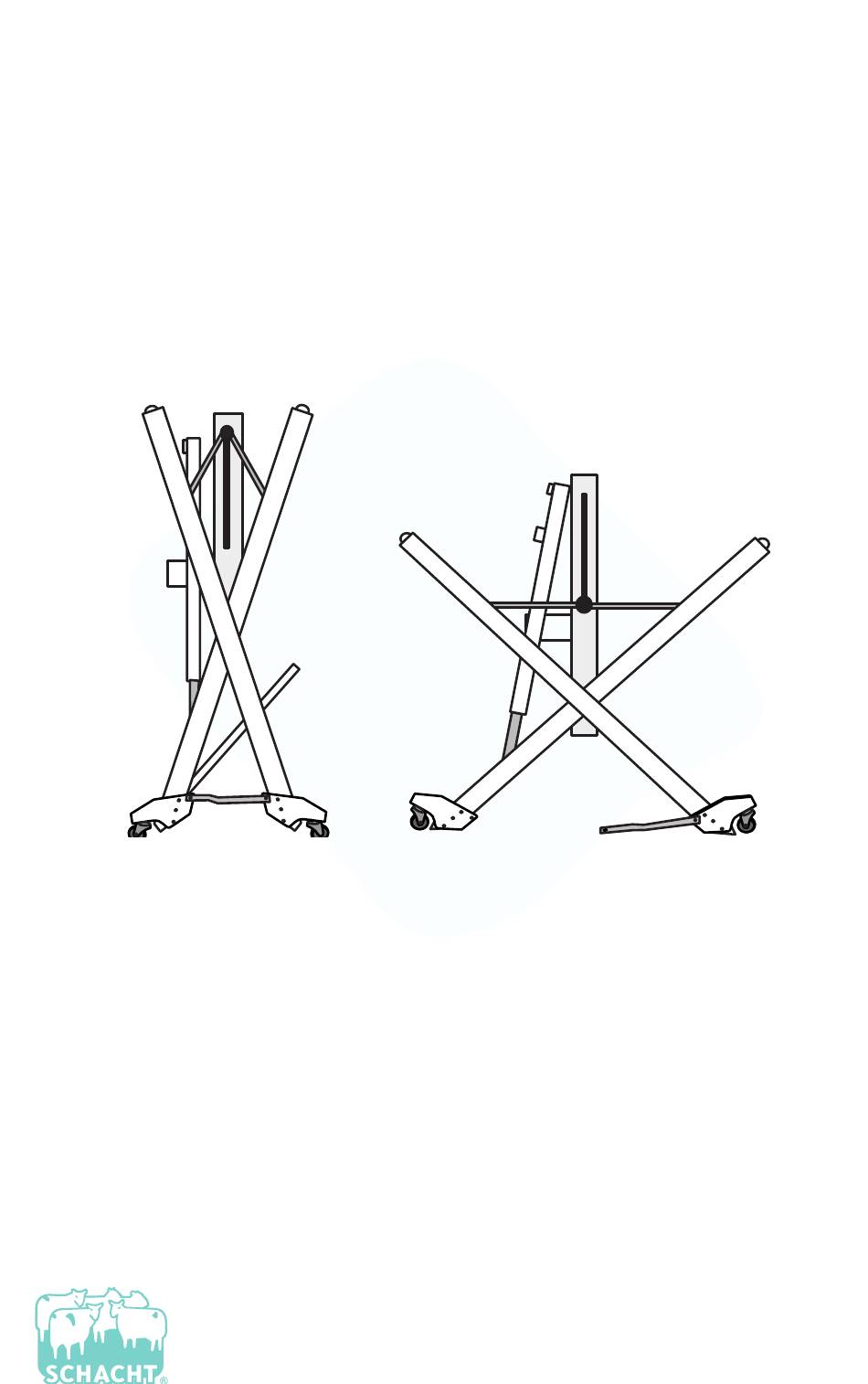

folded—ready to travel
for InstAllAtIon on
b
Aby
Wolf Pup 8.10 looms require the Wolf Pup 8.10 Stroller (FL3052); all Wolf looms
with height extenders require the Wolf Height Extender Stroller (FL3053). If you
received this booklet with FL3052 or FL3053, please visit our website for the
correct booklet.
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
p. 303.442.3212 f. 303.447.9273
© 2018 Schacht Spindle Company, Inc.
ssembly
W
,
olf
And
WIthout heIght extender
I
nstructIons
open—ready to weave
W
P
, W
olf
uP
m
W
Ighty
olf
FL3051
P
lt,
olf
uP
l
ooms
11.18
Advertisement
Related Manuals for Schacht WOLF FL3051
Summary of Contents for Schacht WOLF FL3051
- Page 1 FL3052 or FL3053, please visit our website for the correct booklet. Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 p. 303.442.3212 f. 303.447.9273 © 2018 Schacht Spindle Company, Inc. 11.18...
-
Page 2: Parts List
TOOLS PARTS LIST #2 Phillips screwdriver 4 – caster blocks with casters slotted (flat) screwdriver 2 – stroller bars rubber mallet or hammer 4 – 1/4-20 x 3" Phillips truss head 7/16" or adjustable wrench machine screws piece of scrap wood 2 –... - Page 3 & InstAllAtIon on Ighty looms rear leg brace treadle support barrel nut barrel nut (save) (save) right inside leg right outside leg FIGURE 2: WOLF LEGS Install the Wolf Stroller on a hard surface. Open the loom to weaving inside leg position (see front cover illustration).
- Page 4 a 1/4-20 x 3" Phillips truss head machine 1/4-20 x 2-1/4" carriage bolt screw through the caster block and the leg. Thread the machine screw into the barrel nut in the rear leg brace and tighten, using a slotted screwdriver to hold the barrel nut in position.
- Page 5 & InstAllAtIon on looms NOTE: If you installed the wheels that came with your loom, we recommend that you take them off before installing the Wolf Stroller. rear leg brace treadle support barrel nut barrel nut (save) (save) right inside leg right outside leg FIGURE 8: WOLF LEGS Install the Wolf Stroller on a hard...
- Page 6 caster block to hole [B] in the outside leg. Insert a 1/4-20 x 4" Phillips truss head machine screw through the caster block and the leg. Thread the machine screw into the barrel nut in the rear leg brace and tighten, using a slotted screwdriver to hold the barrel nut in position.
- Page 7 lock nut enough to draw the head of the carriage bolt into the wood of the leg. 1/4-20 x 1-3/4" hex bolt Repeat this step for the other three caster blocks. Note: For the inside right leg, depress the brake release pedal or undo the brake cord from the pedal, to allow easier access to hole [C].
- Page 8 DRILLING GUIDE TEMPLATE For Baby Wolf looms with serial numbers lower than 4-1608, 4-4-1609, and 8-546, you will need to drill holes in the inside and outside legs using this template. Photocopy this page so that you can use a fresh template for each leg.
