Mod-EEZ
shoulder screw
Hardware Included:
Mod-EEZ
Shoulder Screw

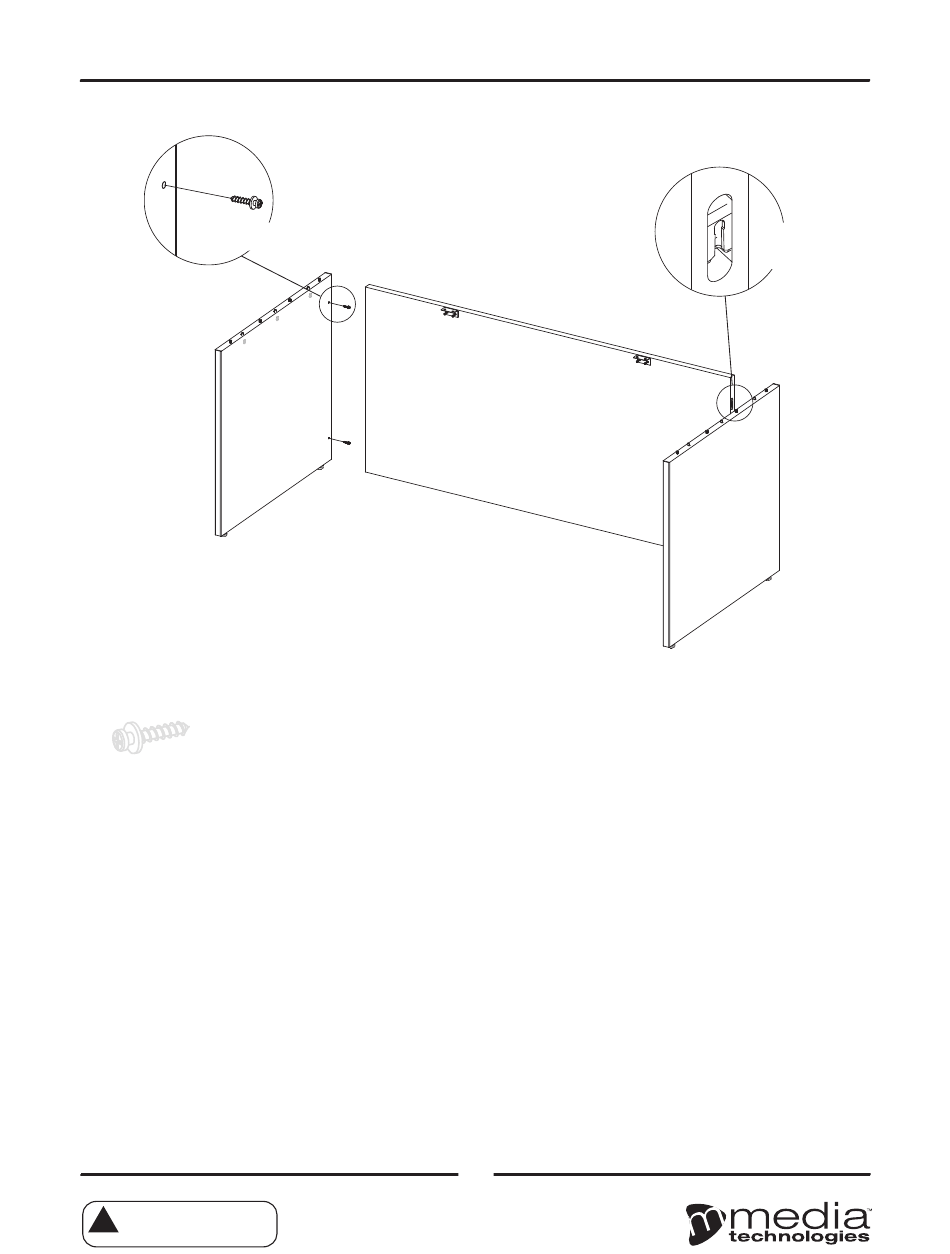

Step 1: Assembling the Desk Base
•
Locate end & front panels. Verify adjustable glides are installed in end panels.
•
Install Mod-EEZ shoulder screw in pre-drilled holes in end panels.
•
Line up pre-installed Mod-EEZ clips in the edge of front panels with shoulder screws installed in
the end panels. Use rubber mallet to tap down panel until secured.
Assemble units only as described in this
!
guide. All fasteners must be tightened
securely and checked regularly. Failure to
CAUTION
do so could cause instability and injury.
TIMMY
Panel Ends
1
Desks
Mod-EEZ clips
Note: Keyhole direction
faces upward.
Tools Required:
• Rubber Mallet
• #2 Phillips Head Screwdriver
instructions-timmy-240802
Advertisement
Related Manuals for Media Technologies TIMMY
Summary of Contents for Media Technologies TIMMY
- Page 1 TIMMY Desks Panel Ends Mod-EEZ Mod-EEZ clips shoulder screw Note: Keyhole direction faces upward. Hardware Included: Tools Required: • Rubber Mallet • #2 Phillips Head Screwdriver Mod-EEZ Shoulder Screw Step 1: Assembling the Desk Base • Locate end & front panels. Verify adjustable glides are installed in end panels.
- Page 2 TIMMY Desks Worksurface Hardware Included: Tools Required: • Rubber Mallet • #2 Phillips Head Screwdriver #8 x 5/8” 15mm 2” L Bracket PH Screw Step 2: Install Top of Desk • Install Dowels (glue dowels) & 15mm Cams into the top of the end panels.
- Page 3 TIMMY Desks Desk Return Hardware Included: Tools Required: • Rubber Mallet • #2 Phillips Head Screwdriver Mod-EEZ #10 x ¾” Mending Plate Shoulder Screw PH Screws Step 3: Attach Desk Return (if applicable) • Assemble base of desk return in the same manner as in Steps #1& 2.
