Summary of Contents for DMX4ALL X9HRX

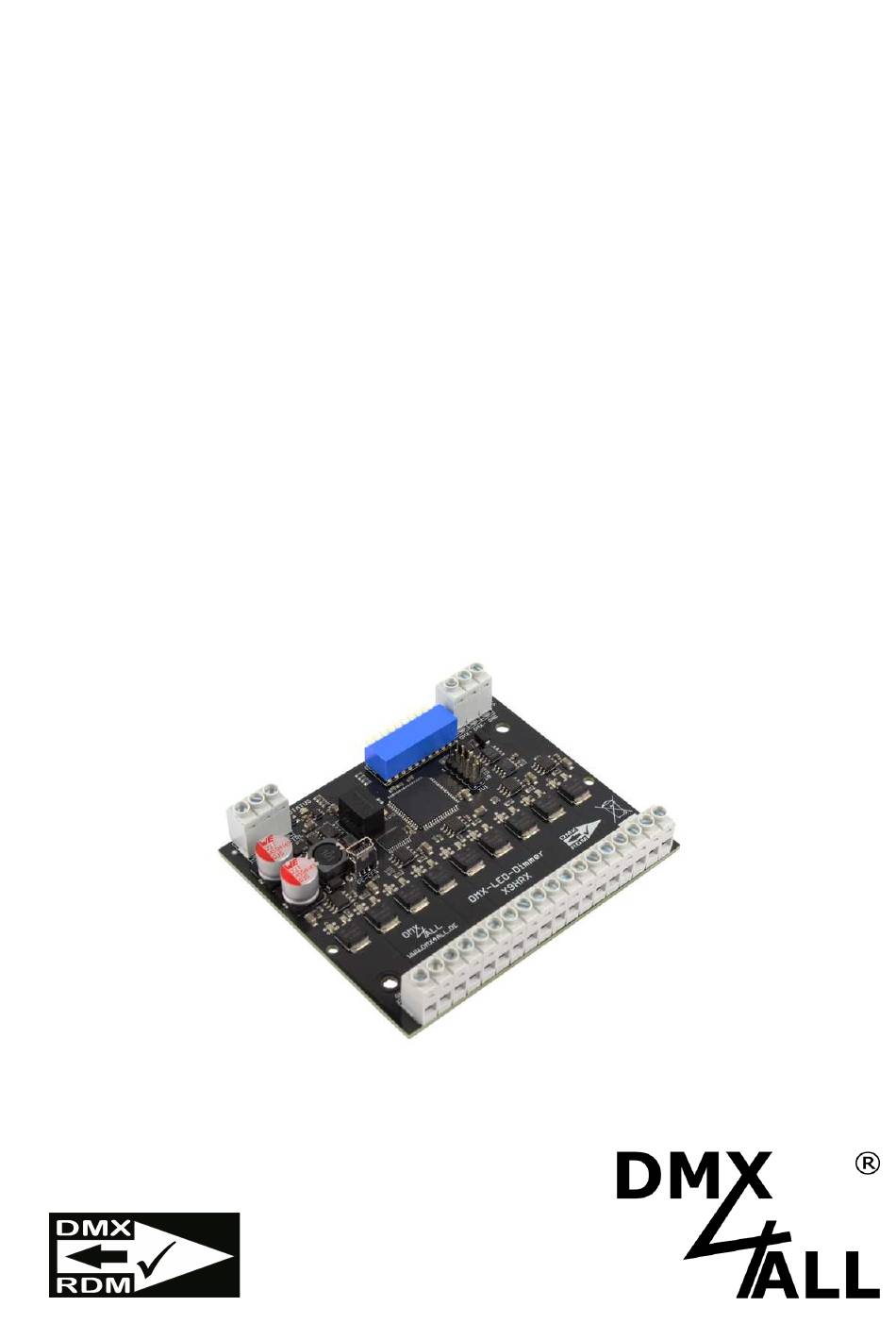

  • Page 1 DMX-LED-DIMMER X9HRX User Manual...
  • Page 2: Table Of Contents

    DMX-LED-Dimmer X9HRX Content Important Notes ......................3 Description ........................4 Data sheet ........................6 Content ........................6 Connection with one power supply ................7 Connection with several power supplies ..............8 Connection with single color and multi-color stripes ........... 9 CTRL-Output (Energy-Save) ..................
  • Page 3: Important Notes

    DMX-LED-Dimmer X9HRX Important Notes For your own safety, please read this user manual and warnings carefully before installation. A firmware update is recommended after receipt the product. This is the only way to ensure that the device has the latest version. You can find the...
  • Page 4: Description

    The outputs can drive a current up to 10A. So it is possible to connect a maximum load of 120W (12V) / 240W (24V) / 240W (48V). High efficiency The 48V LED drivers are designed to allow the DMX LED Dimmer X9HRX to operate without active cooling (no fan). 0% up to 100% dimmable The connected LEDs are dimmed by APDM from 0% to 100%.
  • Page 5 RGB-Status-Display The device status is shown via the RGB status display. Firmware-Update-Function In order to be able to use future functions, the DMX-LED-Dimmer X9HRX offers a firmware update function both via USB and RDM. Top hat rail housing available The top-hat rail housing 1050 is available as accessory for the DMX-LED-Dimmer...
  • Page 6: Data Sheet

    DMX-LED-Dimmer X9HRX Data sheet Power supply: 12-48V DC 80mA@12V / 100mA@24V (without connected LED load) LED voltage: 12-48V DC (no AC voltage!) Protocol: DMX512 DMX Channels: 9 channels with 8Bit-controlling and Curve-Definition 18 channels with 16Bit-controlling + optional Master-Dimmer channels...
  • Page 7: Connection With One Power Supply

    DMX-LED-Dimmer X9HRX Connection with one power supply DMX IN DMX OUT POWER 12V ADDRESS DMX-LED-Dimmer X9HRX RGB-LED-Stripe (12 V) RGB-LED-Stripe (12 V) RGB-LED-Stripe (12 V) Connections directly from the power supply unit depending on the required current of the LED strips! Use at least one GND connection for every 10A.
  • Page 8: Connection With Several Power Supplies

    DMX-LED-Dimmer X9HRX Connection with several power supplies DMX IN DMX OUT POWER 12V ADDRESS DMX-LED-Dimmer X9HRX POWER 12V RGB-LED-Stripe (12 V) POWER 24V RGB-LED-Stripe (24 V) POWER 12V RGB-LED-Stripe (12 V) Connections directly from the power supply unit depending on the...
  • Page 9: Connection With Single Color And Multi-Color Stripes

    DMX-LED-Dimmer X9HRX Connection with single color and multi-color stripes DMX IN DMX OUT POWER 12V ADDRESS DMX-LED-Dimmer X9HRX RGB-LED-Stripe (12 V) LED-Stripe WEIß (1 2V) LED-Stripe WEIß (1 2V) Connections directly from the power supply unit depending on the required current of the LED strips! Use at least one GND connection for every 10A.
  • Page 10: Ctrl-Output (Energy-Save)

    DMX-LED-Dimmer X9HRX CTRL-Output (Energy-Save) The DMX-LED-Dimmer X9HRX has an Energy-Save control output (CTRL) which is able to run off the Load Power Supply of the LEDs. If none of the outputs is activated for a period of 5 minutes or all DMX values are set to 0 for 5 minutes, the control output is switched off.
  • Page 11: Cable Lengths

    DMX-LED-Dimmer X9HRX Cable Lengths The DMX-LED-Dimmer X9HRX should be run with shortest possible cable lengths. Because of the low operation voltage in LED installation the cable cross section is to choose as large as possible to keep the voltage drop as low as possible on the cable.
  • Page 12: Dmx-Addressing

    DMX-LED-Dimmer X9HRX DMX-Addressing The starting address is adjustable with the switches 1 to up 9. Switch 1 has the valency 2 (=1), switch 2 the valency 2 (=2) etc. until switch 9 has the valency 2 (=256). In total the switches showing ON correlate with the starting address.
  • Page 13 DMX-LED-Dimmer X9HRX RGB-LED-Display The DMX-LED-Dimmer X9HRX is designed with a RGB-LED display showing the device status. Power supply not connected RED lights No DMX-Signal GREEN lights The device works normally A DMX-Signal is detected BLUE flashes The device works normally...
  • Page 14: Dmx Fail Action

    DMX-LED-Dimmer X9HRX DMX FAIL Action IN case of DMX failure (DMX FAIL), the DMX-LED-Dimmer X9HRX can hold the LED outputs at the last value, switch off all LED outputs or switch them all on. The action in the event of DMX failure is set via the RDM parameter DMX_FAIL_MODE.
  • Page 15: Operation Modes

    DMX-LED-Dimmer X9HRX Operation Modes The DMX-LED-Dimmer X9HRX has several operation modes (Personality): Personality 1: 9Ch. Dimmer Personality 2: 9Ch. Dimmer + Master Personality 3: 9Ch. Dimmer + RGB-Master Personality 4: 9Ch. Dimmer + RGBW-Master Personality 5: 9Ch. Dimmer 16Bit Personality 6: 9Ch.
  • Page 16: Personality 1: 9Ch. Dimmer

    DMX-LED-Dimmer X9HRX Personality 1: 9Ch. Dimmer In this operation mode each output is controlled with one DMX channel (8Bit). For each output there’s a free programmable dim curve (LookUp table / Curve Definition) available, which displays the 8Bit-DMX value to the 16Bit solution of the output.
  • Page 17: Personality 5: 9Ch. Dimmer 16Bit

    DMX-LED-Dimmer X9HRX Personality 5: 9Ch. Dimmer 16Bit In this operating mode, each output is controlled with two DMX channels (16Bit). Each output has a 16-bit resolution, which is shown directly via the DMX values. Two DMX channels are used for each output. The second DMX channel is fine adjustment.
  • Page 18: Personality 9: 4X Cct-Control

    OUT4 CCT group 3 OUT5 OUT6 CCT group 4 OUT7 OUT8 In sum the DMX-LED-Dimmer X9HRX has 4 independent CCT groups taking the outputs 1 up to 8. Output 9 can be controlled via a single DMX channel. Start address...
  • Page 19: Configure The Dimming-Curve (Curve Definition)

    DMX-LED-Dimmer X9HRX Configure the Dimming-Curve (Curve Definition) The DMX-LED-Dimmer X9HRX has a free programmable dimming curve (Curve Definition) for each output. The received DMX-Channel has values from 0 up to 255 (8Bit). The DMX-LED- Dimmer X9HR output driver provides 65536 steps (16Bit) which are assigned to the DMX values.
  • Page 20: Rdm

    DMX-LED-Dimmer X9HRX RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings occur remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary.
  • Page 21 DMX-LED-Dimmer X9HRX Parameter ID Discovery ANSI/ Command Command Command PID:  SERIAL_NUMBER 0xD400 PID:   DISPLAY_AUTO_OFF 0xD401 PID:   IDENTIFY_MODE 0xD402 PID:  FIRMWARE_UPDATE 0xD408 PID:   CURVE_DEFINITION 0xD430 PID:   SOFT_DIMMING 0xD431 PID:  ...
  • Page 22 DMX-LED-Dimmer X9HRX IDENTIFY_MODE PID: 0xD402 Sets the mode that is executed with IDENTIFY_DEVICE. Send: PDL=0 Receive: PDL=1 (1 Byte IDENTIFY_MODE_ID) Send: PDL=1 (1 Byte IDENTIFY_MODE_ID) Receive: PDL=0 IDENTIFY_MODE_ID Function FULL Identify All outputs switch ON / OFF simultaneously and the status LED flashes...
  • Page 23 DMX-LED-Dimmer X9HRX SOFT_DIMMING PID: 0xD431 Sets the soft dimming behavior of the device. Send: PDL=0 Receive: PDL=1 (1 Byte SoftDimm-Parameter) Send: PDL=1 (1 Byte SoftDimm-Parameter) Receive: PDL=0 Parameter Function Soft-Dimm OFF 1-255 Soft-Dimm up to the given value SUBDEVICE_ENABLE PID: 0xFF0F Enable or disable the sub devices of the device.
  • Page 24: Setting The Output Frequency

    DMX-LED-Dimmer X9HRX Setting the output frequency The DMX-LED-Dimmer X9HRX is able to generate several output frequencies on the LED outputs. The output frequency is to set via the RDM-Parameter MODULATION_FREQUENCY. The following output frequencies are available: 500 Hz 1000 Hz...
  • Page 25: Lock Device Settings

    DMX-LED-Dimmer X9HRX Lock device settings The RDM parameters Lock Pin and Lock State allow or prohibit changing saved RDM parameters. Lock Pin The four-digit pin code number for the lock function can be set using the Lock Pin parameter. After entering the correct currently used PIN (Old PIN) in the RDM software (e.g.
  • Page 26: Subdevice-Mode

    DMX-LED-Dimmer X9HRX SubDevice-Mode In the standard mode, the DMX-LED-Dimmer X9HRX has a DMX start address from which the DMX channels are used in sequence. Within the SubDevice mode, each output is assigned with its own DMX address and DMX-FAIL action.
  • Page 27 DMX-LED-Dimmer X9HRX 9Ch. Dimmer 16Bit optional 9Ch. Dimmer 8Bit with RGB-Master-Dimmer 9Ch. Dimmer 8Bit with RGBW-Master-Dimmer...
  • Page 28: Firmware-Update

    DMX-LED-Dimmer X9HRX Firmware-Update The DMXLED-Dimmer X9HRX has an update function that allows to transfer current firmware versions. This can be carried out via RDM or USB. If an error occurs during the update, you can start from the beginning at any time.
  • Page 29: Factory Reset

    DMX-LED-Dimmer X9HRX Factory Reset Before Factory Reset, read all steps carefully. To reset the DMX-LED-Dimmer X9HRX to delivery status, proceed as follows: Turn off device (disconnect power supply and USB connection !) Set DIP switch 1 up to 10 to ON Turn on device (connect power supply) The LED lights up 20x during ca.
  • Page 30: Equipment

    DMX-LED-Dimmer X9HRX Equipment DIN-Rail housing 1050 USB cabel A → Mini B 5pol.
  • Page 31: Revision History

    DMX-LED-Dimmer X9HRX Revision History Firmware V1.00 First Release...
  • Page 32: Ce-Conformity

    DMX-LED-Dimmer X9HRX CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary.
  • Page 33: Risk-Notes

    DMX-LED-Dimmer X9HRX Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
  • Page 34 Germany Last changes: 06.11.2024 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
