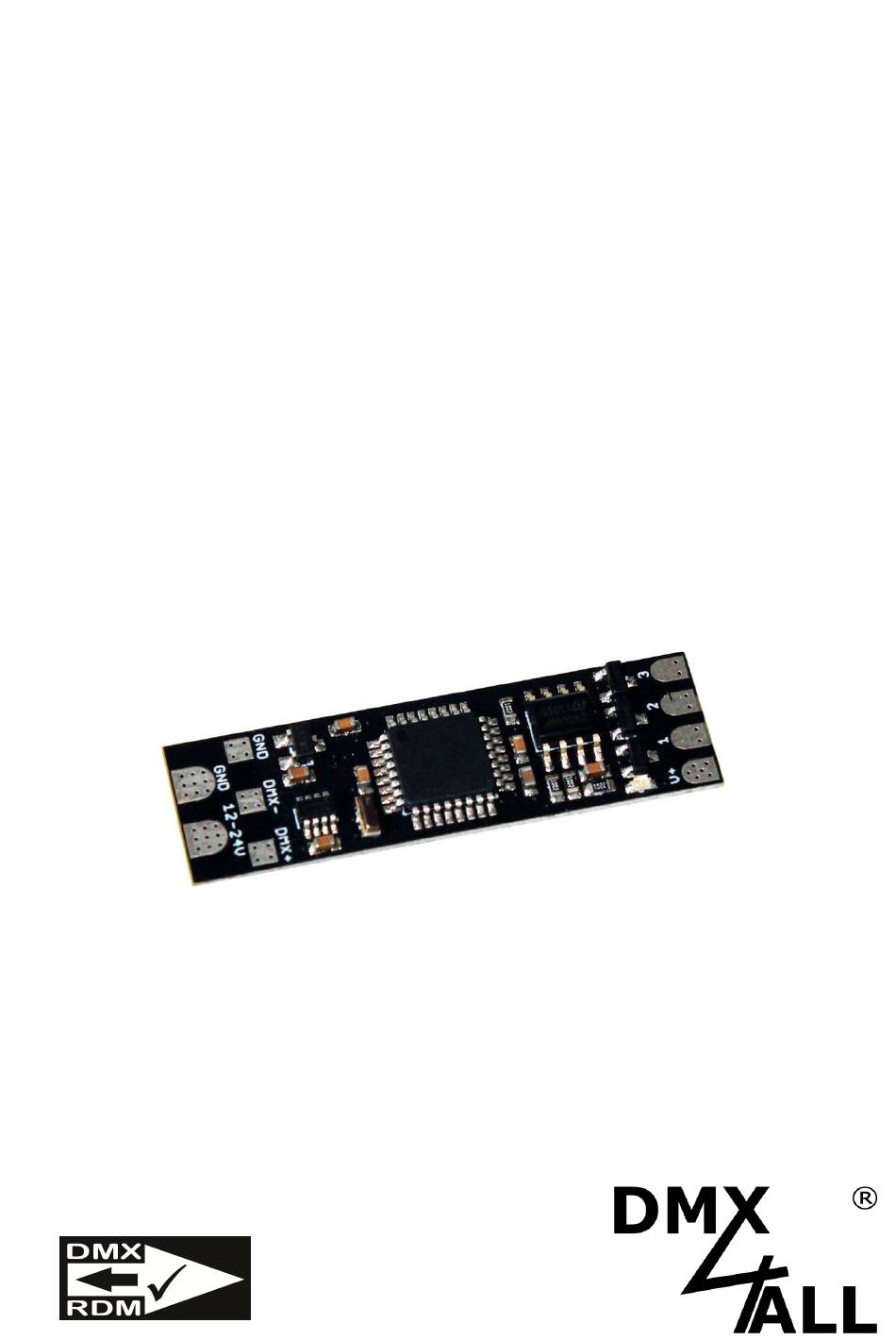

- Page 1 DMX-LED-Dimmer XS3 User Manual...
-
Page 2: Table Of Contents
DMX-LED-Dimmer XS3 For your own safety, please read this user manual and warnings carefully before installation. Soldering work may only be carried out by a certified specialist in order to prevent damage to the product and injury to people. If acidic or leaded solder, soldering grease or acidic flux etc. has been used for soldering and/or if the board has been improperly soldered, all warranty claims will be voided and no repair will be carried out. -
Page 3: Description
DMX-LED-Dimmer XS3 Description The DMX-LED-Dimmer XS3 is designed to control RGB or single-colour LED-Stripes with 12V or 24V. 3 Outputs The DMX-LED-Dimmer XS3 has three outputs to connect LEDs. All outputs are designed at the same, so single-colour or RGB LEDs can be connected. High Power Outputs The outputs can drive a current up to 2A. -
Page 4: Data Sheet
DMX-LED-Dimmer XS3 Data Sheet Power Supply: 12-24V DC 50mA without load LED Voltage: 12-24V DC corresponds to power supply (no AC voltage !) Protocol: DMX512 DMX Channels: 3 / 4 / 5 channels depend on Personality DMX-FAIL: Hold / 0%-100% / StandAlone Output: 3 PWM-Signals with 8 Bit resolution Common power supply... -
Page 5: Connection
DMX-LED-Dimmer XS3 Connection DMX-LED-Dimmer XS3 OUT1 OUT2 DMX+ OUT3 DMX-... -
Page 6: Cable Length
DMX-LED-Dimmer XS3 Cable Length The DMX-LED-Dimmer XS3 should be run with shortest possible cable lengths. Because of the low operation voltage in LED installation the cable cross section is to choose as large as possible to keep the voltage drop as low as possible on the cable. The wire cross section should be all the larger as the distance increases and the load increases. -
Page 7: Dmx-Addressing
DMX-LED-Dimmer XS3 DMX-Addressing The DMX start address defines from which DMX channel the DMX-LED-Dimmer XS3 starts processing the DMX data. The DMX start address is to set via the RDM-Parameter DMX_START_ADDRESS. Color Sequence The colour assignment to the outputs can be set on the DMX LED Dimmer XS3. Thus, the DMX LED dimmer XS3 can be mounted directly in front of the LED stripe and the outputs can be configured to correspond with the used LED stripe. -
Page 8: Operation Modes
DMX-LED-Dimmer XS3 Operation Modes The DMX-LED-Dimmer XS3 has several operation modes (Personality). Personality 1: 3Ch. Dimmer Personality 2: 3Ch. Dimmer + Master Personality 3: 3Ch. Dimmer + Master + Strobe Personality 1: 3Ch. Dimmer Start address Personality 2: 3Ch. Dimmer + Master Start address Personality 3: 3Ch. -
Page 9: Dmx Fail Action
DMX-LED-Dimmer XS3 DMX FAIL Action In case of DMX lost (DMX-Fail) the DMX-LED-Dimmer XS3 is able to hold the LED outputs on the last value, to use a predefined DMX value or to execute a user- defined program. The DMX Fail action is to set via the RDM-Parameter DMX_FAIL_MODE. After voltage drop the held values are not restored by the HOLD function. -
Page 10: Rdm
DMX-LED-Dimmer XS3 RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings occur remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary. - Page 11 DMX-LED-Dimmer XS3 Parameter ID Discovery ANSI/ Command Command Command PID: SERIAL_NUMBER 0xD400 PID: DISPLAY_AUTO_OFF 0xD401 PID: IDENTIFY_MODE 0xD402 PID: DMX_FAIL_MODE 0xD403 PID: UPLOAD_PROGRAM 0xD409 PID: COLOR_SEQUENCE 0xD413 1) Manufacturer depending RDM control commands (MSC – Manufacturer Specific Type) Manufacturer depending RDM control commands SERIAL_NUMBER PID: 0xD400...
- Page 12 DMX-LED-Dimmer XS3 IDENTIFY_MODE PID: 0xD402 Sets the mode that is executed with IDENTIFY_DEVICE. Send: PDL=0 Receive: PDL=1 (1 Byte IDENTIFY_MODE_ID) Send: PDL=1 (1 Byte IDENTIFY_MODE_ID) Receive: PDL=0 IDENTIFY_MODE_ID Function FULL Identify All outputs switch simultaneously ON/OFF and the Status-LED flashes LOUD Identify The outputs switch ON/OFF in sequence and the status LED flashes...
- Page 13 DMX-LED-Dimmer XS3 UPLOAD_PROGRAM PID: 0xD409 Saves the user-defined program. COLOR_SEQUENCE PID: 0xD413 Sets the used color sequence. Send: PDL=0 Receive: PDL=1 (1 Byte COLOR_SEQUENCE_ID) Send: PDL=1 (1 Byte COLOR_SEQUENCE_ID) Receive: PDL=0 COLOR_SEQUENCE_ID Function R-G-B R-B-G G-R-B G-B-R B-R-G B-G-R...
-
Page 14: Create / Use User-Defined Light Programs
DMX-LED-Dimmer XS3 Create / Use user-defined light programs The DMX-LED-Dimmer XS3 has a user-programmable Stand-Alone-Function, to replay an internal program. The user-defined program can be executed after power-on of the device and in case of DMX signal lost (DMX Fail). The program can be created with the free DMX Configurator software and then transferred with the free software RDM-Configurator. - Page 15 DMX-LED-Dimmer XS3 The program created in the DMX Configurator software must be saved in prg format (Project→Save as): Then the created program is ready to trans to the DMX LED Dimmer XS3 with the RDM Configurator via the UPLOAD_PROGRAM parameter.
-
Page 16: Factory Reset
DMX-LED-Dimmer XS3 Factory Reset To reset the DMX-LED-Dimmer XS3 to the factory settings, use the RDM parameter FACTORY_DEFAULTS. -
Page 17: Dimension
DMX-LED-Dimmer XS3 Dimension all details in mm... -
Page 18: Accessories
DMX-LED-Dimmer XS3 Accessories RGB-LED-Stripe 5m Power supply... -
Page 19: Ce-Conformity
DMX-LED-Dimmer XS3 CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary. -
Page 20: Risk-Notes
DMX-LED-Dimmer XS3 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary. Initiation risk: For the installation of the board, the board must be connected and adjusted to foreign components according to the device paperwork. - Page 21 Germany Last change: 24.06.2022 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
