Summary of Contents for DMX4ALL DMX-LED-Dimmer CC4

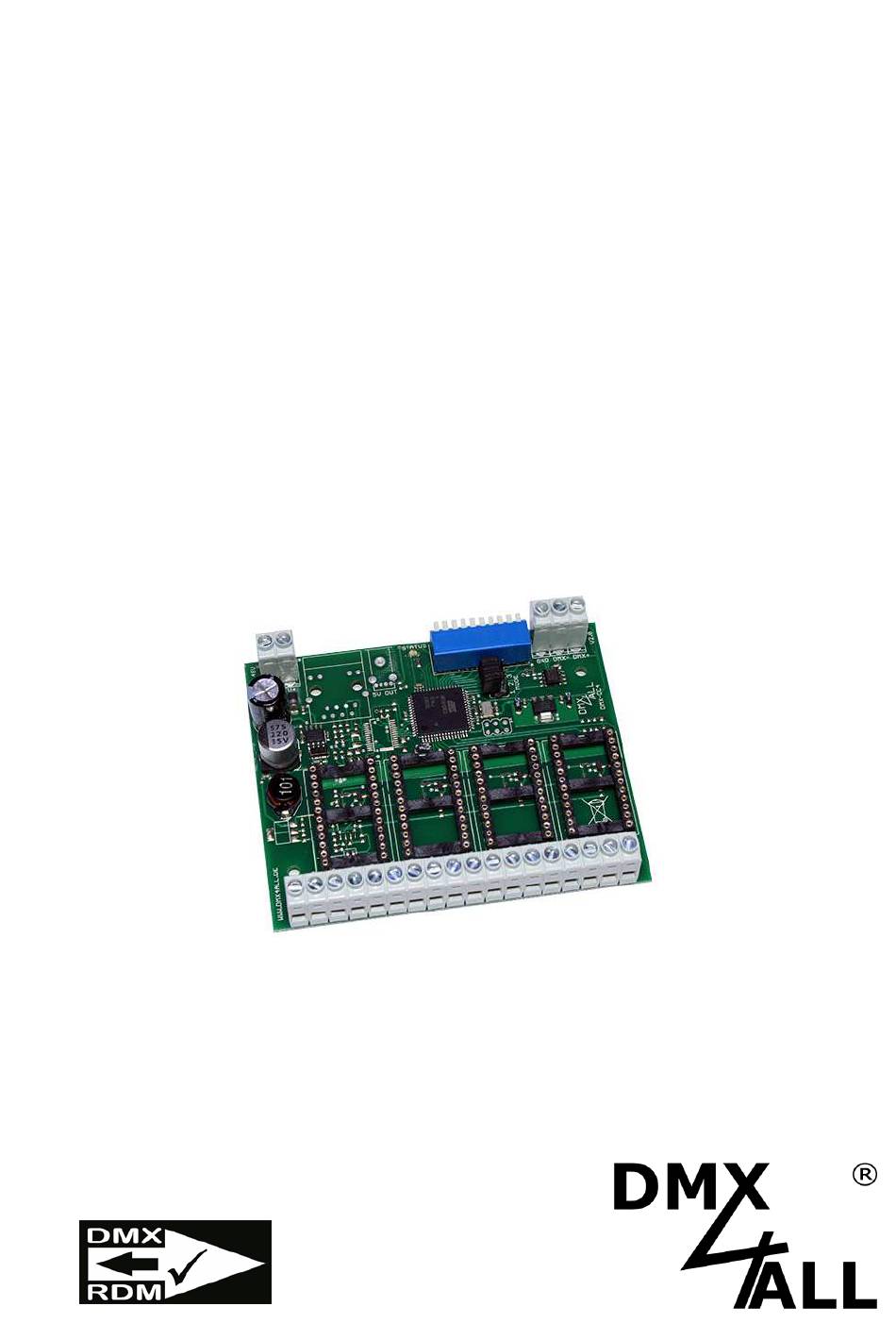

- Page 1 DMX-LED-Dimmer CC4 User Manual...
-
Page 2: Table Of Contents
DMX-LED-Dimmer CC4 For your own safety, please read this user manual and warnings carefully before installation. Contents Description ........................3 Data Sheet ........................4 Content ........................4 Connection ......................... 5 DMX-Addressing ......................6 LED-Display ........................ 6 Constant current modules ................... 7 DMX-FAIL-Function .................... -
Page 3: Description
For voltages from 12V up to 24V The DMX-LED-Dimmer CC4 works with supply voltages from 12V up to 24V DC. DMX failure behavior An adjustable DMX FAIL function offers the option to hold the current state (HOLD) or to adopt a predefined value if the DMX signal fails. -
Page 4: Data Sheet
DMX-LED-Dimmer CC4 Data Sheet Power supply: 9-48V DC 22mA@12V; 12mA@24V; 7mA@48V (Current consumption without LED-Module) Output voltage: Depends on the constant current module used Output current: Depends on the constant current module used Protocol: DMX512 DMX-Channels: 4 / 5 Channels... -
Page 5: Connection
DMX-LED-Dimmer CC4 Connection... -
Page 6: Dmx-Addressing
DMX-LED-Dimmer CC4 DMX-Addressing The starting address is adjustable with the switches 1 to up 9. Switch 1 has the valency 2 (=1), switch 2 the valency 2 (=2) etc. until switch 9 has the valency 2 (=256). In total the switches showing ON correlate with the starting address. -
Page 7: Constant Current Modules
DMX-LED-Dimmer CC4 Constant current modules The following constant current modules for the DMX-LED-Dimmer CC4 are available as accessory: - Constant current LED-Driver LDD-300H (300mA) - Constant current LED-Driver LDD-350H (350mA) - Constant current LED-Driver LDD-500H (500mA) - Constant current LED-Driver LDD-600H (600mA) -
Page 8: Dmx-Fail-Function
DMX-LED-Dimmer CC4 DMX failure behavior The DMX-LED-Dimmer CC4 can hold the last value, switch on or switch off the LED outputs on DMX fail. This DMX-Fail option is selectable with Jumper 2 and 3. HOLD ALL OFF ALL ON After voltage drop the held values are not restored by the HOLD function. -
Page 9: Master-Dimmer
DMX-LED-Dimmer CC4 Master-Dimmer The DMX-LED-Dimmer CC4 has one Master-Dimmer which can be activated. No Master dimmer Master dimmer activated Master dimmer The DMX channel which is set as start-address is used as Master-Dimmer for all 4 outputs. The DMX-Addresses assignment is as follows:... -
Page 10: Rdm
DMX-LED-Dimmer CC4 RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings can occur remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary. - Page 11 DMX-LED-Dimmer CC4 Parameter ID Discovery ANSI/ Command Command Command PID: SERIAL_NUMBER 0xD400 PID: IDENTIFY_MODE 0xD402 1) Manufacturer depending RDM control commands (MSC - Manufacturer Specific Type) Manufacturer depending RDM control commands SERIAL_NUMBER PID: 0xD400 Outputs a text description (ASCII-Text) of the device serial number.
-
Page 12: Factory Reset
DMX-LED-Dimmer CC4 Factory Reset Before running the Factory Reset, read all steps carefully. To reset the DMX-LED-Dimmer CC4 to delivery state, proceed as follows: Turn off device (disconnect power supply) Set DIP switch 1 up to 10 to ON Turn on device (connect power supply) The LED lights up 20x during ca. -
Page 13: Dimensions
DMX-LED-Dimmer CC4 Dimensions (all details in mm) -
Page 14: Accessory
DMX-LED-Dimmer CC4 Accessory Top-hat rail mounting 1050 Constant current LED-Module - Constant current LED-Driver LDD-300H - Constant current LED-Driver LDD-350H - Constant current LED-Driver LDD-500H - Constant current LED-Driver LDD-600H - Constant current LED-Driver LDD-700H - Constant current LED-Driver LDD-1000H... -
Page 15: Ce-Conformity
DMX-LED-Dimmer CC4 CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary. - Page 16 Germany Last changes: 09.09.2021 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
