Media Technologies WCT Steel Leg Manual

Hardware Included:
#8 x 1" Screw 1/4-20 x 1-3/4"
Button Head Bolts

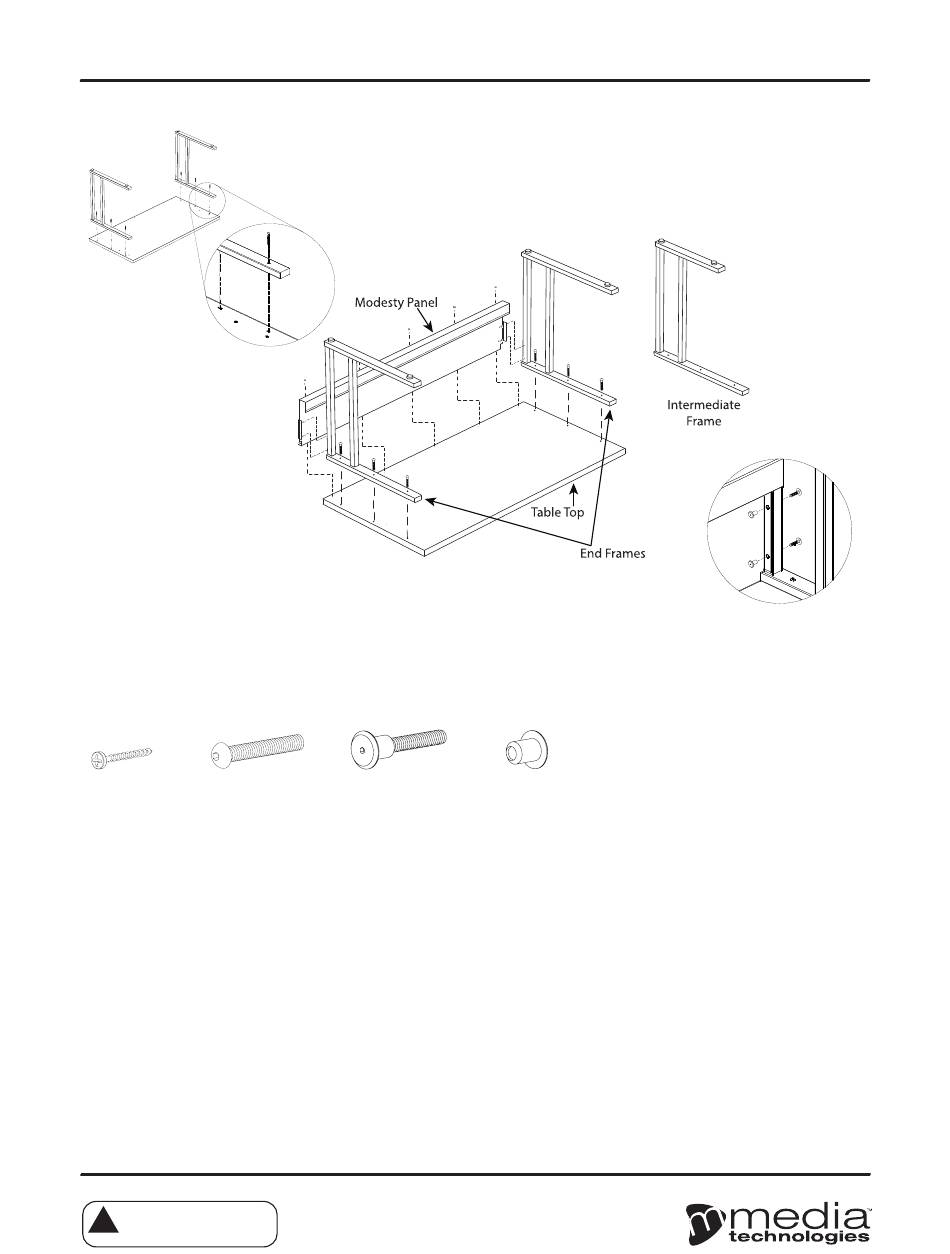

Step 1: Attach end or intermediate steel frames to underside of table top using ¼-20 x 1-¾" bolts. Thread
bolts in ¾ of the way.
NOTE: Intermediate frames may mount either at ends or midspan, depending on configuration.
Underside of top will have appropriate threaded inserts. Modesty panels will fit between each pair of support
frames, end or intermediate. Assembly sequence is unchanged.
Step 2: Attach modesty/wire management panel to end or intermediate steel frames using JC connector
bolt and nut. Flange faces out, wire management trough faces in.
Step 3: Secure modesty panel to underside of top using #8 x 1" screws through flange of modesty panel.
Step 4: To complete assembly, tighten all bolts.
Assemble tables only as described in this
!
guide. All fasteners must be tightened
securely and checked regularly. Failure to
CAUTION
do so could cause instability and injury.
WCT
WCT Steel Leg
1/4 - 20 x 1 3/16" 1/4 - 20
Joint Connector Bolt Joint Connector Nut
Tables
Tools Required:
• #2 Phillips Head Screwdriver
• 5/32 Allen Wrench
• 5mm Allen Wrench
