JI-114C-A (JABLOTRON 100+)
Print / Save as PDF
If you want to save to PDF, please select
'Save as PDF' when the print dialog opens.
Network camera outdoor 5 MPx –
bullet audio
switch to the manual for the JABLOTRON Mercury system

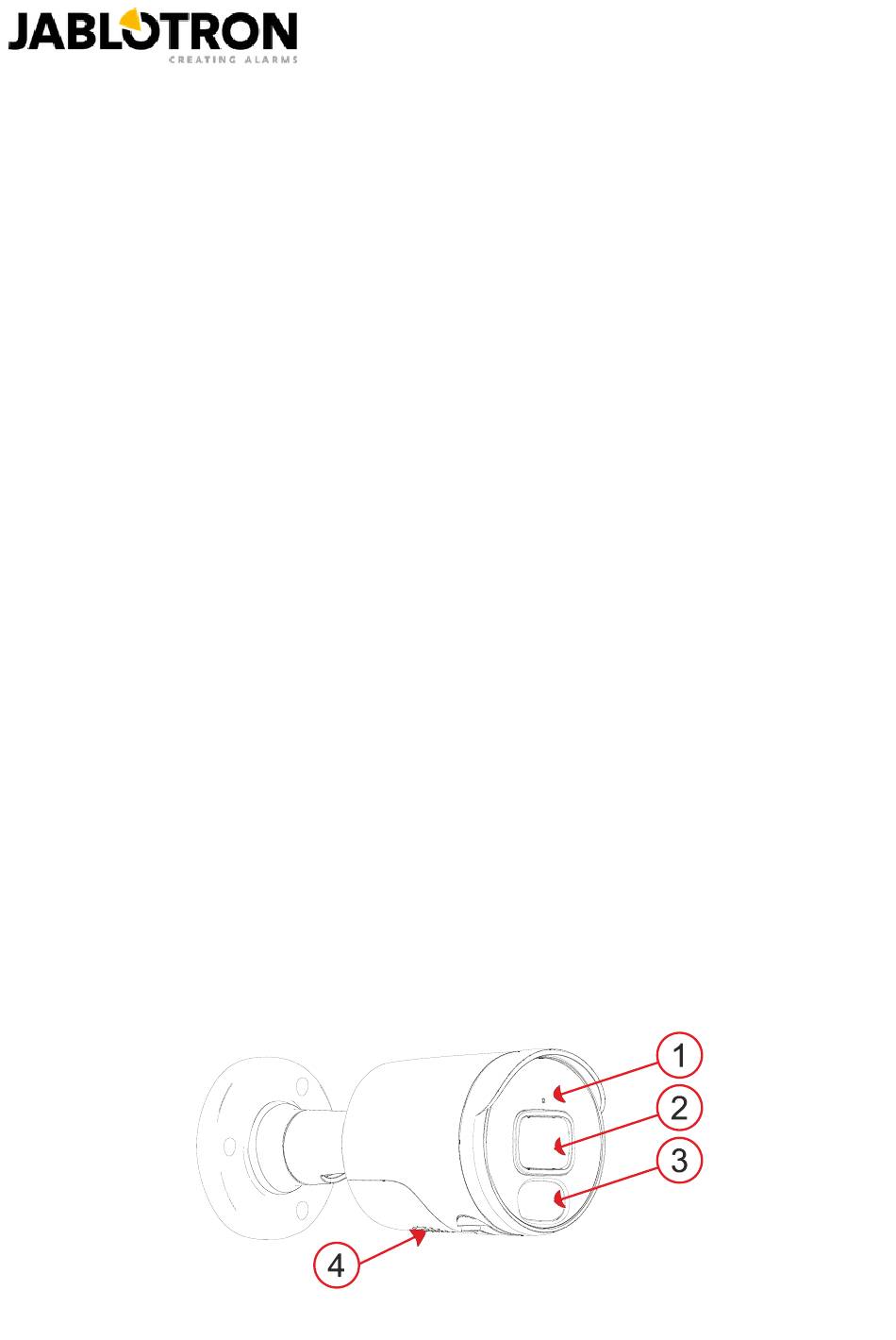

The JI-114C-A IP camera is designed for video verification of events from the JABLOTRON
security system. Video recordings may be made in resolution of up to 5MPx, resolution is
subject to camera settings. The footage is transmitted via LAN and the Internet to a secure
storage server. The user may access a live video feed via the MyJABLOTRON application, as well
as the recordings made during pre-set events and, subject to the utilized subscription service, to
the continuously stored footage from the camera. The camera is equipped with an IR
illuminator to ensure video image capture even in low light conditions. The camera is intended
for installation only by a trained technician with a valid Jablotron certificate.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for jablotron JI-114C-A
Summary of Contents for jablotron JI-114C-A
- Page 1 JABLOTRON Mercury system The JI-114C-A IP camera is designed for video verification of events from the JABLOTRON security system. Video recordings may be made in resolution of up to 5MPx, resolution is subject to camera settings.
-
Page 2: Camera Function
The maximum number of sequences is limited according to the set service. Acoustic and optical indication Connection to ARC – access to video data from the camera is granted to a security agency for visual verification of an alarm event. Fig. 2: Diagram of JABLOTRON CLOUD functioning Installation... - Page 3 The camera may be powered over LAN using PoE. Alternatively, the camera may be powered with a 12V DC, 0.5 A power supply, and must be connected to LAN with a RJ-45 terminated cable. To prevent moisture from potentially damaging the data connector, a waterproof LAN connector housing must be used (which is included in the packaging).
- Page 4 9. Remove the protective film and polish the camera of any dirt and fingerprint marks, should be any present. Installation procedure for the camera without using the mounting socket If the camera is to be installed in a place that can be used to protect the cables and connectors from intentional damage (e.g., lowered ceiling, plasterboard ceilings and partitions, etc.), the camera can be installed directly in such a place and the cables and connectors can be pushed through the prepared hole.
- Page 5 Caution: The camera is not physically connected to the JABLOTRON 100 system, it doesn´t occupy any positions. Power from the alarm system is not required and the camera status is not monitored by the control panel.
- Page 6 Picture quality: 1 MPx, 2MPx, 3 MPx, 4MPx, 5MPx This option affects the quality of the recorded image, and the volume of data sent by the camera to the server (Upload). Video retention period (record export to MyJABLOTRON): 3 days / 7 days / 15 days / 30 days Depending on the subscription service, 10 or 60 clips are available.
-
Page 7: Technical Parameters
camera is unregistered in a disconnected state, the camera will not be unregistered correctly and the manual reset is required. The manual reset button is located on the underside of the camera near the speaker under the cover, which is secured with two screws. After unscrewing the cover, it is necessary to hold the button, connect the power and hold the button for about 15 seconds. - Page 8 European Union: directives No: 2014/30/EU, 2011/65/EU, when used as intended. The original Declaration of Conformity is available at www.jablotron.com in the Downloads section. Importer: streamhosting.cz, Kališnická 10, 130 00, Praha 3 Note: Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
- Page 9 manuals.jablotron.com...
