jablotron JI-111C Quick Start Manual

JI-111C – Video verification IP camera - DOME
The JI-111C IP camera is designed for the video verification
of events from the JABLOTRON 100 alarm system. Video
recording is captured in HD or FullHD resolution according
to the settings. Video is transferred via a local LAN network and the
Internet to a JABLOTRON
The MyJABLOTRON application provides access to live streaming
for the end user. According to the type of pre-paid service the user
obtains access to continuously stored video recordings from
the camera. The camera is equipped with an IR reflector to ensure
recording under bad lighting conditions.
The camera has to be installed by a trained technician with
a valid certificate issued by an authorised distributor.

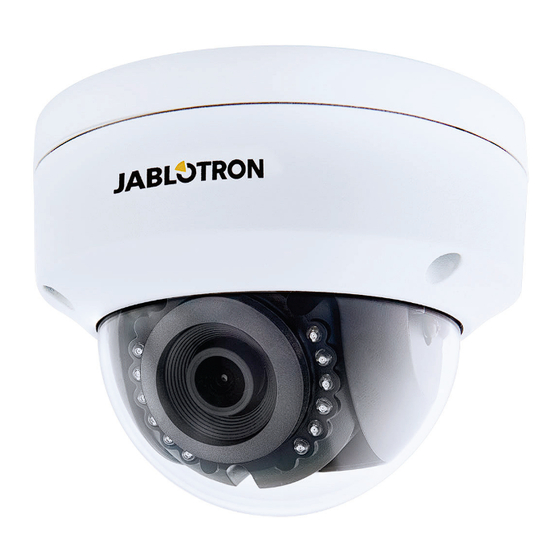

Figure 1: Digital IP camera - Dome
Camera purpose
The camera is supplied fully configured by default and no other
settings are needed. It
MyJABLOTRON and the following services are provided:
Live streaming
Recording history – video recordings are stored on the server
for a limited time (depending on the service type).
Video sequence (video clip) – a 1 minute recording, consisting
of a 30 sec clip before and a 30 sec clip after an event linked
to an alarm system event (alarm, setting, unsetting from
a selected section). The maximum number of video sequences
is limited according to the selected type of service.
Connection to ARC – access to video data from the camera
is granted to a security agency for visual verification of an alarm
event.
Figure 2: Diagram of JABLOTRON CLOUD functioning
JI-111C – Video verification IP camera - DOME
Cloud secure storage.
allows immediate operation
Camera installation
The camera is designed to be used in an indoor and also
environment (IP67 rating), where it can be installed
an outdoor
on the ceiling or on the wall. Camera lens adjustment is performed
in 3 axes so it allows very simply installation at any position
(see. Figure 3).
Figure 3: Camera adjustment in 3 axes; 1 – locking screw
Connection is performed by a cable with an RJ-45 connector
to be connected to a LAN network and there is also a connector for
a 12 V DC 500 mA power supply. There is a waterproof sheath for
a LAN connector which protects the connector against air humidity.
The camera can also be powered via a LAN using a PoE according
to the 802.3af norm.
with
Figure 4: Description of the Dome camera's individual parts
1. Camera base with fixing holes, 2. Horizontaly adjustable camera part for
about 0° - 355°, 3. Vertically tilting camera part for about 0° - 75° (fixing
screw), 4. Front camera cover with a transparent case, 5. External power
connector - 12 V DC, 6. LAN network connector, 7. Lens rotating module for
about 0° - 355° with IR LED reflector, 8. Camera lens, 9. Internal protective
cover – shade, 10. Flexible cord for hanging the front cover during
Caution: The transparent camera part is wrapped by a special
protective foil. It protects its surface against mess and scratching
during installation. That's why it can be removed after installation
is finished! A part of camera electronics has a moisture-absorbing
bag, do not ever remove it.
