Media Technologies Porter Desk Assembly

    
   

    
    






 








Hardware Included:
M8 x 35mm M8 x 25mm

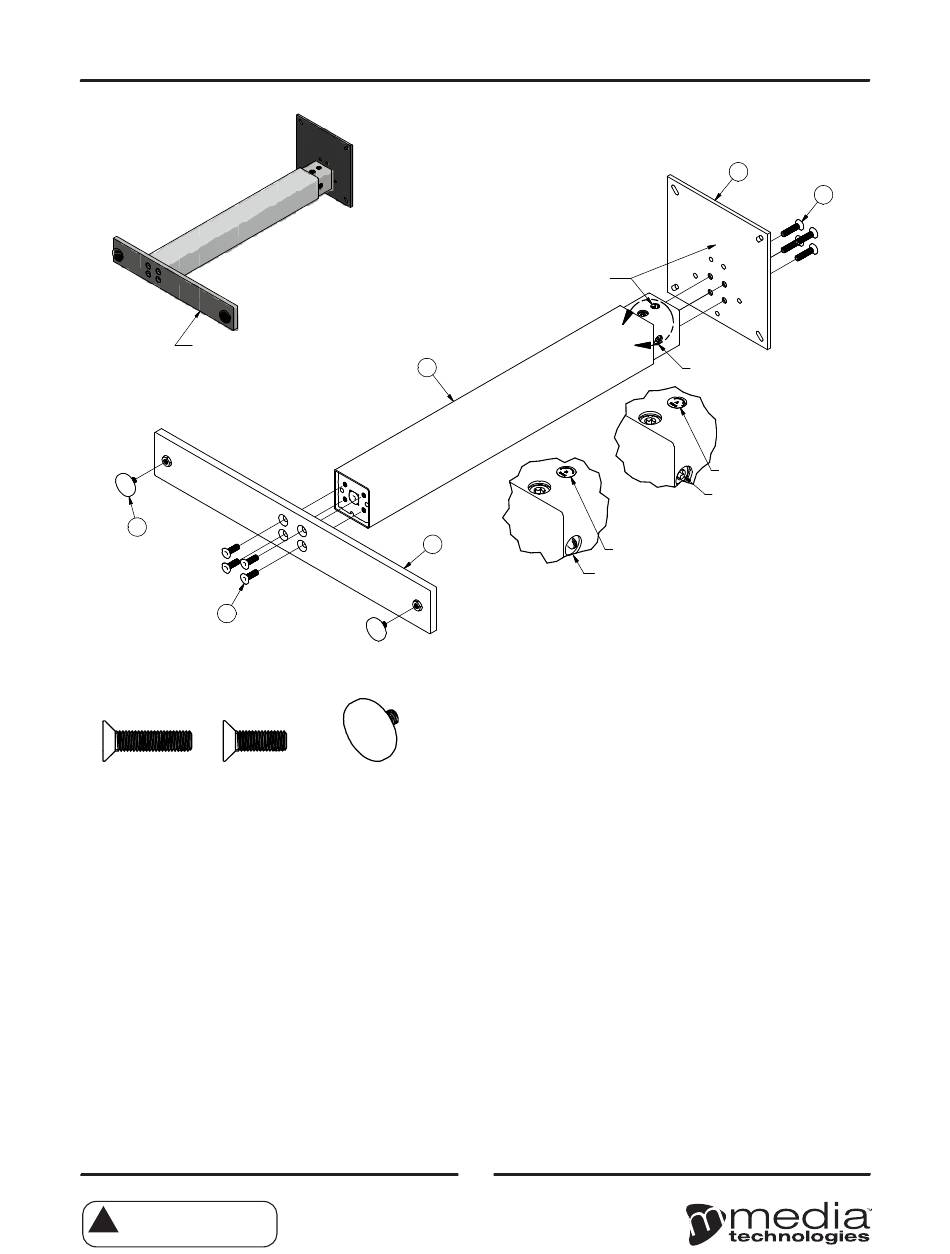

Assembling the Desk Base
Step 1:
Align the four (4) holes in the Mounting Plate (#1) with the four tapped holes in the Column (#2). Insert the M8 x 35mm Screws (#4)
thru the Mounting Plate and thread into the Column. With a 5mm Hex Drive, tighten the screws to 15 pounds of force.
Step 2:
Align the four (4) holes in the Mainbar (#3) with the four tapped holes in the Column as shown. Insert the M8 x 25mm Screws (#5) thru
the Mainbar and thread into the Column. With a 5mm Hex Drive, tighten the screws to 15 pounds of force.
Step 3:
If not pre-installed, turn the threaded end of the Levelers (#6) or casters into the threaded inserts on the bottom side of the Mainbar.
Assemble units only as described in this
!
guide. All fasteners must be tightened
securely and checked regularly. Failure to
CAUTION
do so could cause instability and injury.
Porter Desk








 Leg Assembly




 
 












 





Leveler
1
 

  
  
     
  
  
  
  
  
  
  
  
  











  Label A (CW)




 





 Label B (CCW) 





Tools Required:
• 5mm Hex Drive
