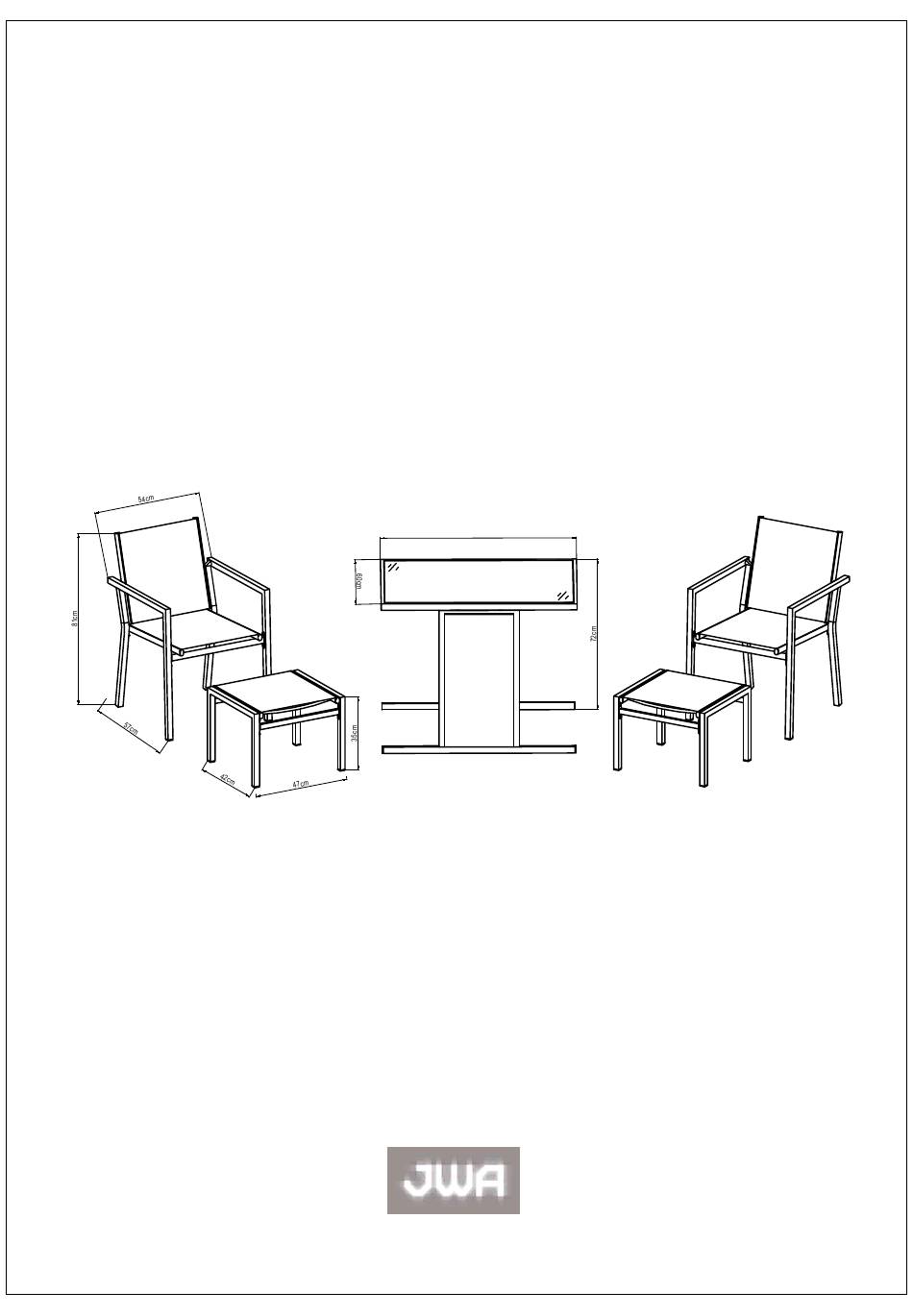

ASSEMBLY INSTRUCTIONS
NERINA
5PC Outdoor Dining Setting
ITEM CODE 82837
88cm
Imported by JWA Furniture Pty Ltd, Brisbane, QLD, Australia
For any assistance with assembly or for missing parts, please refer to your receipt

Advertisement

loading
Need help?

Need help?

Do you have a question about the NERINA 82837 and is the answer not in the manual?

Questions and answers

Related Manuals for JWA NERINA 82837

Summary of Contents for JWA NERINA 82837

  • Page 1 ASSEMBLY INSTRUCTIONS NERINA 5PC Outdoor Dining Setting ITEM CODE 82837 88cm Imported by JWA Furniture Pty Ltd, Brisbane, QLD, Australia For any assistance with assembly or for missing parts, please refer to your receipt...

  • Page 3: Parts List

    PARTS LIST Single chair Right arm Left arm 2pcs 2pcs Seat Backrest 2pcs 2pcs Bolt Bolt Bolt M6*35 M6*25 M6*15 8pcs 8pcs 4pcs Washer Allen Key 20pcs...
  • Page 4 Part A: Single chair You will need the following Left arm Seat Bolt Bolt Allen Key Washer M6*15 M6*35mm 2pcs 3pcs Step 1. Attach Left arm(2) to the Seat(3) using bolts(C) with washer(D). Attach Left arm(2) to the Seat(3) using bolts(A) with washer(D). Insert all bolts before fully tightening.
  • Page 5 Part A: Single chair You will need the following Right arm Bolt Bolt Allen Key Washer M6*35mm M6*15 2pcs 3pcs Step 2. Attach Left arm(2) to the Seat(3) using bolts(C) with washer(D). Attach Left arm(2) to the Seat(3) using bolts(A) with washer(D). Insert all bolts before fully tightening.
  • Page 6 Part A: Single chair You will need the following Backrest Bolt Allen Key Washer 4pcs M6*25mm 4pcs Step 3. Attach the Backrest (4) to left arm(2) and right arm(1) using bolt(B) with washer (D) . Insert all bolts before fully tightening. Tighten with allen key (E)
  • Page 7 Part A: Single Chair Assembly is complete...
  • Page 8 PARTS LIST Footstool 4pcs Seat 2pcs Connect tube 4pcs Bolt Bolt M6*25 M6*15 8pcs 16pcs Washer Allen Key 24pcs...
  • Page 9 Part B: Footstool You will need the following Seat 2pcs Bolt Allen Key Washer M6*25mm 4pcs 4pcs Step 1. Attach Leg (5) to the Seat(6) using bolts(B) with washer(D) . Insert all bolts before fully tightening. Tighten with allen key (E)
  • Page 10 Part B: Footstool You will need the following Connect tube 2pcs Bolt Allen Key Washer M6*15mm 8pcs 8pcs Step 2. Attach Connect tube(7) to the Leg(5) using bolts(C) with washer(D) . Insert all bolts before fully tightening. Tighten with allen key (E)
  • Page 11 Part B: Footstool Assembly is complete...
  • Page 12 PARTS LIST Table Top-frame 2pcs Glass Mid Support Bolt Bolt M6*25 M6*15 5pcs 4pcs Washer Allen Key 9pcs...
  • Page 13 Part C: Table You will need the following Top-frame 2pcs Bolt Allen Key Washer M6*25mm 4pcs 4pcs Step 1. Attach Leg (9) to the Top-frame(8) using bolts(B) with washer(D) . Insert all bolts before fully tightening. Tighten with allen key (E)
  • Page 14 Part C: Table You will need the following Mid Support Bolt Bolt Allen Key Washer M6*15mm M6*25mm 4pcs 5pcs Step 2. Attach Mid Support(10) to the Leg (9) using bolts(C) with washer(D) . Attach Mid Support (10) to theTop-frame (8) using bolts(B) with washer(D) . Insert all bolts before fully tightening.
  • Page 15 Part C: Table You will need the following Glass Step 3. Top-frame Place the tempered glass(11) into the...
  • Page 16 Part C: Table Assembly is complete...

  • Page 17: Product Care

    PRODUCT CARE: Metal Item is designed for use outdoors. However we do not recommend leaving this product outside when not in use. To preserve the life of this item, avoid prolonged exposure to the elements & store inside/under cover or use an outdoor cover. DO NOT allow the furniture to be left in the rain or left wet for extended periods of time.
