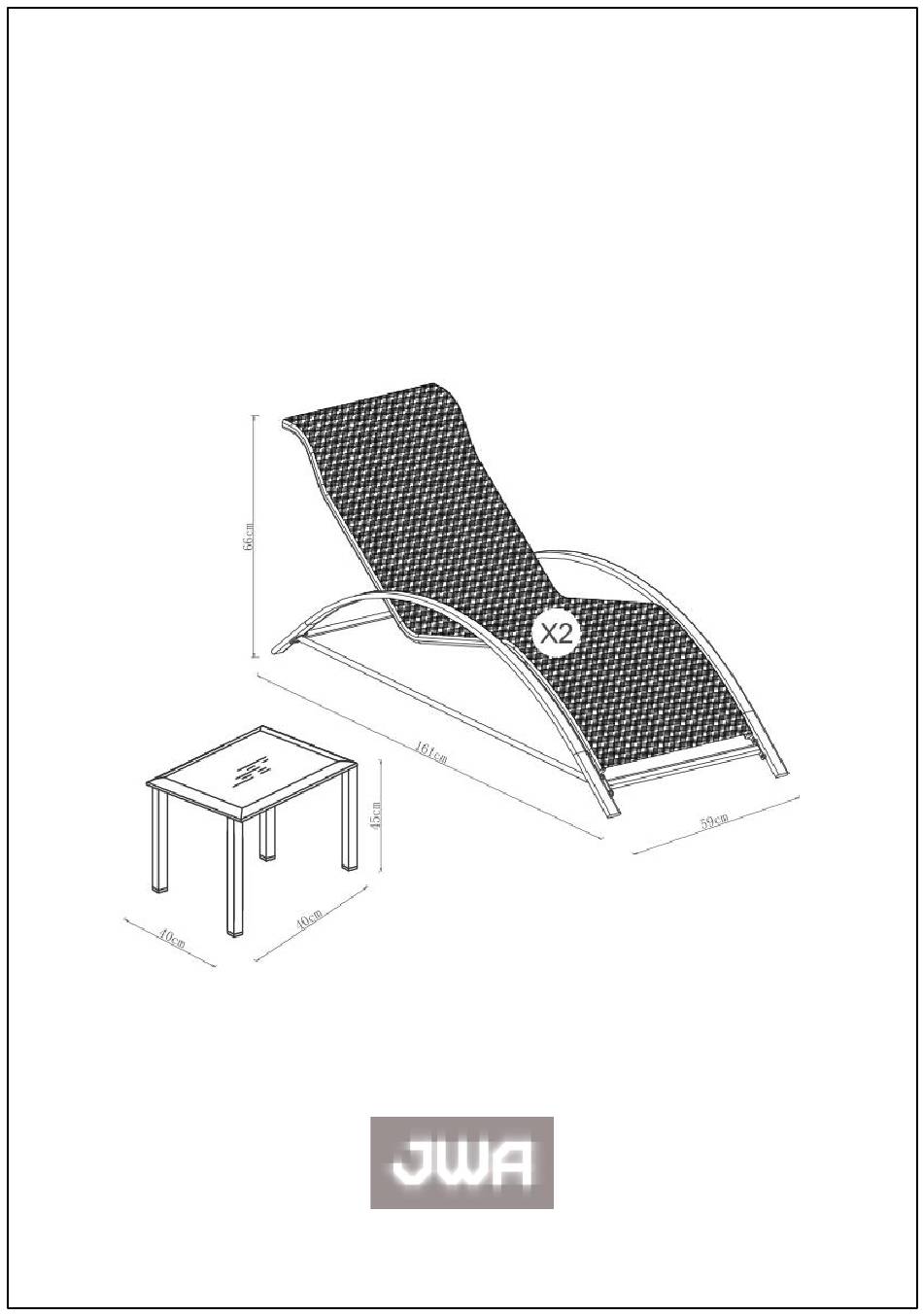

- Page 1 ASSEMBLY INSTRUCTIONS MESA 3 Piece Sun Lounge Setting ITEM CODE 68259 Imported by JWA Furniture Pty Ltd, Brisbane, QLD, Australia For any assistance with assembly or for missing parts, please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST Sun Lounge N.B. mesh is not shown on the seat for illustrative purposes Lever... - Page 4 PARTS LIST Side Table...
- Page 5 Part A: Sun lounge You will need the following Step 1 • Prepare a floor or benchtop with a protective blanket or carboard. • Connect Right Arm(1) to the 3x fixed links(B) part 3, as shown below. • Secure with 2x bolts(A) for each fixed link. Use Wrench(C). •...
- Page 6 Part A: Sun lounge You will need the following Step 2 • Attached the 2 fixed links(A) part 4, As shown below. • Secure with 2x bolt (A) at every connection point. Use Wrench(C). • Tighten only until the bolt is a little firm in the thread, do not fasten completely.
- Page 7 Part A: Sun lounge You will need the following Lever Step 3 • Spread open the seat. • Insert the 2 fixed links(A) part 4, As shown below. • Expand the fixed links(A) part 4, with the lever(E). You will need to rotate the lever, then push the lever through when you have reached the mesh and turn again.
- Page 8 Part A: Sun lounge You will need the following Step 4 • With the aide of a 2 person, insert the seat into the arms, as shown below. • Secure with a bolt (A) at the 6 connection points shown below. Use Wrench(C).
- Page 9 Part A: Sun lounge Step 5 • Stand the lounge on a level surface. • Push down on the arms of the lounge until it levels out. Do not lean beyond your own balance. • Once level fully fasten all the bolts with wrench(C). •...
- Page 10 Part B: Side Table You will need the following Step 1 • Lay the table top(7) on the pre-prepared surface, upside down with the bolt holes facing up. • Attach one of the legs(8) to the table top(7). Secure with 2x bolts(A). Fasten with wrench(C).
- Page 11 Part B: Side Table Step 2 • Stand the table up the right way. • Push down on the table until it levels out. Do not lean beyond your own balance. • Once level, turn the table back over, fully fasten all the bolts with wrench(C).
- Page 12 Assembly is complete...
