Summary of Contents for Tascam RC-9010S
- Page 1 D01166220B RC-9010S Remote Control Unit https://muzcentre.ru/ OWNER'S MANUAL...
-
Page 2: Table Of Contents
4 – Playback Outputs .................22 ................15 Analog audio outputs ..........22 Monitoring and online playback .........15 Optional accessory ............22 Monitoring playback ..........15 General .................22 Online playback ............15 Dimensional drawings ............22 Enabling online playback ........15 Setting the playback mode ...........15 TASCAM RC-9010S... -
Page 3: Introduction
This product includes the following items. Take care when opening the package not to damage the items. Keep the packing materials for transportation in the future. Please contact TASCAM if any of these items are missing or have been damaged during transportation. •... -
Page 4: Precautions For Placement
Once every five years, please contact the retailer where you • Places with significant vibrations or that are otherwise purchased the unit or a TASCAM service center for internal unstable cleaning. If the unit is not cleaned for a long time and dust is •... -

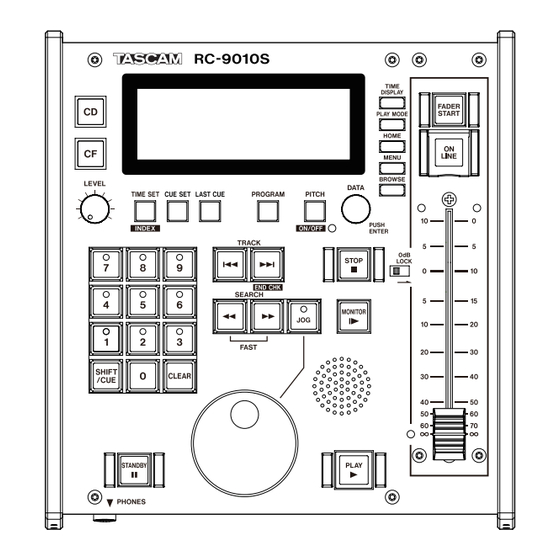

Page 5: Names And Functions Of Parts
20.) Press the PROGRAM button while pressing and holding the LAST CUE button SHIFT/CUE button to open the screen. Press this button to locate to the last cue point (last point PROGRAM added automatically) and enter playback standby. TASCAM RC-9010S... - Page 6 This button only changes the display on this remote. press a number button (1–9) that has a lit indicator, the To change the time display on a connected TASCAM main unit will locate to the set cue point and enter playback CD-9010CF/CD-9010, press the TIME DISPLAY button on standby status.
- Page 7 When in jog mode, turn the JOG dial to the right to move the playback position forward by frame. When in jog mode turn the JOG dial to the left to move the playback position backward by frame. TASCAM RC-9010S...
- Page 8 When headphones are connected to the PHONES jack, sound is not output from this speaker. If the item is set to in the MONITORING POINT PstFader menu screen, the fader will affect the volume of the SYSTEM built-in speaker. TASCAM RC-9010S...
-
Page 9: Front Panel
Armrest attachment threads MONITORING POINT PstFader menu screen, the fader will affect the output of the Attach a TASCAM AK-A9010 armrest (sold separately), which SYSTEM PHONES jack. was designed for RC-9010/RC-9010S units, here. CAUTION PHONES jack Use this standard stereo jack to connect stereo headphones. -
Page 10: Home Screen
When an EOM tally signal is being output, the “ ” blinks. (See "EOM function" in "Other settings and information display" A “ ” appears before the remaining time when shown. of the CD-9010CF/CD-9010 Owner's Manual.) TASCAM RC-9010S... -
Page 11: Menu Structure
The operation of the screen on this unit is the as same on MENU the connected CD-9010CF/CD-9010. For details about menu operation, see "Menu operation basics" in "2 – Names and Functions of Parts" of the CD-9010CF/CD-9010 Owner's Manual. TASCAM RC-9010S... -
Page 12: Preparations
The display contrast setting is retained even when the power is OFF. • This operation only adjusts the contrast of this unit. It does not adjust the contrast of a connected TASCAM CD-9010CF/ CD-9010. Setting using the controls With the Home Screen open, while pressing and holding the TIME DISPLAY button, turn the DATA dial to adjust the unit's display contrast. -
Page 13: Adjusting Display And Indicator Brightness
Setting the panel lock function and indicators of this unit. They do not adjust the brightness of a connected CD-9010CF/CD-9010. You can optionally disable most operations from the TASCAM Setting using the controls CD-9010CF/CD-9010 front panel. When the Home Screen is open, while pressing and holding the... -
Page 14: Fail Safe Function Setting
SHIFT + / button (END CHK) (END CHK) (END CHK) CLEAR + PROGRAM CLEAR + PROGRAM CLEAR + PROGRAM button (program button (program button (program clearing) clearing) clearing) JOG button STANDBY button MONITOR button JOG button MONITOR button None None TASCAM RC-9010S... -
Page 15: Playback
Set the SYSTEM menu MON MUTE ONLINE item to OFF to always send the signal through the MONITOR OUTPUTS. For details, see "Muting monitoring when online" in "Other settings and infor- mation display" of the CD-9010CF/CD-9010 Owner's Manual. TASCAM RC-9010S... -
Page 16: Playing A Track Once From The Beginning
TIME DISPLAY button, SHIFT/PROGRAM button, PITCH button, ONLINE button, SHIFT/CUE button, STANDBY button, and the controls used to adjust the display contrast and indicator brightness of this unit. (See "Fail safe function setting" on page 14.) TASCAM RC-9010S... -
Page 17: Setting The Playback Point
CF card, the last track will be selected automatically. • Press the CLEAR button after inputting a track number to undo the input. • Press the CLEAR button when there is no track number to return to the Home Screen. TASCAM RC-9010S... -
Page 18: Repeat Playback
SHIFT/CUE button to cancel A-B repeat playback. “--Repeat--”and “A-B OFF” will appear in a pop-up, and playback will continue even after the desig- nated ending point (B) is reached. • The A-B repeat playback interval cannot span more than one track. TASCAM RC-9010S... -
Page 19: Pitch Control Playback
Using the menu The procedure using the screen on this unit is the same MENU as when using a connected CD-9010CF/CD-9010. For details, see "Setting the pitch control value" in "4 – Playback" of the CD-9010CF/CD-9010 Owner's Manual. TASCAM RC-9010S... -
Page 20: Program Playback
The procedure using the screen on this unit is the same MENU as when using a connected CD-9010CF/CD-9010. For details, see "Removing tracks from a program" in "5 – Program and cue playback" of the CD-9010CF/CD-9010 Owner's Manual. TASCAM RC-9010S... -
Page 21: Clearing Cue Points
After playback of the last part of the track completes, the unit enters playback standby mode at the last cue point (where playback started last). TASCAM RC-9010S... -
Page 22: Specifications
Connector: 6.3mm (1/4") standard stereo jack Weight Maximum output level: 45 mW+45 mW (THD+N 0.1%, 32 Ω) 2.4 kg Optional accessory Operating temperature range 5–35º C (41–95º F) TASCAM AK-A9010 armrest (sold separately) Dimensional drawings 220 mm TASCAM AK-A9010 (sold separately) 220 mm 52 mm •... - Page 23 Memo TASCAM RC-9010S...
- Page 24 RC-9010S TEAC CORPORATION tascam.jp Phone: +81-42-356-9143 1-47 Ochiai, Tama-shi, Tokyo 206-8530 Japan TEAC AMERICA, INC. tascam.com Phone: +1-323-726-0303 7733 Telegraph Road, Montebello, California 90640 USA TEAC CANADA LTD. tascam.com Phone: +1905-890-8008 Facsimile: +1905-890-9888 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada TEAC MEXICO, S.A.
