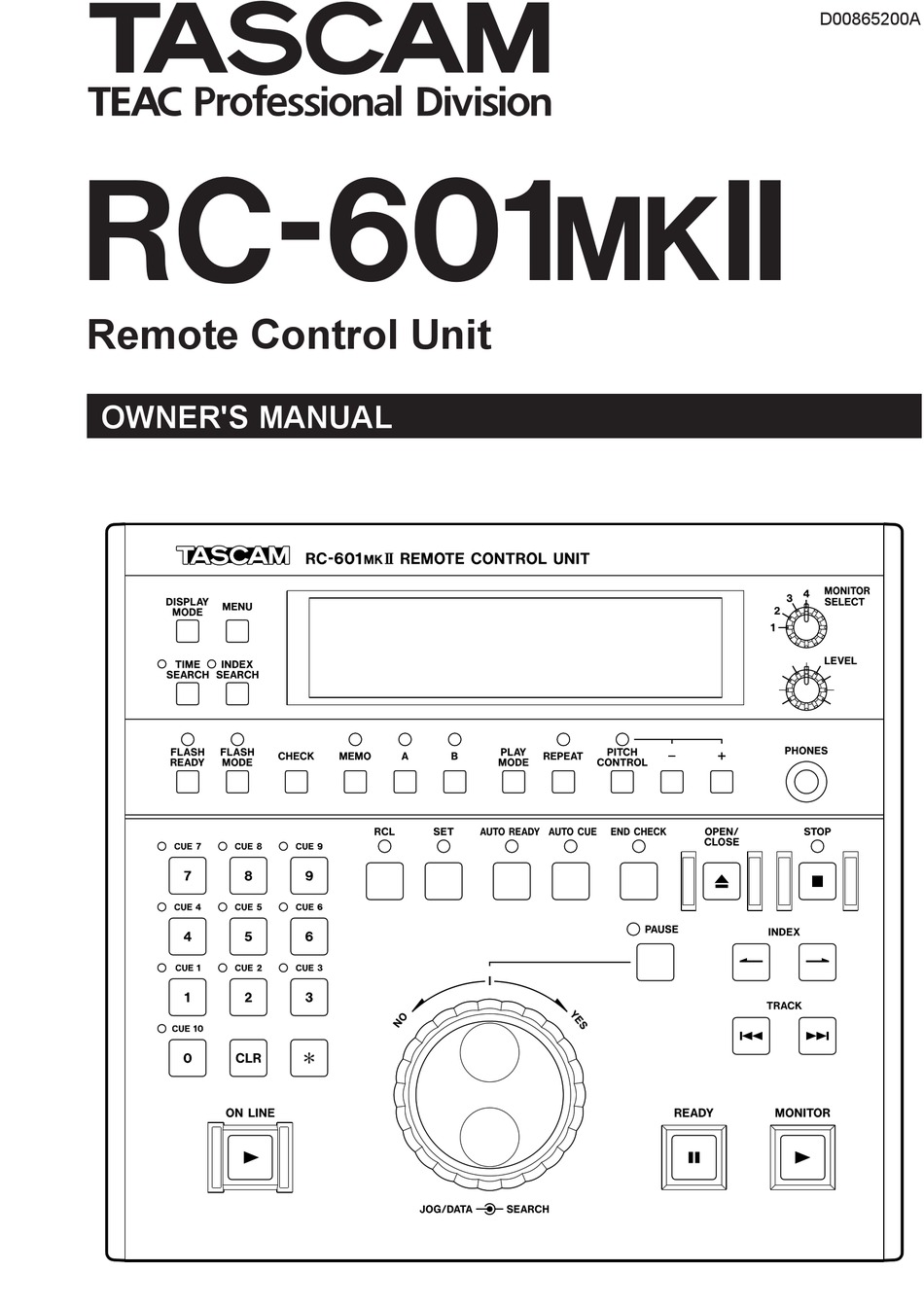

- Page 1 » D00865200A RC-601 Remote Control Unit OWNER'S MANUAL...
-
Page 2: Table Of Contents
Programming ...16 Swapping programmed tracks ...16 Adding program tunes ...16 Deleting program tunes ...16 Clearing a program ...16 TASCAM RC-601MKII Auto Cue Function ...17 Setting the Auto Cue Level ...17 Setting Auto Cue Up ...17 Auto Ready Function ...17 Pitch Control Function ...17 Incremental Play Function ...18... -
Page 3: Introduction
Set enable/disable using menu No. 17 (“RMT”). R_L (Remote + Local): Operation is possible on both the RC-601MKII and the CD-601MKII. R (Remote): Operation is possible on only the RC-601MKII. Operation of the CD-601MKII by keys other than the OPEN/CLOSE and DISP MODE key is disabled. -
Page 4: Names & Functions Of Parts
(→ page 7 “Display window”) MONITOR SELECT knob Selects the headphone monitor source from four lines of stereo signals that are input from the MONITOR IN terminal on the rear panel of the RC-601MKII. LEVEL knob Adjusts the headphone output level. PHONES terminal This is the standard phone jack for connecting stereo headphones. -
Page 5: Play Mode Key
CD-601MKII. Switches the auto ready function (for automatically standing by at the start of the next track after a track has been played) ON/OFF. When this function is ON, “A.READY” is lit in the display window. (→ page 17 “Auto Ready Function”) TASCAM RC-601MKII... -
Page 6: Rear Panel
These keys are used for specifying track numbers, specifying index numbers, entering times, and entering numerical values when registering cue points. Rear Panel TASCAM RC-601MKII CLR key When this key is pressed while displaying cue points or memo points by using the CHECK key, the currently displayed point is cleared. -
Page 7: Display Window
When disc information is displayed: “DISC” is lit. When track information is displayed: “TRACK” is lit. Character display area Displays CD text or menu item details. Incremental play display area Lights when the incremental play function is ON. (→ page 18 “Incremental Play Function”) TASCAM RC-601MKII... -
Page 8: Basic Operations
2 Set whether to enable or disable operation on the CD-601MKII. Select “R_L” or “R” at menu item No. 17 (“RMT”). R_L: Operation is possible from both the RC-601MKII and CD-601MKII. R: Operation is possible from only RC-601MKII. Operation of the CD-601MKII by other than the OPEN/CLOSE key and DISP MODE key is disabled. -
Page 9: Playing From An Intermediate Point In A Tune
For details on menu operations, see “Menu Operations” (page 13). The auto-registered cue points above can be assigned to numeric keys (CUE 1 to CUE 10) on the RC-601MKII. (→ page 21 “Functions using cue points”) TASCAM RC-601MKII... -
Page 10: Details Of Transport Key Operations
UNBALANCED analog output terminal and SPDIF digital output terminal. (→ page 24 “Setting the Terminals for Monitor Output”) TASCAM RC-601MKII [NOTE] • When the failsafe function is ON, operation of keys other than STOP, PLAY MODE and DISPLAY MODE is not accepted during online playback. -
Page 11: Selecting The Playback Point
RC-601MKII operation after track selection Operation of the remote control unit after a track is selected by the TRACK key differs according to the operating state... -
Page 12: Selecting The Index
The index search function ON/OFF setting is backed up on the remote control unit. So, the same setting is reproduced when the remote control unit is next turned TASCAM RC-601MKII Searching for an intermediate point in a tune In the monitor playback mode or monitor PAUSE, you can use the SEARCH dial or JOG/DATA dial to search for an intermediate point in a tune. -
Page 13: Menu Operations
* Menu items followed by (*) in the above table are valid when the Remote Control Unit RC-601MKII is connected. * Menu items followed by (**) in the above table are external control-related items. For details on these items, refer to the CD-601MKII Owner’s Manual. -
Page 14: Menu Operation Basics
All operations including menu operations on the CD-601MKII are not accepted while menu operations are being performed on the RC-601MKII. • Likewise, when menu operations are being performed on the CD-601MKII, all RC-601MKII operations including menu operations are not accepted. -
Page 15: Saving Menu Settings
[NOTE] • An all clear also clears the disc information of memory banks (A to E). Clearing individual user banks 1 Select the user bank to be cleared in menu No. 22. 2 Press the CLR key. TASCAM RC-601MKII... -
Page 16: Playback-Related Functions
5 When you have finished making the program, press the MENU key to exit the menu mode. TASCAM RC-601MKII Swapping programmed tracks You can swap programmed tracks by performing the following procedure while the program setup screen is displayed. -
Page 17: Auto Cue Function
Note, however, that when the remote control unit is synchronized to a 48 kHz external word clock signal, a digital signal of sampling frequency 48 kHz is output. TASCAM RC-601MKII... -
Page 18: Incremental Play Function
Turning the incremental play function ON/OFF is performed using menu No. 06 (“INCR_P”). Selection: OFF (default setting): ON TASCAM RC-601MKII Repeat Function In the online playback and monitor playback modes, the entire disc, current track, entire program, or a specified section can be repeatedly played back. -
Page 19: Functions Using Memo (A, B) Points
CHECK key until the memo point whose setting is to be cleared is displayed in the display window. Press the CLR key. This clears the memo point settings, and the indicator of the memo point goes out. TASCAM RC-601MKII... -
Page 20: Confirming The Audio Of Memo Points (Rehearsal)
TASCAM RC-601MKII Playing Back up to Point B When only point B is set, and monitor playback or online... -
Page 21: Functions Using Cue Points (Cue1 To Cue10)
For this reason, other cue points can be located afterwards simply by pressing a numeric key. To cancel the direct cue point locate function, press the RCL key. (The indicator goes out.) TASCAM RC-601MKII... -
Page 22: Confirming The Time Of Cue Points
2 Press the CLR key. This clears the cue point settings, and the indicator of the cue point goes out. TASCAM RC-601MKII Flash Start The flash start setting allows you to instantly play back from a preset cue point. -
Page 23: Saving Disc Information
• When set to “U1” to “U5”: All disc information is cleared. • When set to “PRE”: All disc information is cleared, and the menu settings of user banks “U1” to “U5” are returned to their default settings. TASCAM RC-601MKII... -
Page 24: Output-Related Settings
Audio signals are output from the UNBALANCED analog output terminal and SPDIF digital output terminal only during monitor playback. TASCAM RC-601MKII Setting Stereo/Monaural The playback output signal can be set to monaural. Set monaural using menu No. 8 (“OUTPUT”). -
Page 25: Other Functions & Settings
OTHER FUNCTIONS & SETTINGS Headphone Monitor Functions On the RC-601MKII, you can input stereo audio output signals (max. 4 systems) from external equipment, and monitor these signals using the headphone connected to the PHONES terminal. Connecting Audio Signals Stereo audio signals of up to four systems can be input to the MONITOR IN terminal on the rear panel. -
Page 26: Displaying The End Of Track Warning
• Selection of the time display mode by the DISPLAY MODE key is applied only on the RC-601MKII. For selection of the time display mode on the CD-601MKII, the DISP MODE key on the CD-601MKII is used. Note, however, that the menu No. 19 (“TIME”) setting is valid... -
Page 27: Clearing The Frame Display
The REMOTE (SERIAL) terminal can be used to control the CD-601MKII from a computer. (Note, however, that when the remote control unit RC-601MKII is used, the REMOTE (SERIAL) terminal is exclusively for the remote control unit, and cannot be used for other applications.) For details on external control, refer to the Owner’s Manual... -
Page 28: Specifications
ERR05 TRAY LOADING Error ERR06 SLED Error ERR07 SYSTEM Error ERR08 MEMORY Error TASCAM RC-601MKII External Dimensions Remedy • The disc is scratched. → Replace the disc. • The disc is dirty. → Clean the disc. Replace the disc. Check the disc tray for foreign objects. - Page 29 TEAC AUSTRALIA PTY.,LTD. A.B.N. 80 005 408 462 Phone: +61-3-9672-2400 Facsimile: +61-3-9672-2249 280 William Street, Port Melbourne, Victoria 3000, Australia TEAC ITALIANA S.p.A. Phone: +39-02-66010500 Via C. Cantu 11, 20092 Cinisello Balsamo, Milano, Italy » www.tascam .com www.tascam.com www.tascam.com www.tascam.com www.tascam.co.uk www.tascam.de www.tascam.com.au www.teac.it...
