SMC Networks WUSB-N2 - annexe 2 Manual

Draft 11n wireless usb2.0 adapter
Hide thumbs Also See for WUSB-N2 - annexe 2:
Table of Contents

Advertisement

Quick Links

Download this manual

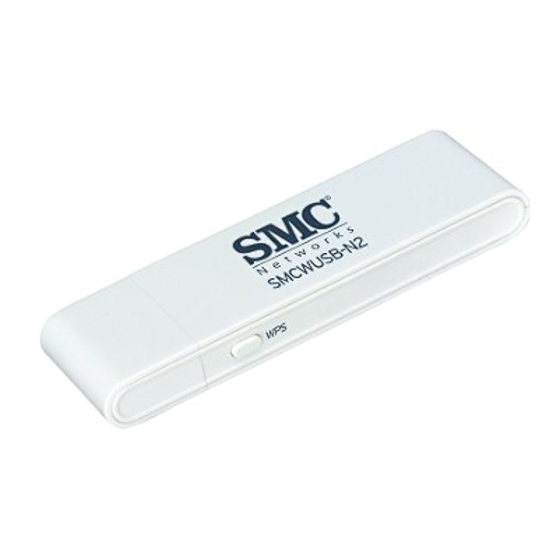

EZ Connect™ N
Draft 11n Wireless USB2.0 Adapter
SMCWUSB-N2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WUSB-N2 - annexe 2 and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks WUSB-N2 - annexe 2

Summary of Contents for SMC Networks WUSB-N2 - annexe 2

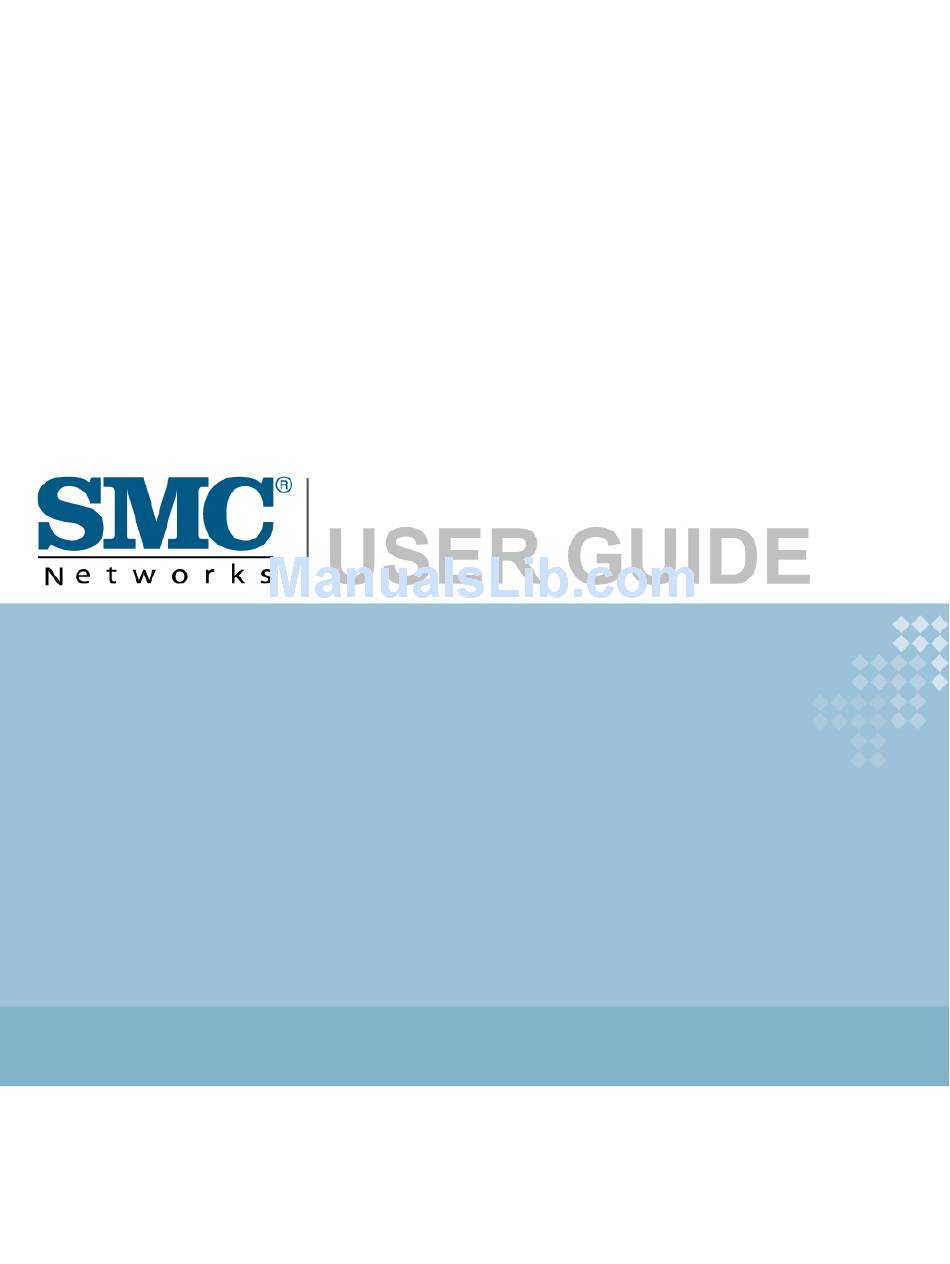

  • Page 1 EZ Connect™ N Draft 11n Wireless USB2.0 Adapter SMCWUSB-N2...

  • Page 2: User Guide

    EZ Connect N Draft 11n Wireless USB 2.0 Adapter User Guide The easy way to make all your network connections July 2009 Rev: 1.0.0 20 Mason 1910020176 Irvine, CA 92618 Phone: (949) 679-8000...
  • Page 3 No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice.
  • Page 4 Warranty and Product Registration To register SMC products and to review the detailed warranty statement, please refer to the Support Section of the SMC Website at http://www.smc.com...

  • Page 5: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 6 This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark General authorization required for outdoor use and Bulgaria public service Outdoor use limited to 10...

  • Page 7: Table Of Contents

    CONTENTS Package Contents ....................1 Chapter 1. Introduction ..................2 Product Overview ....................... 2 Features ..........................2 LED Status ......................... 3 Chapter 2. Installation Guide ................4 Hardware Installation......................4 Software Installation ......................4 2.2.1 Overview ........................4 2.2.2 Software Installation for Windows XP................4 Chapter 3.
  • Page 8 PIN method ........................28 5.2.1 Enter a PIN into your AP device ................28 5.2.2 Enter the PIN from your AP device................29 Appendix A: Specifications................... 31 Appendix B: Glossary.................... 32...

  • Page 9: Package Contents

    User Manual Note: Please register this product and upgrade the product warranty at http://www.smc.com Please inform your distributor if there are any incorrect, damaged, or missing parts. If possible, retain the carton and the original package materials, in case there is a need to return the...

  • Page 10: Chapter 1. Introduction

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Chapter 1. Introduction 1.1 Product Overview Thank you for purchasing the EZ Connect™ N Draft 11n Wireless USB2.0 Adapter (SMCWUSB-N2). Designed for both the home and office, this wireless USB2.0 adapter provides the speed, coverage and security expected by today's wireless users. The SMCWUSB-N2 is 802.11n draft v2.0 compliant while maintaining full backwards compatibility with the Wireless-G (802.11g) and Wireless-B (802.11b) standards.

  • Page 11: Led Status

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter 1.3 LED Status LED Indications Status Working Status Status Blue adapter scanning networking Flashing Alternately connection. Activity Blue Status Blue The adapter is connected but is not transmitting or Intermittently receiving data. Activity Blue Status Blue Flashing The adapter is transmitting or receiving data.

  • Page 12: Chapter 2. Installation Guide

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Chapter 2. Installation Guide 2.1 Hardware Installation There are two options for installing the SMC Adapter: Option 1: Plug the Adapter directly into the USB port on your computer. Option 2: Connect the Adapter and your computer through the USB extension cable in the package.
  • Page 13 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 2-1 The InstallShield Wizard prompts you for confirmation. Click Next to continue. Figure 2-2...
  • Page 14 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Choose the Setup type. It is recommended that you select Install SMC Wireless Utility and Drivers. Select Install Drivers only if you prefer to use Windows to configure and manage your wireless network connections. Click Next to continue.
  • Page 15 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 2-4 In the Program Folder screen you may create a new folder name for the software or select one from the Existing Folders list. It is recommended that you keep the default setting. Click Next to continue the installation.
  • Page 16 The wizard now begins installation. Figure 2-7 Note: In Windows XP, if the following warning appears (Figure 2-8), click Continue Anyway to continue the installation. The SMC drivers have been tested thoroughly and are able to work with the Windows operating system.
  • Page 17 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 2-8 Click Finish to complete the installation and exit the Wizard. Figure 2-9...

  • Page 18: Chapter 3. Configuration For Windows Xp

    The EZ Connect™ N 802.11n Wireless USB 2.0 Adapter can be configured by the SMCWUSB-N2 Wireless Utility in Windows 2000 and XP. This chapter explains how to configure and use the SMC Wireless Utility program. For the configuration in Windows Vista, please refer to Chapter 4.
  • Page 19 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 3-1 The following table describes the items on the Current Status screen. Profile Name - This shows the name of current selected configuration profile. The configuration of Profile name will be described on the General tab of Profile Management. Link Status - This shows whether the station is associated to the wireless network.

  • Page 20: Profile Management

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Signal Strength - This indicates the strength of the signal. Click Advanced on the screen above to view other detailed information about the program and its operations. 3.2 Profile Management Click the Profile Management tab of the SMCWUSB-N2 Wireless Utility to configure your wireless network connection.
  • Page 21 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter you will see the Management dialog box (Figure 3-3). Configure the General tab Profile Name - Enter the Profile name which identifies the configuration profile. This name must be unique. Note that the profile names are not case-sensitive. Client Name - Enter the Profile name which identifies the client machine.
  • Page 22 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 3-4 WPA/WPA2: Wi-Fi Protected Access WPA/WPA2 Passphrase: Wi-Fi Protected Access Passphrase (Recommended for maximum security) 802.1x: Enables 802.1x security. Pre-Shared Key (Static WEP): Enables the use of shared keys that are defined on both the access point and the station.
  • Page 23 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter To configure the Encryption Keys under the Pre-Shared keys (Static WEP) Security mode: Figure 3-5 Note: Select different Security Options, the configurations are different; you can select the appropriate security option and configure the exact key as your need. Configure the Advanced tab This screen below allows you to make advanced configuration for the profile.
  • Page 24 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 3-6 Power Save Mode - Please select the power save mode from the drop-down list. • Maximum - Selects maximum mode to let the access point buffer incoming messages for the Adapter. The Adapter will detect the access point if any messages are waiting periodically.
  • Page 25 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter the adapters must be in Ad-Hoc mode to communicate. Wireless Mode: Specifies 2.4 GHz 300 Mbps, 2.4 GHz 54 Mbps or 2.4 GHz 11 Mbps operation in an access point network. The Wireless adapter must match the wireless mode of the access point with which it associates.

  • Page 26: Remove A Profile

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter 3.2.2 Remove a profile Go to the Profile Management tab (shown in Figure 3-2). Select the profile name in the Profiles List. Click Remove. Note: The profile being used cannot be removed. 3.2.3 Switch to another Profile Go to the Profile Management tab (shown in Figure 3-2).

  • Page 27: Scan Available Networks

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Click Open, the imported profile will then appear in the Profiles List. Figure 3-9 3.2.6 Scan Available Networks Click Scan on the Profile Management tab (Figure 3-2), the Available Infrastructure and Ad Hoc Networks window will appear as below. Click Refresh to refresh the list at any time.

  • Page 28: Auto Profile Selection Management

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter 3.2.7 Auto Profile Selection Management The auto selection feature allows the adapter to automatically select a profile from the list of profiles and use it to connect to the network. To add a new profile into the Auto Selected Profiles list, please follow these steps.

  • Page 29: Diagnostics

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter priority and the same SSID as one of the found networks will be selected for network connection. If the connection fails, the client adapter will try the next highest priority profile that matches the SSID until a successful network connection is built.

  • Page 30: Check Receive And Transmit Statistical Information

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter MAC Address - The MAC address of the wireless network adapter. Driver - The driver name and path of the wireless network adapter driver. Driver Version - The version of the wireless network adapter driver. Driver Date - The creation date of the wireless network adapter driver.

  • Page 31: Chapter 4. Configuration For Windows Vista

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Chapter 4. Configuration for Windows Vista After installing the SMCWUSB-N2 adapter on Windows Vista, the Wireless Network Connection message box appears. Figure 4-1 A green icon indicates that the connection has been established. A gray icon indicates no connection.
  • Page 32 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 4-3 To continue, click Connect Anyway. Click the Cancel button to end the Installation. Figure 4-4...
  • Page 33 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Click close to exit. Figure 4-5 The screen below will appear if the connection is successful. Figure 4-6...

  • Page 34: Chapter 5. Wps Configuration

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Chapter 5. WPS configuration The Wi-Fi Protected Setup (WPS) function allows you to establish a wireless connection with your WPS-enabled wireless router or access point easily, using either Push Button Configuration (PBC) method or PIN method. Install the WPS software on your computer.
  • Page 35 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 5-2 Select Push the button on my access point and click Next. Figure 5-3 Wait for the following screen to appear. Click Finish to complete the WPS configuration.

  • Page 36: Pin Method

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 5-4 5.2 PIN method There are two ways to configure the WPS by PIN method: Enter the PIN for SMCWUSB-N2 into your AP device Enter the PIN from your AP device into the SMCWUSB-N2 Wireless Utility. Following are the detailed configuration procedure of each way.

  • Page 37: Enter The Pin From Your Ap Device

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 5-5 On the management interface of your wireless router/AP, select PIN as the WPS method. Enter the PIN value shown in Figure 5-5 and connect. 5.2.2 Enter the PIN from your AP device Open the WPS Utility and click Next to continue.
  • Page 38 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Figure 5-6 When Figure 5-4 appears, the WPS configuration is complete. Note: If you generate a new PIN code for your router or access point, please enter the new one instead.

  • Page 39: Appendix A: Specifications

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Appendix A: Specifications General Specifications Interface USB 2.0 Interface Standards IEEE802.11n (draft); IEEE802.11g; IEEE802.11b Operating System Windows 2000, XP and Vista 11b：1/2/5.5/11Mbps 11g：6/9/12/18/24/36/48/54Mbps Radio Data Rate 11n：Up to 300Mbps 11b: CCK,QPSK,BPSK; 11g: OFDM; Modulation 11n: QPSK,BPSK,16-QAM,64-QAM Media Access Protocol CSMA/CA with ACK...

  • Page 40: Appendix B: Glossary

    SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter Appendix B: Glossary 802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks.
  • Page 41 SMCWUSB-N2 802.11n Wireless USB 2.0 Adapter developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast.
  • Page 42 Műszaki tamogat informacio elerhető -on www.smc.com 简体中文: 技术支持讯息可通过www.smc-prc.com查询 繁體中文: 產品技術支援與服務請上 www.smcnetworks.com.tw ไทย: สามารถหาข้ อ มู ล ทางด้ า นเทคนิ ค ได้ ท ี ่ www.smc-asia.com 한국어: 기술지원관련 정보는 www.smc-asia.com을 참고하시기 바랍니다 INTERNET E-mail address: www.smc.com→ Support→ By email Driver updates: www.smc.com→ Support→ Downloads World Wide Web: http://www.smc.com/...
