OVERVIEW
The EZ Connect™ N 802.11n Wireless USB2.0 Adapter (SMCWUSB-N2) enables Wireless-N connectiv-
ity to your desktop or notebook computer and provides improved throughput and range than existing
802.11g technology. The SMCWUSB-N2 is 802.11n draft v2.0 compliant while maintaining full backwards
compatibility with the Wireless-G (802.11g) and Wireless-B (802.11b) standards. It utilizes advanced MIMO
(Multiple-In, Multiple-Out) technology to deliver incredible speed and range. With wireless speeds up to
300Mbps and extended coverage, there is enough bandwidth to simultaneously stream video and audio, play
online games, transfer large files, make VoIP calls and surf the Internet. With security being a key consider-
ation, SMCWUSB-N2 supports the latest WPA and WPA2 wireless encryption standards, which prevent un-
authorized access to wireless networks and ensure data is secure. Wireless security can also be set up easily
using Wi-Fi Protected Setup™ (WPS) that enables push button (PBC) or PIN configuration. The SMCWUSB-
N2 includes an easy installation wizard which guides you step-by-step through the process. Once installed
the WLAN utility allows you to scan for available wireless networks and manage multiple network profiles so
connecting becomes instantaneous.
KEY FEATURES
Wireless-N (802.11n draft v2.0) compliant
Delivers speeds up to 300Mbps and extended coverage. Perfect
for streaming video and music, online gaming and networking
multiple PC's. Fully backwards compatible with Wireless-G and
Wireless-B products.
Wi-Fi Protected Set-up™ (WPS)
Makes wireless security setup easy with push button (PBC) or PIN
configuration.
APPLICATION DIAGRAM
LEGEND
10G FIBER
1G FIBER
10G COPPER
1G COPPER
10/100
PoE
WIRELESS
LEGEND
10G FIBER
1G FIBER
10G COPPER
1G COPPER
10/100
PoE
PHONE CABLES
WIRELESS

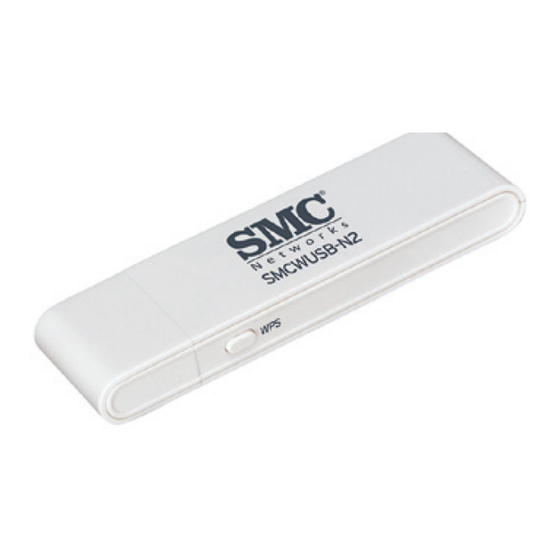

SMCWUSB-N2
EZ Connect™ N 802.11n Wireless USB2.0 Adapter
WPA/WPA2 Encryption
Prevents unauthorized access to your wireless network and
ensures your data is secure.
Installation Wizard
Easy installation with step-by-step guidance.
