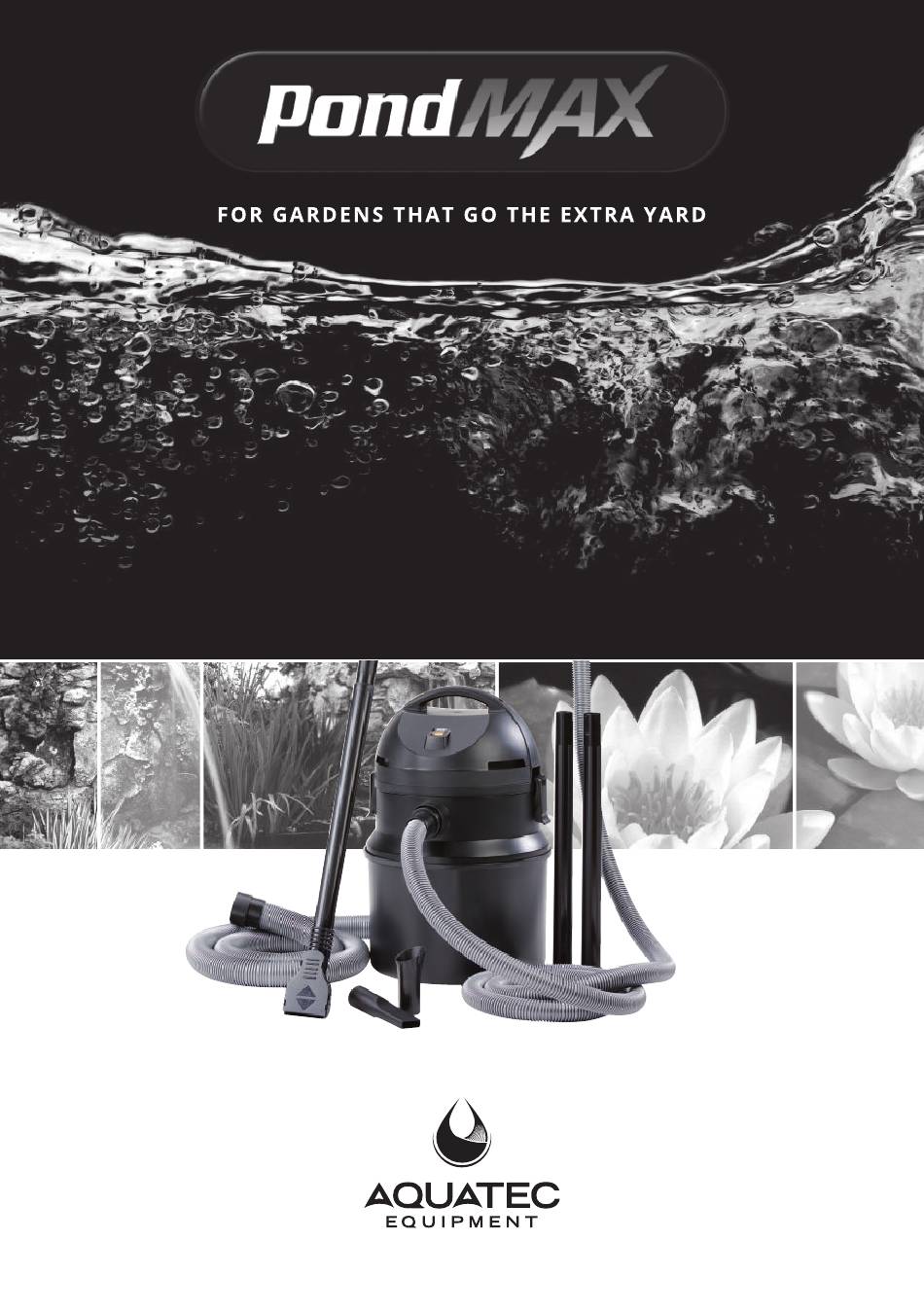

- Page 1 PV30HD Pond Vacuum INSTRUCTION MANUAL DATE MODEL AUG 2024 v1.2 03OV250...
-
Page 2: Technical Specifications
WELCOME TO THE WORLD OF PONDMAX™. YOU MADE THE RIGHT CHOICE INVESTING IN THIS QUALITY PRODUCT. THANK YOU AND ENJOY. BEFORE USING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS CAREFULLY AND MAKE YOURSELF FULLY FAMILIAR WITH THE UNIT. PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. -
Page 3: Important Safeguards
PV30HD VACUUM DESCRIPTON & FEATURES Your PondMAX Pond Vacuum has been manufactured with advanced technology to provide you a convenient, painless and e cient solution for routine cleaning of your pond and waterfeature. • This multi-function pond vacuumis designed for wet •... -
Page 4: Exploded View
EXPLODED VIEW Delivery Scope & Unit Configuation • The parts included in the scope of delivery are inside the container and Motor Housing have to be removed first. On/ O Switch How to proceed: 30L Container Locking Clip 1. Undo the slide locking clips and remove the motor housing Inlet, suction hose connection 2. -
Page 5: Operation
PV30HD VACUUM OPERATION Installing the unit Use as sludge remover • Place the unit at least 2 m from the pond and above the • The operating modes “suction” and “emptying” each last water level. approx. 25 s. The unit switches over automatically between the operating modes. -
Page 6: Maintenance And Cleaning
MAINTENANCE AND CLEANING How to proceed: 7. Clean the bottom of the motor housing. 1. Switch o the unit and disconnect the power plug. 8. Check the rubber valve in the drain hose and clean. 2. Disconnect the hoses. 9. Reassemble the unit in the reverse order. 3. -
Page 7: Troubleshooting
PV30HD VACUUM TROUBLESHOOTING Problem Reason Solution The non-return valve must be located at the free Drain hose incorrectly fitted THE UNIT DOES NOT end of the drain hose PERFORM ITS SUCTION FUNCTION Excessive height di erence between water level Places the unit at water level height and unit Dirt has accumulated in the foam filter, in the suction Remove soiling... - Page 8 • It is the customer’s responsibility to return the faulty appliance for any warranty claim, to Aquatec. • For any warranty to be valid, an original proof of purchase must be provided. Please consult your retailer for quality original PondMAX replacement parts.
