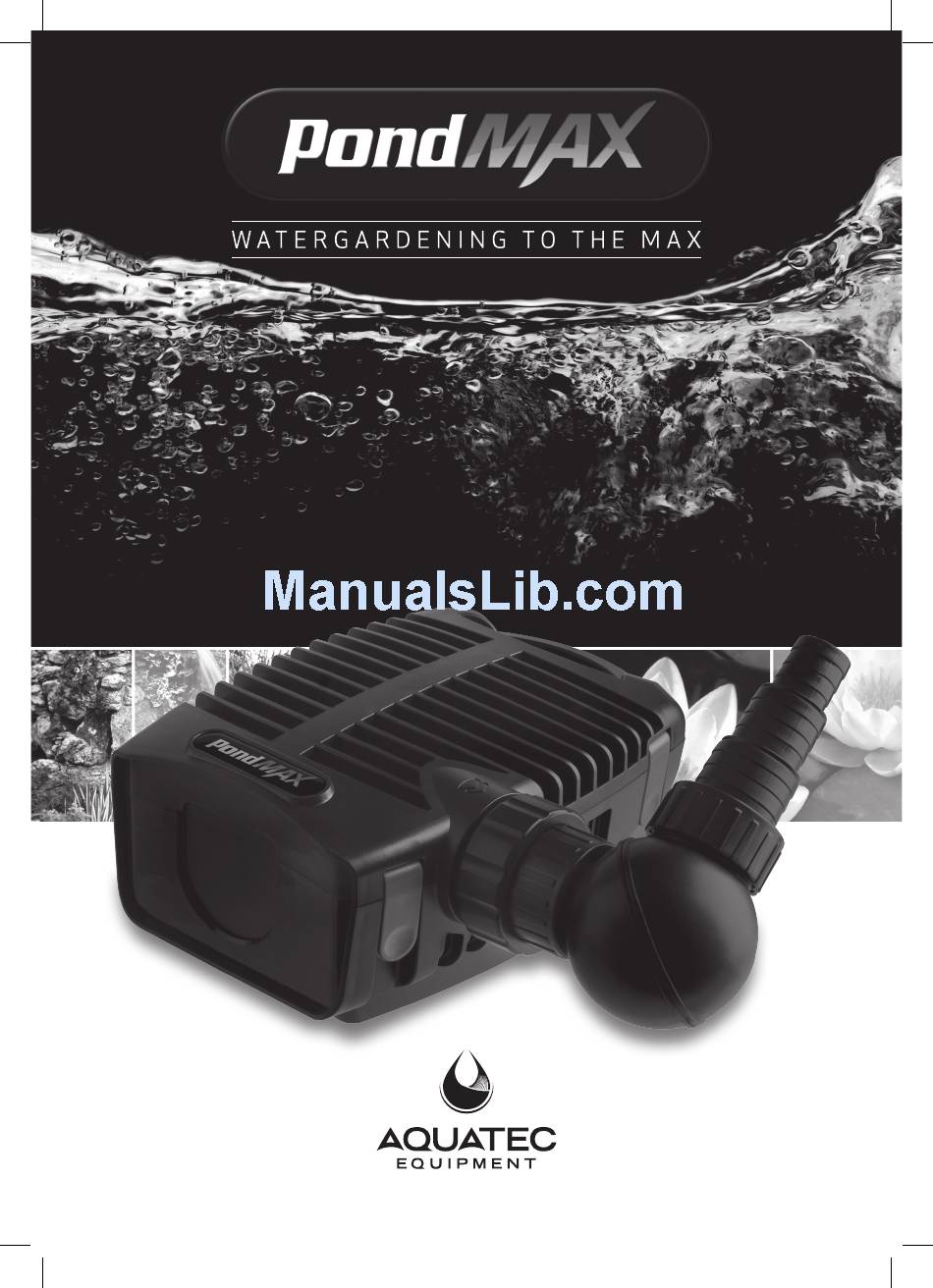

FILTRATION & WATERFALL PUMP
DATE
JULY 2017 v1.0
PMAX PU Pumps Instructions.indd 1
SUBMERSIBLE
INSTRUCTION MANUAL
HOTLINE 1300 AQUATEC
MODEL
PU3500
PU5500
PU7500
PU10500
PU12500
26/7/17 1:03 pm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PONDMAX PU3500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aquatec PONDMAX PU3500

  • Page 1 SUBMERSIBLE FILTRATION & WATERFALL PUMP INSTRUCTION MANUAL MODEL PU3500 PU5500 PU7500 DATE PU10500 HOTLINE 1300 AQUATEC JULY 2017 v1.0 PU12500 PMAX PU Pumps Instructions.indd 1 26/7/17 1:03 pm...
  • Page 2: Technical Specifications

    WELCOME TO THE WORLD OF PONDMAX™. YOU MADE THE RIGHT CHOICE INVESTING IN THIS QUALITY PRODUCT. THANK YOU AND ENJOY. TECHNICAL SPECIFICATIONS DESCRIPTION PU3500 PU5500 PU7500 PU10500 PU12500 MAXIMUM WATER FLOW(L/H) 3600 5500 7500 10500 12500 MAXIMUM HEAD (m) POWER CONSUMPTION* (W) 100W 140W VOLTS (V)
  • Page 3: Important Safeguards

    SUBMERSIBLE FILTRATION & WATERFALL PUMPS BENEFITS PondMAX Filtration & Waterfall Pumps are suitable for use in many different applications including waterfalls and Biological Filter systems. Your pump has a single moving part (an impeller set) enabling easy cleaning and maintenance. •...
  • Page 4 PRODUCT SPECIFIC SAFEGUARDS • Do not operate the pump without water at any time, permanent damage may occur. • Be sure the equipment is submerged completely in the water. The depth should not be greater than 2m. Do not use this pump in a dry mounted application.
  • Page 5 SUBMERSIBLE FILTRATION & WATERFALL PUMPS 1. Clean the housing and pump with a suitable brush, taking care to clean off sludge, algae and debris. 2. To maintain the impellor of the pump, turn the Impellor Cover in an anti-clockwise direction as indicated by the arrow, to the stop position.
  • Page 6: Exploded View

    EXPLODED VIEW IMPORTANT These accessories and attachments are recommended for use with your PondMAX product specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use the accessory or attachment for its stated purpose. 12.
  • Page 7: Troubleshooting

    SUBMERSIBLE FILTRATION & WATERFALL PUMPS TROUBLESHOOTING Problem Reason Solution Check that the plug is connected No Power and turned on Sponges and filter media Clean the sponges and filters blocked with sludge Water Pump Not Impellor is blocked with Clean the Impellor as per Working sludge or limescale the instructions...
  • Page 8: Limited Warranty

    Australia Consumer Law. The Warranty is provided to the original purchaser of the product on the following terms: • The Warranty is given by Chemkay Pty Ltd trading as Aquatec Equipment: PO Box 2087, Seville Grove, WA 6112. Tel 1300 552 202 or email sales@aquatecequipment.com.

This manual is also suitable for:

Pondmax pu5500Pondmax pu10500Pondmax pu7500Pondmax pu12500
