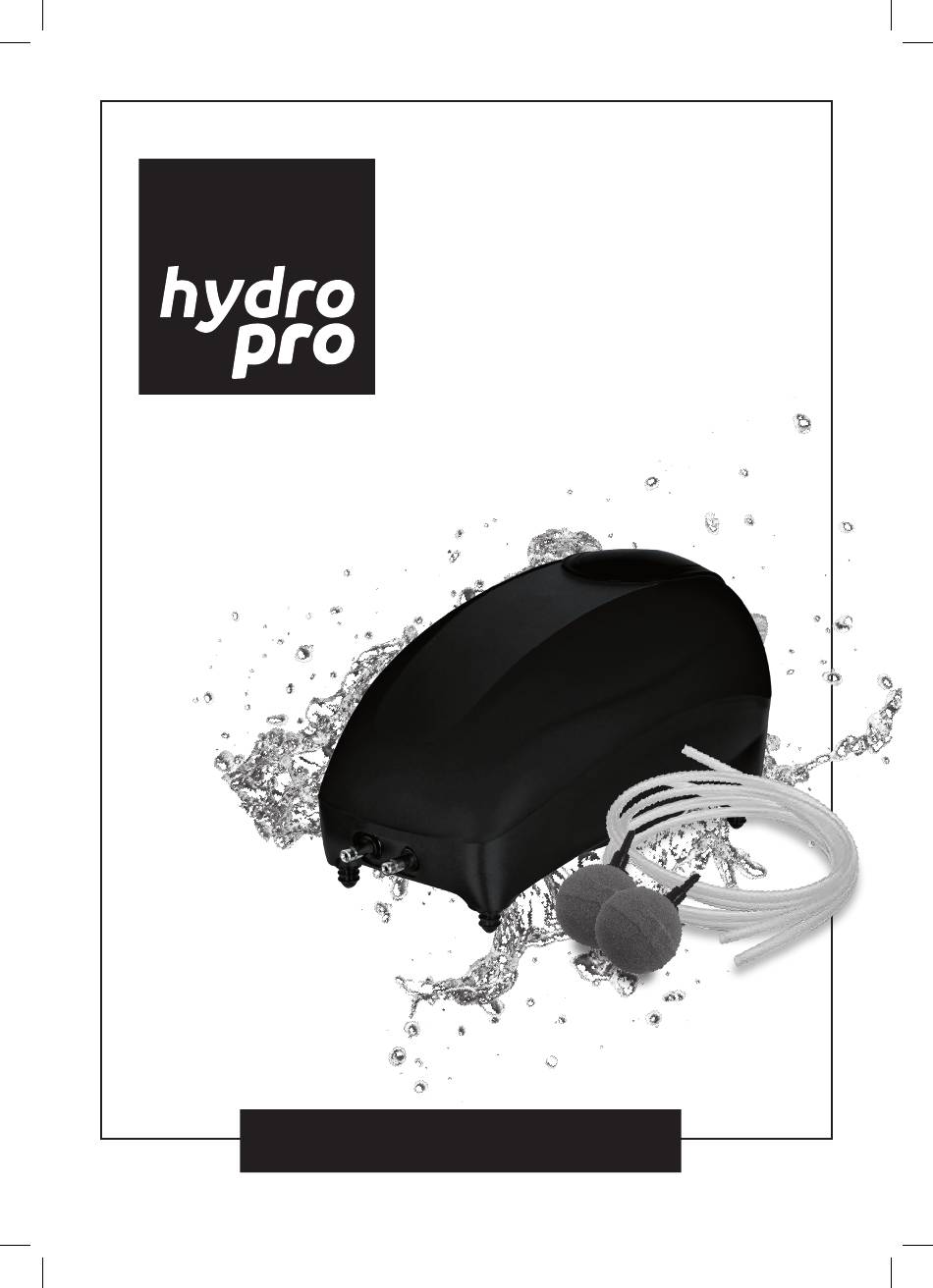

- Page 1 AIR PUMP Z2010 Z4010 1300 AQUATEC aquatecequipment.com QUICKSTART GUIDE HPRO Air Pump Z2010_Z4010 Instructions.indd 1 22/2/19 11:07 am...
-
Page 2: Pump Model
Congratulations on your purchase of this product by Before using your Air Pump, please read the following instructions carefully. PUMP MODEL HZ2010 HZ4010 RECOMMENDED POND SIZE UP TO 2,000L UP TO 4,000L MAXIMUM OPERATING DEPTH 1.2M AIR FLOW RATE 3.5LPM x 2 7.5LPM x 2 POWER* 3.3W... -
Page 3: Important Safeguards
AIR PUMP INSTRUCTION MANUAL BENEFITS INCLUDE The Hydropro Aeration Kits have been manufactured with advanced technology to provide you with the best quality aeration for smaller scale ponds or water features. Visit our website to view our range of pond filtration, outdoor/underwater lighting, water treatments and general accessories. -
Page 4: Installation And Maintenance
PRODUCT SPECIFIC SAFEGUARDS • Be sure the air pump itself is not submersed in This reduces friction loss within the tubing itself. water. The air pump air filter needs to be cleaned regularly to prevent the pump becoming • The air pump is designed to be used in garden clogged with dust, causing the airflow to reduce. - Page 5 AIR PUMP INSTRUCTION MANUAL It is also recommended that the air pump should NOTE: These one-directional check valves require be at least 6Ft/2m away from the water’s edge; installation in the correct direction (“IN”= Inlet this ensures that there is no intake of moisture. side “OUT”= Outlet side).
- Page 6 CHANGING DIAPHRAGMS If the air flow on the pump has decreased or if there is a “ticking” sound coming from the air pump, the unit must be turned off immediately. This is typically a symptom of the rubber diaphragms wearing out and needing to be replaced. To do this, it is necessary to disassemble the internals of the air pump.
- Page 7 AIR PUMP INSTRUCTION MANUAL 4. Now loosen and remove the nuts on either end of rubber diaphragms. 5. Swing the metal arms that hold the magnet, away from the rubber diaphragms. Release both of the rubber diaphragms from the plastic frame by applying light pressure to the edge of rubber, to fully release them from groove.
- Page 8 10. Set the rubber diaphragm and magnet assembly back onto the base of air pump. Now reinstall Philips screws that hold the magnet and diaphragm assembly to the bottom portion of plastic casing. 11. The power cable should fit snugly back into the recesses of the plastic casing. Do not allow it to be pinched. 12.
-
Page 9: Parts Breakdown
AIR PUMP INSTRUCTION MANUAL PARTS BREAKDOWN AVAILABLE REPLACEMENT PARTS DESCRIPTION REPLACEMENT DIAPHRAGM COMPLETE ASSEMBLY 11HZ975 11HZ976 REPLACEMENT AIR FILTER CARTRIDGE ORDER ON REQUEST ORDER ON REQUEST REPLACEMENT AIR LINE CHECK VALVE, 2 PACK Hydropro AIR STONE 2" SPHERE 03PA307 Hydropro AIR TUBING 3/16" X 300' 03PA308 V I S I T A Q U A T E C E Q U I P M E N T . -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM REASON SOLUTION Check that the plug on power cable is connected No Power to power and confirm that power point is working. Bad Motor Replace the air pump (if applicable). PUMP NOT WORKING Inspect the entire length of the air pump cable Damaged Cable and look for cuts or damage resulting in exposed copper wire. -
Page 11: Limited Warranty
• Warranty claims caused by installation or servicing faults will not be covered. • It is the customer’s responsibility to return the faulty appliance for any warranty claim to Aquatec. • For any warranty to be valid, an original proof of purchase must be provided. - Page 12 HPRO Air Pump Z2010_Z4010 Instructions.indd 12 22/2/19 11:07 am...
