Fresh-r Compac On-the-Wall Installation Manual

Hide thumbs Also See for Compac On-the-Wall:
Table of Contents

Advertisement

Quick Links

Download this manual

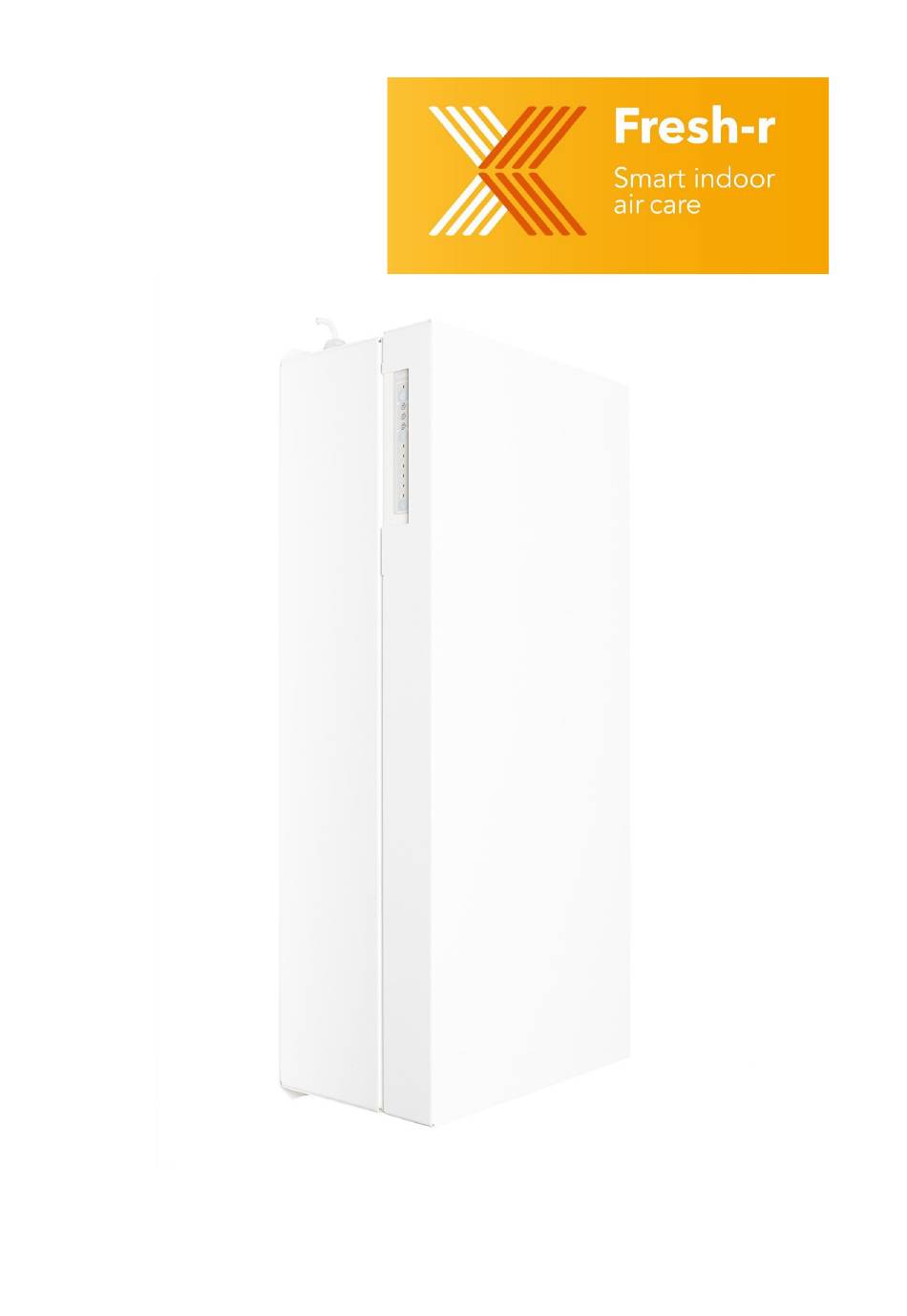

Fresh-r Compac
On-the-wall FFB
Installa�on Manual
Installa�on Manual Fresh-r Compac On-the-wall FFB v1.0
Page |
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compac On-the-Wall and is the answer not in the manual?

Questions and answers

Related Manuals for Fresh-r Compac On-the-Wall

Summary of Contents for Fresh-r Compac On-the-Wall

  • Page 1 Fresh-r Compac On-the-wall FFB Installa�on Manual Installa�on Manual Fresh-r Compac On-the-wall FFB v1.0 Page |...

  • Page 2: Table Of Contents

    Fresh-r Compac. Before star�ng assembly, please read this manual carefully. The manufacturer Vaven�s B.V. is not liable for the installa�on of the Fresh-r or incorrect opera�on of the Fresh-r as a result of an incorrect installa�on. The Fresh-r complies with all applicable CE direc�ves. If you have any ques�ons, please contact your supplier or Fresh-r via support@fresh-r.eu.

  • Page 3: Symbols

    • diamond core drill For the fixing screws of the Fresh-r, use 8 mm drill bits for a stone wall. Wood should be pre- • drilled with a 3 mm drill bit. In the case of thin sheet material such as plasterboard, wooden beams with sufficient load-bearing capacity must be placed behind these sheets.

  • Page 4: Installa�On Fresh-R

    120 cm from the floor, but at least 10 cm from the floor and ceiling. Please note that you can s�ll remove the door and access the controls. Do not place the Fresh-r behind a curtain or directly above a chair or sofa.

  • Page 5: Fresh-R Unit Prepara�On

    Cut both pipes to size. The required length is the en�re wall thickness (inner wall + cavity + outer wall) + 30 mm (10 mm on the outside + 20 mm inser�on in Fresh-r). With a wall thickness of 300 mm, the correct length for the pipes is 300 + 30 = 330 mm.

  • Page 6: Moun�Ng The Fresh-R Unit

    In the case of a stone wall, first place the raw plugs in the drill holes. • Take the Fresh-r and carefully slide it with the two tubes through the two holes all the way in. • When screwing the Fresh-r in place, make sure that the four screw holes are at the height of the drill holes.

  • Page 7: Moun�Ng The Outside Grill

    A�er about one minute, three lights will light up on the control panel at the top le� on the outside, see the adjacent image. If the Fresh-r does not start up and no lights come on, check the power supply. If, a�er checking, you are sure that the Fresh-r is correctly connected to the power supply, but s�ll does not work, switch off...

  • Page 8: Connec�Ng To Wi-Fi

    1. To connect the Fresh-r to Wi-Fi, first switch the Fresh-r off and on again. This can be done via the on/off buton that is located on the inside at the top le�. Then go to your laptop/tablet/PC.

  • Page 9: Installa�On Checklist

    13. To view the data, go to www.fresh-r.me. Log in with the username and password provided by Fresh-r. Don't have a username and password yet? Request it at support@fresh-r.eu 14. A�er the connec�on is established, you will no longer find Fresh-R AP….. or Vaven�s AP ..in the list of Wi-Fi connec�ons on your laptop/tablet/PC.
  • Page 10 • by pressing buton A again, the Fresh-r returns to automa�c mode. A�er an hour and a half, the Fresh-r automa�cally returns to automa�c mode. On/Off switch • This switch should only be used before cleaning or maintenance to switch off the Fresh-r.

  • Page 11: Maintenance

    For the best support, your Fresh-r should be connected to Wi-Fi. Always include the serial number of the Fresh-r with contact. This can be found on the silver s�cker on the inside of the Fresh-r and starts with E232.

  • Page 12: Air Flow Control

    CO and RH sensors with its smart control are always included in the Fresh-r and are situated in outgoing air stream. The cold side of the fresh-r is completely The automatic mode can manually be overruled separated from the warm side.

  • Page 13: Declara�On Of Conformity

    Brand name: Fresh-r Model/type: Compac On-the-wall Is in conformity with the following Directives 2006/95/EC Low Voltage (LVD) The product bears the CE label Woen van Andel (Managing Director) Enschede, August 1st, 2021 Installa�on Manual Fresh-r Compac On-the-wall FFB v1.0 Page |...

  • Page 14: Drawings And Dimensions

    191,50 19,50 UNLESS OTHERWISE SPECIFIED: FINISH: DEBUR AND DO NOT SCALE DRAWING REVISION DIMENSIONS ARE IN MILLIMETERS BREAK SHARP SURFACE FINISH: EDGES TOLERANCES: LINEAR: ANGULAR: NAME SIGNATURE DATE TITLE: DRAWN 29-03-23 Compac OTW FFB CHK'D APPV'D MATERIAL: DWG NO. WEIGHT: SCALE: SHEET 1 OF 1...
