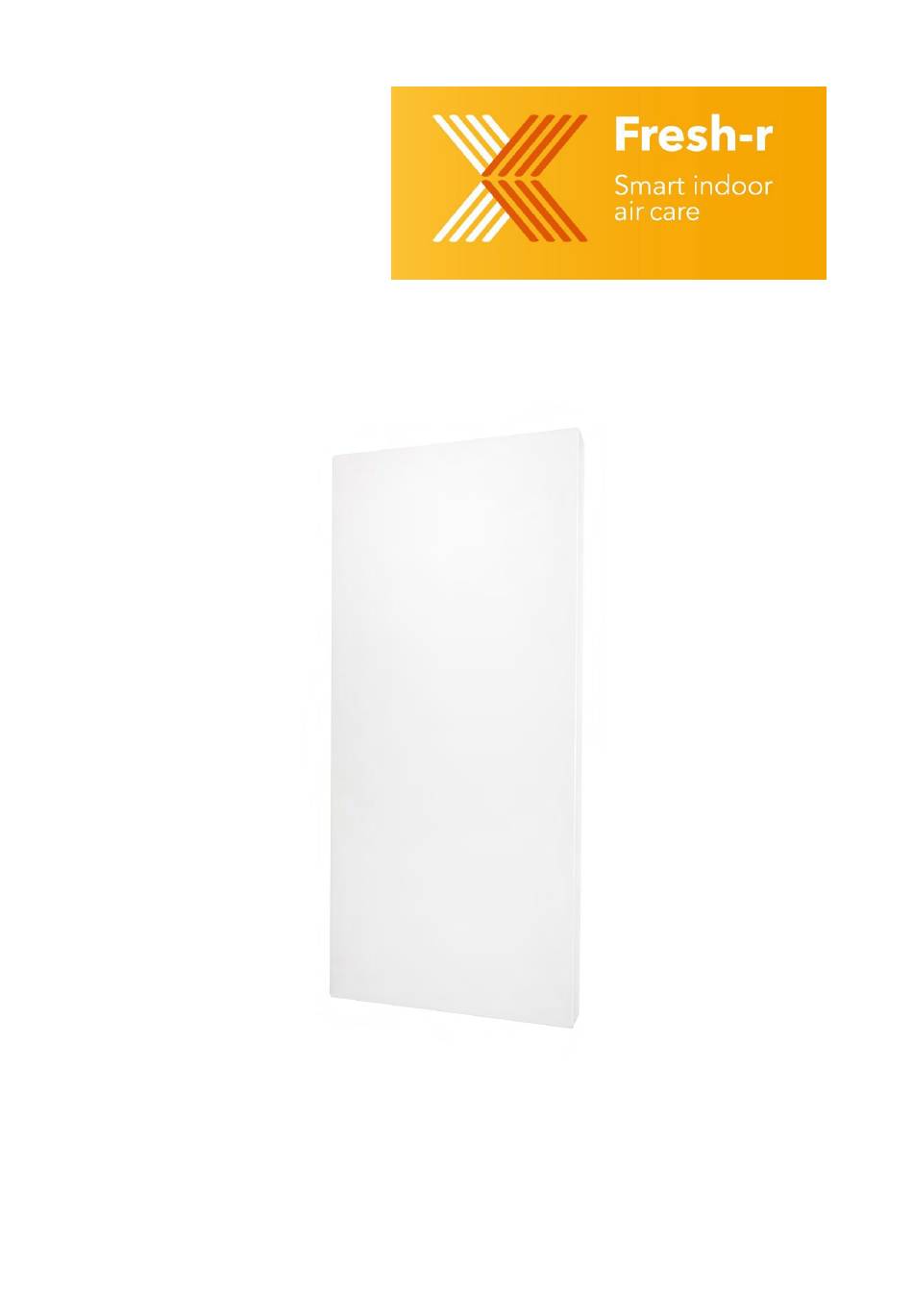

- Page 1 Fresh-r Compac In-the-wall FFB Installa�on Manual Installa�on Manual Fresh-r Compac In-the-wall FFB v1.0 Page | 1...
- Page 2 Fresh-r Compac. Before star�ng assembly, please read this manual carefully. The manufacturer Vaven�s B.V. is not liable for the installa�on of the Fresh-r or incorrect opera�on of the Fresh-r as a result of an incorrect installa�on. The Fresh-r complies with all applicable CE direc�ves. If you have any ques�ons, please contact your supplier or Fresh-r via support@fresh-r.eu.
- Page 3 Risk of electric shock or electrocu�on. Switch off the mains electricity supply in the central distribu�on box before preparing the electricity. • The person responsible for installing the Fresh-r should be familiar with local building regula�ons. 3. Main components •...
- Page 4 For the fixing screws of the Fresh-r, use 8 mm drill bits for a stone wall. Wood should be pre- • drilled with a 3 mm drill bit. In the case of thin sheet material such as plasterboard, wooden beams with sufficient load-bearing capacity must be placed behind these sheets.
- Page 5 Deburr and sand the ends of the pipes. • Push the pipes into the two connec�on points at the rear of the Fresh-r. The pipes are correctly placed when they are pushed 20 mm into the Fresh-r un�l they can go no further.
- Page 6 In the case of a stone wall, first place the raw plugs in the drill holes. • Take the Fresh-r and carefully slide it with the two tubes through the two holes all the way in. • When screwing the Fresh-r in place, make sure that the four screw holes are at the height of the drill holes.
- Page 7 A�er about one minute, three lights will light up on the control panel at the top le� on the outside, see the adjacent image. If the Fresh-r does not start up and no lights come on, check the power supply. If, a�er checking, you are sure that the Fresh-r is correctly connected to the power supply, but s�ll does not work, switch off...
- Page 8 1. To connect the Fresh-r to Wi-Fi, first switch the Fresh-r off and on again. This can be done via the on/off buton that is located on the inside at the top le�. Then go to your laptop/tablet/PC.
- Page 9 13. To view the data, go to www.fresh-r.me. Log in with the username and password provided by Fresh-r. Don't have a username and password yet? Request it at support@fresh-r.eu 14. A�er the connec�on is established, you will no longer find Fresh-R AP….. or Vaven�s AP ..in the list of Wi-Fi connec�ons on your laptop/tablet/PC.
- Page 10 • by pressing buton A again, the Fresh-r returns to automa�c mode. A�er an hour and a half, the Fresh-r automa�cally returns to automa�c mode. On/Off switch • This switch should only be used before cleaning or maintenance to switch off the Fresh-r.
- Page 11 For the best support, your Fresh-r should be connected to Wi-Fi. Always include the serial number of the Fresh-r with contact. This can be found on the silver s�cker on the inside of the Fresh-r and starts with E232.
- Page 12 Runs on 220 Volt, with average use below 7 Watt, the same as one led lamp. The outside wall. Fresh-r can be installed both on as well as in the wall. For on the wall installation, only two holes of 130 mm need to be drilled.
- Page 13 RH sensors with its smart control are always included in Circular Design the Fresh-r and are situated in outgoing air stream. The automatic mode can manually be overruled for The design of the Fresh-r takes into account the 90 minutes by increasing / decreasing fan speed.
- Page 14 Fresh-r Model/type: Compac In-the-wall Is in conformity with the following Directives 2006/95/EC Low Voltage (LVD) The product bears the CE label Woen van Andel (Managing Director) Enschede, August 1st, 2021 Installa�on Manual Fresh-r Compac In-the-wall FFB v1.0 Page | 13...
- Page 15 57,50 UNLESS OTHERWISE SPECIFIED: FINISH: DEBUR AND DO NOT SCALE DRAWING REVISION DIMENSIONS ARE IN MILLIMETERS BREAK SHARP SURFACE FINISH: EDGES TOLERANCES: LINEAR: ANGULAR: NAME SIGNATURE DATE TITLE: DRAWN 01-05-23 GGIK Compac ITW FFB CHK'D APPV'D MATERIAL: DWG NO. WEIGHT: SCALE: SHEET 1 OF 1...
