ICP DAS USA GW-7243D Quick Start

Download this manual

Packing List

In addition to this guide, the package includes the following items:

GW-7243D-G * 1

Screw Driver * 1

Technical Support

service@icpdas.com

www.icpdas.com

 For Desktop Web

GW-7243D Quick Start

Plastic Rail * 1

Wire Terminal * 32

Resources

How to search for drivers, manuals and

spec information on ICP DAS website.

 For Mobile Web

Model Name

v2.0, Oct 2024

COM Cable

(CA-0910) * 1

Need help?

Do you have a question about the GW-7243D and is the answer not in the manual?

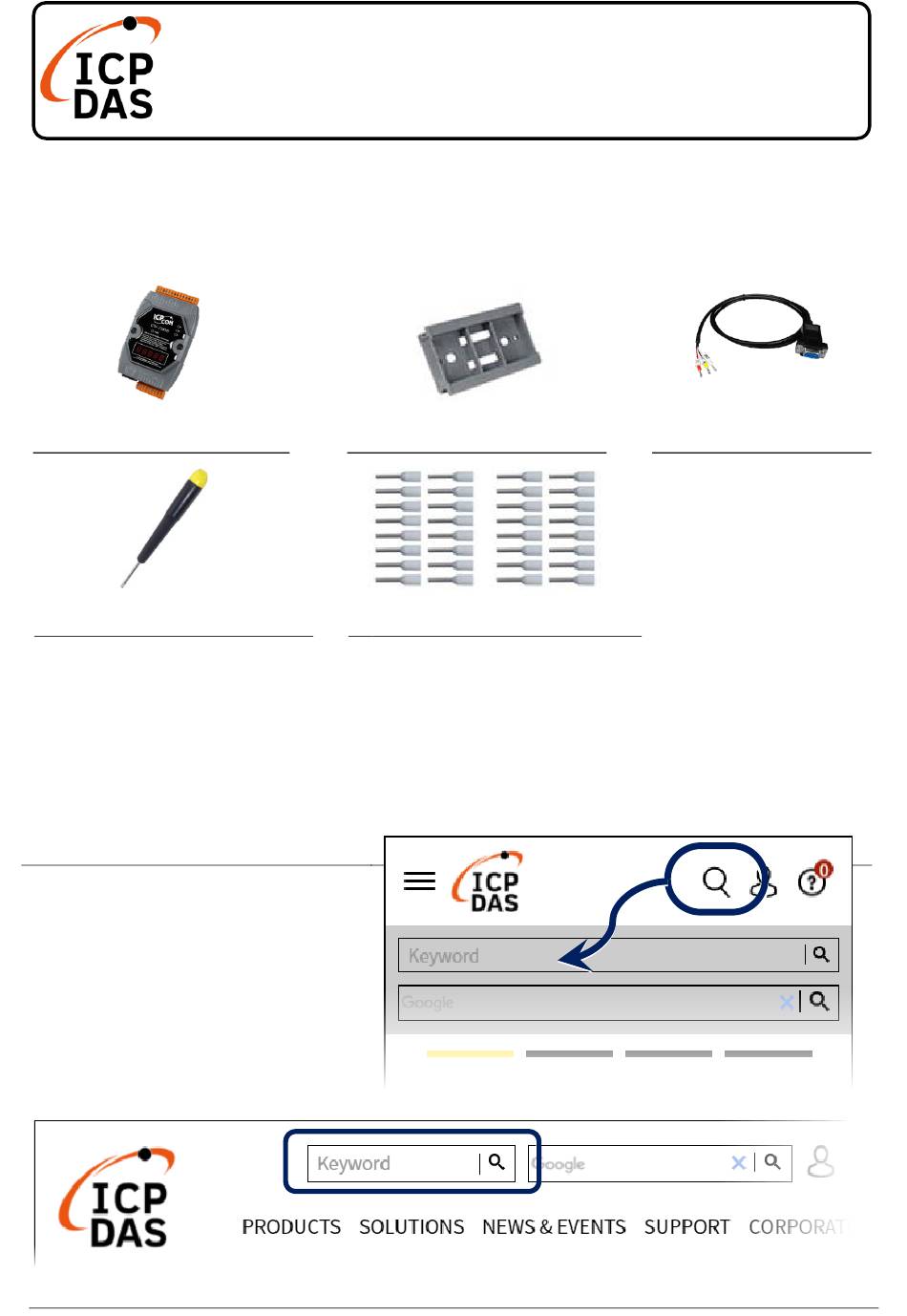

Page 1 GW-7243D Quick Start v2.0, Oct 2024 Packing List In addition to this guide, the package includes the following items: COM Cable GW-7243D-G * 1 Plastic Rail * 1 (CA-0910) * 1 Screw Driver * 1 Wire Terminal * 32 Resources...
Page 2 GW-7243D module's cover and adjust the internal J3 jumper to the required position (J3 is set to "Enable" by default). Active the J3 Inavtive the J3 resistor (default) resistor The default network setting of the GW-7243D is shown below. IP: 192.168.255.1 Mask: 255.255.0.0 Gateway: 192.168.0.1...
Page 3 Step 2: Setting up GW-7243D module 1. Before configuring the GW-7243D, turn it off. Then connect the INIT* pin with the GND pin of the GW-7243D as following picture. 2. Connect an available COM port of PC with the COM1 of...
Page 4 Select the COM port of PC which is connected with the COM1 of GW-7243D, and then click the “Connect” button. Step 4: Configure the module parameters After connecting with the GW-7243D, you can modify the CAN/COM/Ethernet/DeviceNet parameters of the module. Detail information about how to configure module parameters,...
