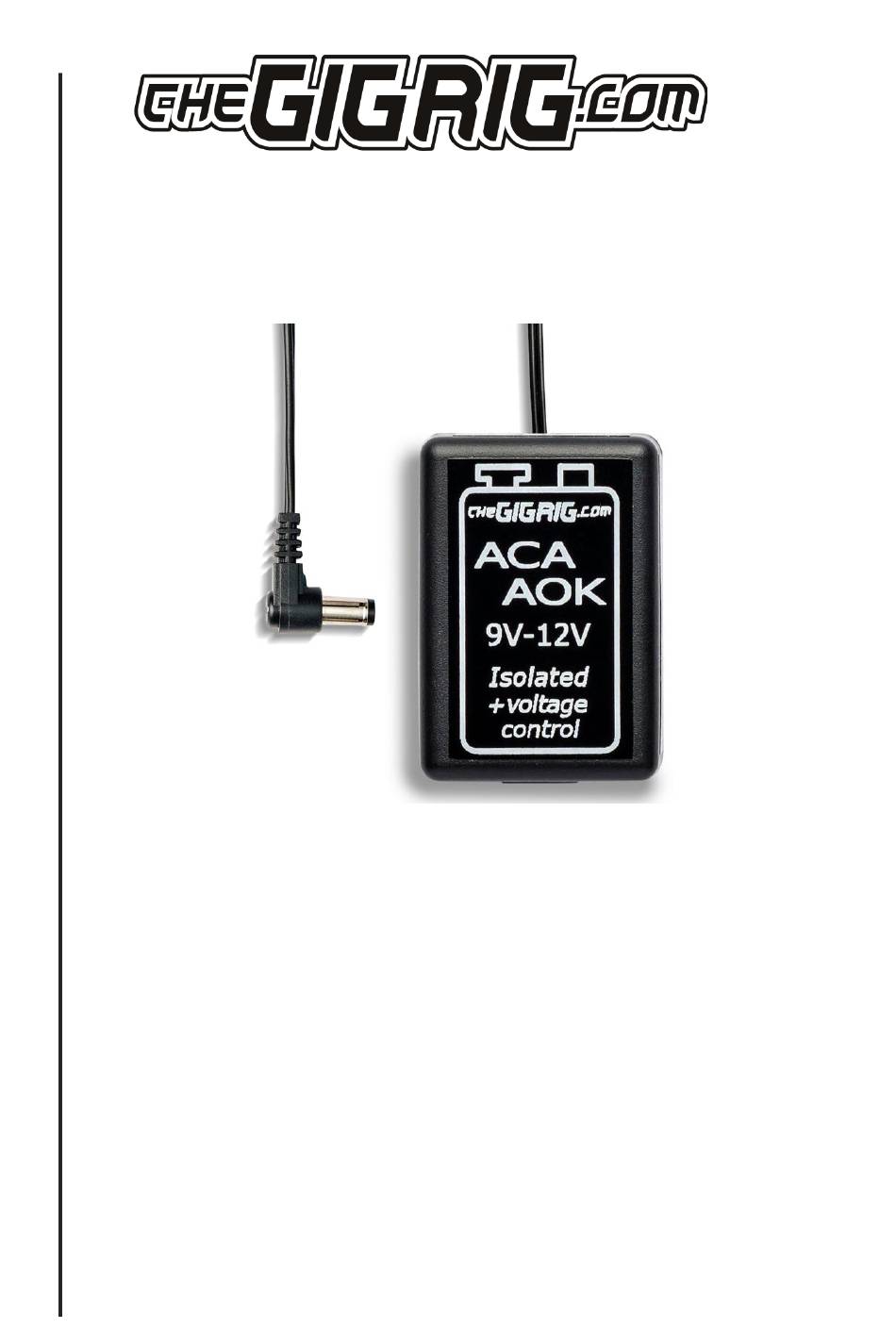

- Page 1 ACA-AOK MANUAL TheGigRig Ltd ACA-AOK, February 2025...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction 2. Instructions 3. Short Circuit & Temperature Protection 4. Input Protection 5. Safety 6. Technical Specifications 7. Warranty The GigRig Ltd ACA-AOK Manual, February 2025... -
Page 3: Introduction
1. INTRODUCTION The ACA-AOK power supply conditioner is designed for pedals that require a 12V DC input, such as the ACA series of BOSS pedals (e.g., the CE-2 Chorus). While these pedals use a 9V internal battery, the DC input features a diode that drops the voltage to 6.5V when powered with a standard 9V DC supply. -
Page 4: Input Protection
The ACA-AOK is equipped with polarity input protection. In the event of a reverse voltage (center-positive) being supplied to the input, the ACA-AOK will automatically short the input and shut down the main supply. This built- in protection ensures that the ACA-AOK, as well as any connected pedals, are safeguarded from damage. -
Page 5: Warranty
In no event will The GigRig be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. The GigRig disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
