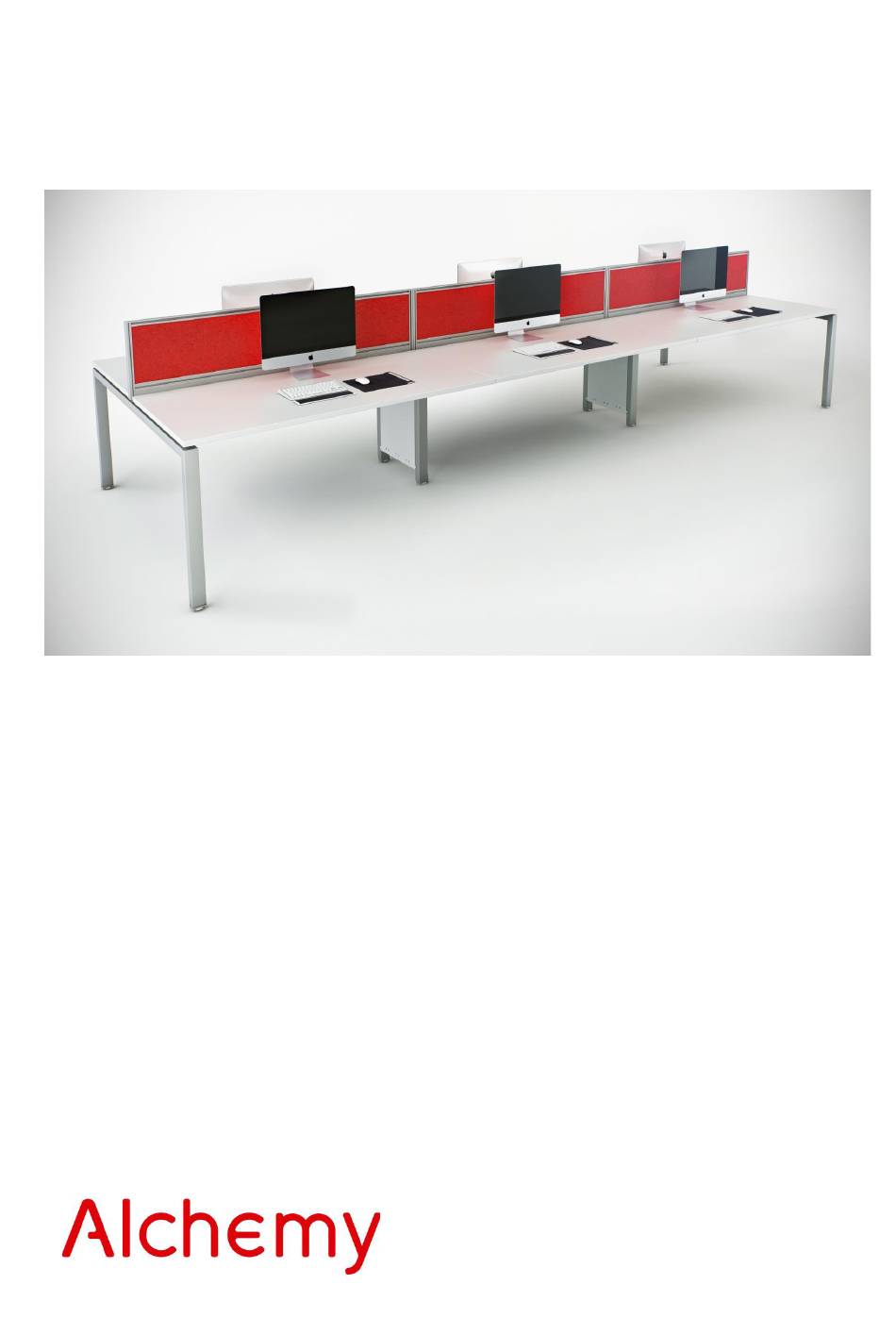

- Page 1 Product Manual with specifiers guide & O & M information Evolv desk & bench Issue 2: November 2020...
-
Page 2: Table Of Contents
Contents Product Overview Specification Standard Extent of range Standard Finishes Cable Management Product Performance Standards Environmental Statement Well Statement Installation • Desk • Bench • Height Adjustable Insert Kits • End Clad Panels • My Storage • Glass Shelf Relocation Maintenance Warranty Contact Details... -
Page 3: Product Overview
Evolv can be fitted with fixed tops or sliding top bridges as an option, and the beams support an optional large capacity central drop down cable tray, which when used in combination with the mass cable riser, provides excellent cable management. -
Page 4: Specification
Frame - Evolv frames are constructed from a range of medium to heavy gauge mild steel tubular and sheet sections, to create a rigid and robust desk under structure. The leg frame cross section is 60mm x 40mm. - Page 5 Specification Alternatively the back edge can be machined with cable scallops...
- Page 6 Specification or 80mm Dia. cable ports can be positioned through the top.
- Page 7 Specification Tops will have the grain running their length. There are a wide range of top finish options. Tops are held securely to the frame with M6 allen head bolts. Cable Management - The cable tray is suspended between beams on the underside of the work surface &...
-
Page 8: Standard Extent Of Range
Standard Extent of Range... - Page 9 Standard Extent of Range...
- Page 10 Standard Extent of Range Meeting Ends 1600 1600 1280 1400 Desk Bench...
- Page 11 Standard Extent of Range Desk Add Ons Modesty Panel Reception Counter...
-
Page 12: Standard Finishes
White For required finish, please suffix code with MA – Maple, AO – Alchemy Oak, RO – Rye Oak, BE – Beech, WL – Walnut, WH – White, GR – Grey. All Carcasses are 18mm thick with modular tops 25mm thick MFC with square edge. Standard specification will match the edge finish with the top finish. -
Page 13: Cable Management
Cable Management Modular central cable tray. 1000 1200 1400 1600 1800 Single desk cable tray. 1000 1200 1400 1600 1800 Clad cable riser Magnetic cable riser. attaches to desk/bench leg. - Page 14 Cable Management Vertical cable spiral Vertical cable wrap...
- Page 15 Cable Management Below Desk - 2 gang power socket, master switched and individually fused (3.15A) Below Desk - 4 gang power socket, master switched and individually fused (3.15A) Above Desk - silver & grey desk top unit, 2 power, inc. 800mm lead & desk clamp Above desk - silver &...
-
Page 16: Product Performance Standards
Performance Standards All furniture has been designed to conform to the dimensional, strength & stability requirements of British & European performance standards. BS EN 527 – 1: 2011 Dimensions BS EN 527 – 2: 2002 Mechanical Safety Requirements BS EN 527 – 3: 2003 Strength &... -
Page 17: Environmental Statement
% by mass & deconstruction. deconstruction - % by mass Evolv Calculations: Based on a 4 person back to back bench 1600 x 800 x 25 MFC top – Weight = 21.12 Kg x 4 = 84.48 Kg. 65% recycled content by weight = 54.6 Kg. -
Page 18: Well Statement
Well Statement The WELL Building Standard is a performance based system for measuring, certifying & monitoring features of the built environment that impact human health & wellbeing, through air, water, nourishment, light, fitness, comfort & mind. WELL was originated in the U.S.A & is now being adopted throughout the world. This statement outlines the furniture related features relating to the Essence product range &... -
Page 20: Installation
Installation EVOLV DESK with fixed top... - Page 21 Installation EVOLV DESK with fixed top & return BEAM TO BEAM BRACKET • INSERT END OF RETURN TELESCOPIC BEAM INTO END LEG, A RUBBER MALLET MAY BE REQUIRED. • SECURE TOP HAT WITH BOLTS PROVIDED & TIGHTEN TO LOCK BEAM TO LEG.
-
Page 22: Desk
Installation EVOLV DESK with fixed top & modesty panel • FASTEN ‘L’ BRACKETS TO UNDERSIDE OF DESK WITH M6 MACHINE SCREWS INTO M6 INSERTS IN UNDERSIDE OF DESK TOP. • POSITION MODESTY PANEL AGAINST BRACKETS & FASTEN PANEL TO BRACKETS USING M6 MACHINE SCREWS INTO M6 INSERTS IN BACK OF MODESTY PANELS. - Page 23 Installation EVOLV DESK with sliding top...
-
Page 24: Bench
Installation EVOLV BENCH with fixed top... - Page 25 Installation EVOLV BENCH with sliding top...
-
Page 26: Height Adjustable Insert Kits
Installation EVOLV BENCH height settable insert kit... - Page 27 Installation EVOLV BENCH crank height adjustable insert kit...
- Page 28 Installation EVOLV BENCH electric height adjustable insert kit...
- Page 29 Installation EVOLV BENCH electric height adjustable insert kit...
-
Page 30: End Clad Panels
Installation EVOLV BENCH double end clad panels OUTER PANEL INNER PANEL INNER PANEL 1 – fit height adjusters to steel batons 2 – loosely fasten steel battens to inner panel HEIGHT ADJUSTER STEEL BATTEN 3 – offer up to leg frame, push panel inner... - Page 31 Installation EVOLV BENCH single end clad panel OUTER PANEL 1 – fit height adjusters to steel batons 2 – loosely fasten steel battens to outer panel HEIGHT ADJUSTER STEEL BATTEN 3 – offer up to leg frame, push panel outer...
-
Page 32: My Storage
Installation EVOLV BENCH My Storage 1 – fasten the ‘U’ brackets to the storage top. The bolts feed through the top from the underside (inside the storage unit). 2 – feed the short end leg onto the brackets, insert grub screws &... - Page 33 Installation EVOLV BENCH My Storage 3 – attach beam to storage leg & bolt down the worktop support bracket. Attach the worksurface.
-
Page 34: Glass Shelf
Installation EVOLV BENCH My Storage Glass Shelf 1 – If a glass shelf has been specified unwrap the support posts & fasten the posts to the storage top. The bolts feed through the top from the underside (inside the storage unit). - Page 35 Installation EVOLV BENCH My Storage Glass Shelf 2– align holes in glass shelf with posts, feed through bolts & tighten to fix shelf in position.
-
Page 36: Relocation
Relocation All furniture should be picked up & NOT dragged. Linked items should be separated before relocating. All fixings are reusable. Assembly instructions form part of this document. -
Page 37: Maintenance
Maintenance Evolv is considered to be maintenance free, however the following should be observed during the products lifetime:- Frames - Where cleaning of the frame is required a mild detergent solution should be used. The use of harsh abrasives, acids, alkalis or bleaching products is not recommended. - Page 38 Maintenance...
-
Page 39: Warranty
& installed correctly as per Alchemy installation & relocation instructions. Alchemy reserve the right to refuse replacement or repair if we feel that the product has been abused or has been accidently damaged by another party. Alchemy also reserves the right to attempt to repair any damaged or faulty products before a decision is made to replace them. -
Page 40: Contact Details
Contact Details Alchemy Furniture Limited The Office Rye Wharf, Harbour Road Rye, East Sussex, TN31 7TE Showroom: 61 – 63 Church Street Caversham, Reading Berkshire, RG4 8AX Tel: 01424 839100 Fax: 01797 224877 Web: www.alchemyfurniture.co.uk E-mail: sales@alchemyfurniture.co.uk...
