- Page 1 Product Manual with specifiers guide & O & M information Involv work tables Issue 1: June 2021...
-
Page 2: Table Of Contents
Contents Product Overview Specification Standard Extent of range Standard Finishes Cable Management Product Performance Standards Environmental Statement Well Statement Installation Relocation Maintenance Warranty Contact Details... -
Page 3: Product Overview

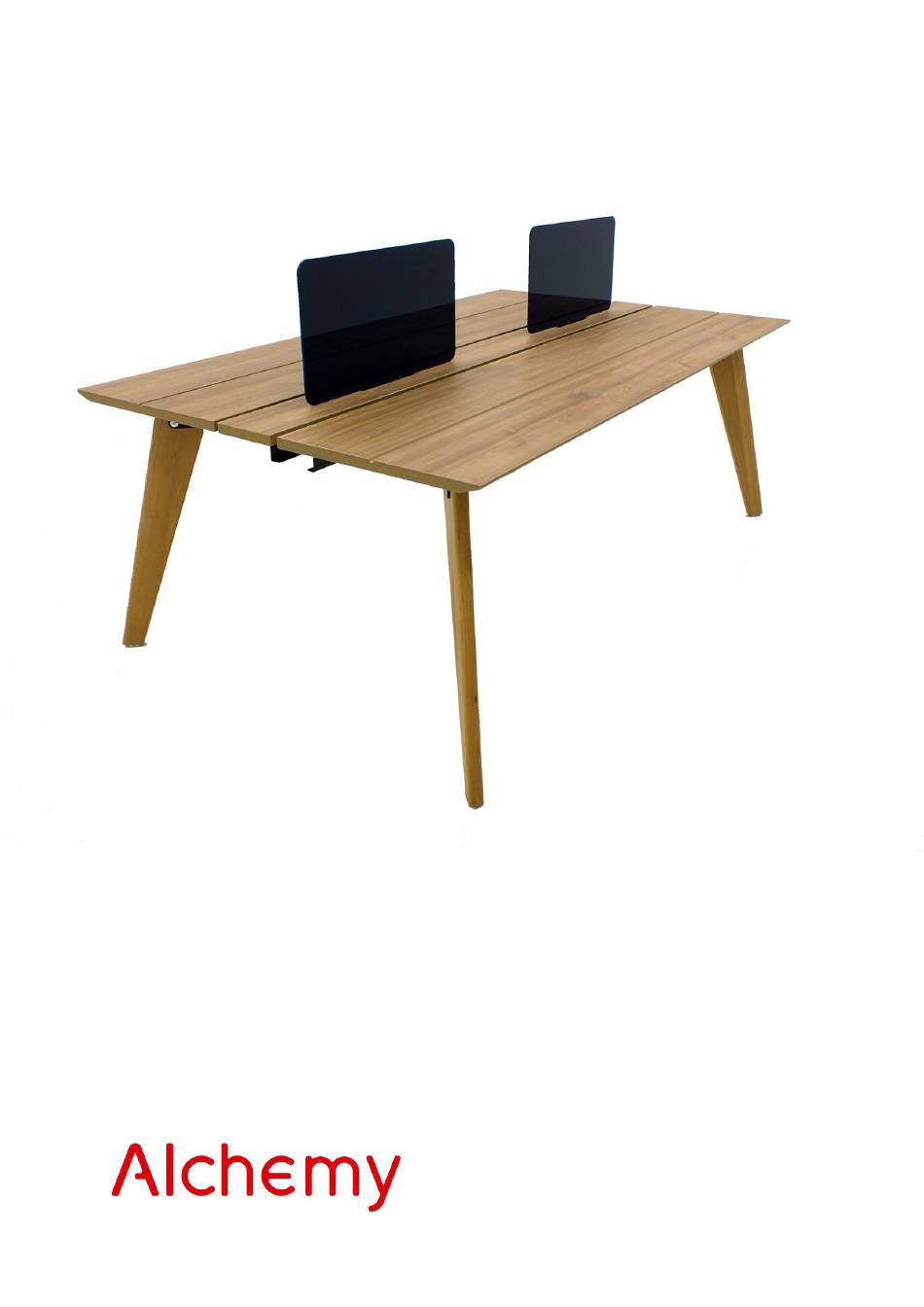

Product Overview Involv worktable bridges the gap between a table & touch down workstation. In fact it is both & can be adapted by the users dependent on their task & work style. The smart worksurface creates a visual statement with a series of longitudinal grooves & leading edge chamfer. -
Page 4: Specification
The integral cable beam is from 1.8mm stell sheet. Legs - Involv legs are of solid oak with a clear lacquer finish or black stained finish & are supplied in a knock down format and boxed for production, protection & ease of transport. -
Page 5: Standard Extent Of Range
Standard Extent of Range Involv Work Table Programme Meeting Tables – 4 Options Involv Rectangular Three Piece Top 2000 x 1200 x 740 2400 x 1200 x 740 Involv Rectangular Six Piece Top 4000 x 1200 x 740 4800 x 1200 x 740... -
Page 6: Standard Finishes
Standard Finishes 25mm top chamfer edge detail Rye Oak Verade Oak Portofino Cherry White Light Grey We have experience of supplying alternative MFC finishes, laminates such as Fenix, compact laminate, birch ply, birch ply with laminate face, birch ply with lino face & Veneers. Please contact our sales team to discuss your requirements. - Page 7 Standard Finishes Plug In Fabric screen- available in Gabriel Hush fabric range. 600mm wide x 330mm high Plug In Acrylic screens - available in various colours from the standard Perspex colour chart. 600mm wide x 330mm high...
-
Page 8: Cable Management
Cable Management Vertical zipped cable fabric shroud Vertical cable spiral Cable Port Below Desk - 2 gang power socket, master switched and individually fused (3.15A) Below Desk - 4 gang power socket, master switched and individually fused (3.15A) - Page 9 Cable Management Above desk - silver & grey desk top unit, 2 power & 1 twin USB fast charger, inc. 800mm lead & desk clamp Black, White & Silver In Table, 1 power & 1 twin USB fast charger, inc. 3M lead &...
-
Page 10: Product Performance Standards
Performance Standards All furniture has been designed to conform to the dimensional, strength & stability requirements of British & European performance standards. BS EN 527 – 1: 2011 Dimensions BS EN 527 – 2: 2002 Mechanical Safety Requirements BS EN 527 – 3: 2003 Strength &... -
Page 11: Environmental Statement
% by mass & deconstruction. deconstruction - % by mass Involv WorkTable Calculations: 2400 x 1200 x 25 MFC top – Weight = 47.52 Kg. 65% recycled content by weight = 30.89 Kg. Steel underframe – Weight = 24.9Kg. 55% recycled content by weight = 13.75 Kg. -
Page 12: Well Statement
Well Statement The WELL Building Standard is a performance based system for measuring, certifying & monitoring features of the built environment that impact human health & wellbeing, through air, water, nourishment, light, fitness, comfort & mind. WELL was originated in the U.S.A & is now being adopted throughout the world. This statement outlines the furniture related features relating to the Involve product range &... -
Page 13: Installation
Installation INVOLV – CORNER LEG ASSEMBLY INSTRUCTIONS... - Page 14 Installation INVOLV – INTERMEDIATE LEG ASSEMBLY INSTRUCTIONS...
- Page 15 Installation INVOLV – FRAME & CABLE TRAY ASSEMBLY INSTRUCTIONS Slide the beam onto the crossbars before closing the assembly loop.
- Page 16 Installation INVOLV – TOP ASSEMBLY INSTRUCTIONS The top is supplied in 3 pieces First assemble the 2 outer tops to the frame M6 inserts in the underside of the top align with holes/slots in the leg bracket top plates &...
- Page 17 Installation INVOLV – TOP ASSEMBLY INSTRUCTIONS The central plank is designed to be removable. It is secured in place using the 2x turn knobs supplied. Pass the threaded section through the underframe crossbar into the M6 inserts in the underside of the top.
- Page 18 Installation INVOLV – Fabric Zipped Cable Riser Step 1 - Unzip fabric cable riser & place against inside of leg. Step 2 - Using screws supplied attach cable riser through steel strip into pilot holes in inner leg. Step 3 - Install cables & zip up to hold cables captive in riser.
- Page 19 Installation INVOLV – Plug In Screens The tongue then feeds down into a ‘U’ shaped The screen is profiled with a tongue that feeds into the slot in the worktop. profile at the base of the base of the cable tray.
- Page 20 Installation INVOLV – Desk Top Power Modules Desk top power & data modules have set The cut outs in the cable tray allow the modules locations. mounting clamp to fit around the work top & cables to feed into the cable tray.
-
Page 21: Relocation
Relocation All furniture should be picked up & NOT dragged. Linked items should be separated before relocating. All fixings are reusable. Assembly instructions form part of this document. -
Page 22: Maintenance
Maintenance Involv is considered to be maintenance free, however the following should be observed during the products lifetime:- Frames - Where cleaning of the frame is required a mild detergent solution should be used. The use of harsh abrasives, acids, alkalis or bleaching products is not recommended. - Page 23 Maintenance...
-
Page 24: Warranty
& installed correctly as per Alchemy installation & relocation instructions. Alchemy reserve the right to refuse replacement or repair if we feel that the product has been abused or has been accidently damaged by another party. Alchemy also reserves the right to attempt to repair any damaged or faulty products before a decision is made to replace them. -
Page 25: Contact Details
Contact Details Alchemy Furniture Limited The Office Rye Wharf, Harbour Road Rye, East Sussex, TN31 7TE Showroom: 61 – 63 Church Street Caversham, Reading Berkshire, RG4 8AX Tel: 01424 839100 Fax: 01797 224877 Web: www.alchemyfurniture.co.uk E-mail: sales@alchemyfurniture.co.uk...
